STATOR + CNC MOSFET KIT HON TRX420FA 14-19 (RMS900-107352)

RMSTATORSKU: RMS900107352
No reviews

Price:
Sale price$429.99
Stock:
Only 1 unit left

Description

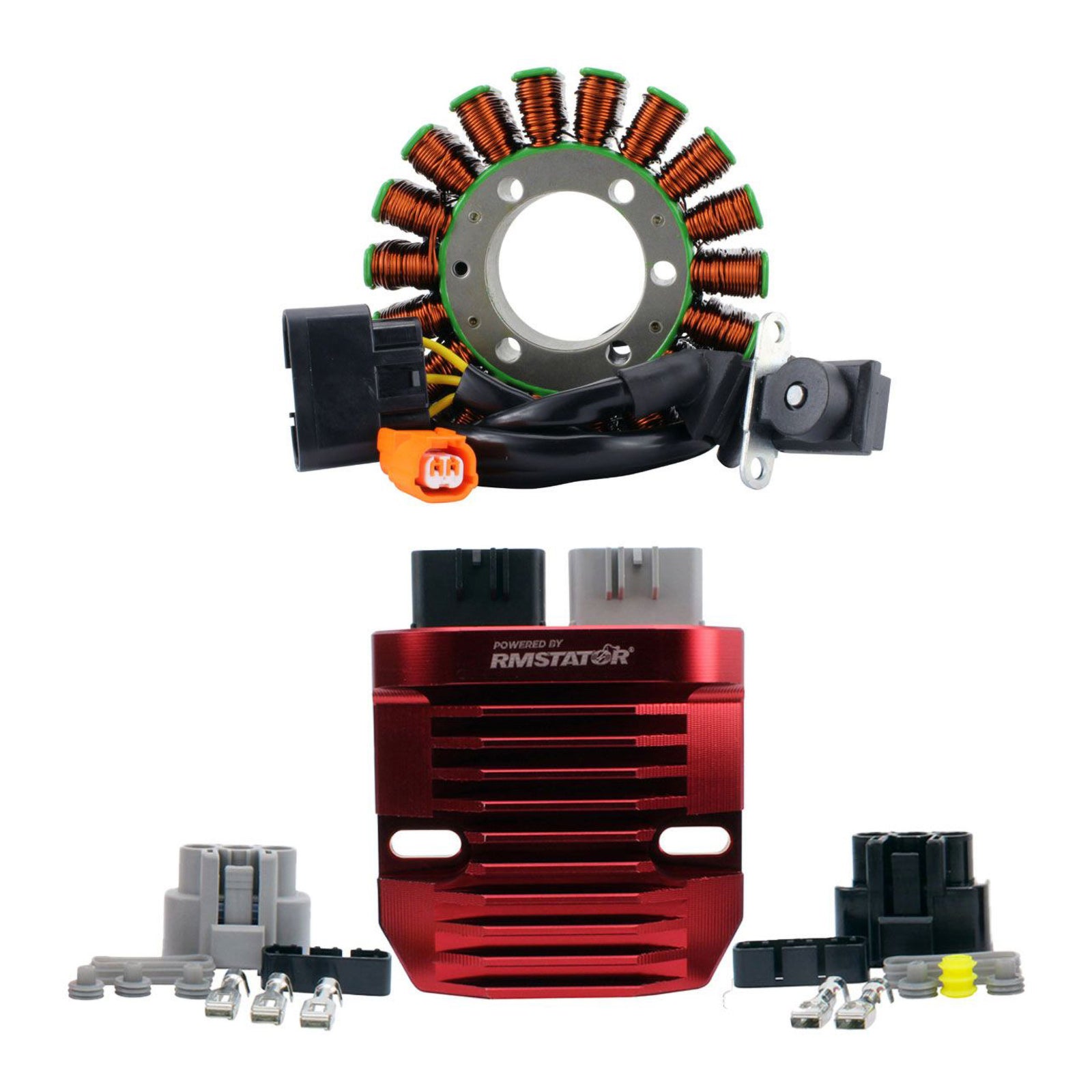

Kit Stator + RMSTATOR Red Machined Aluminum Mosfet Regulator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

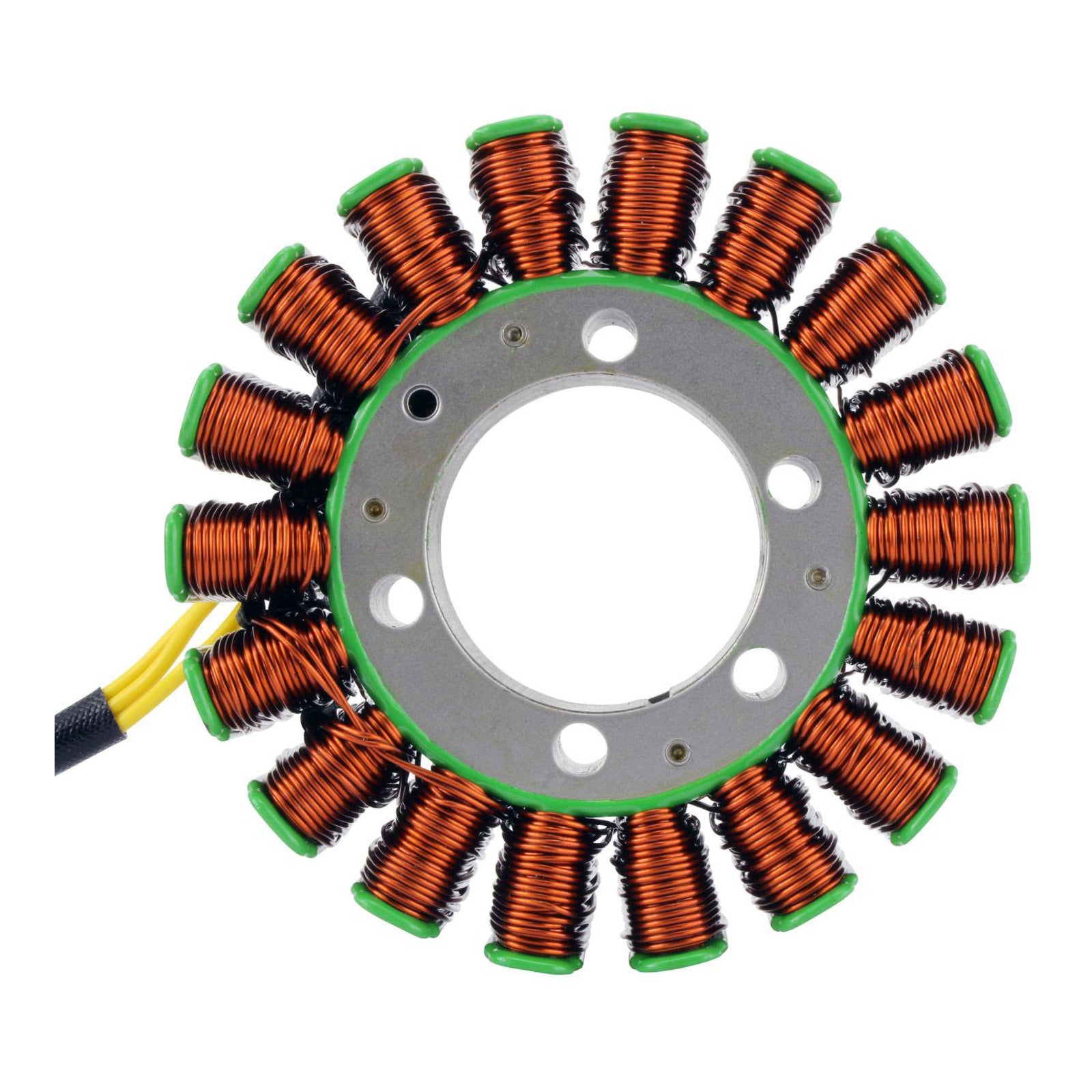

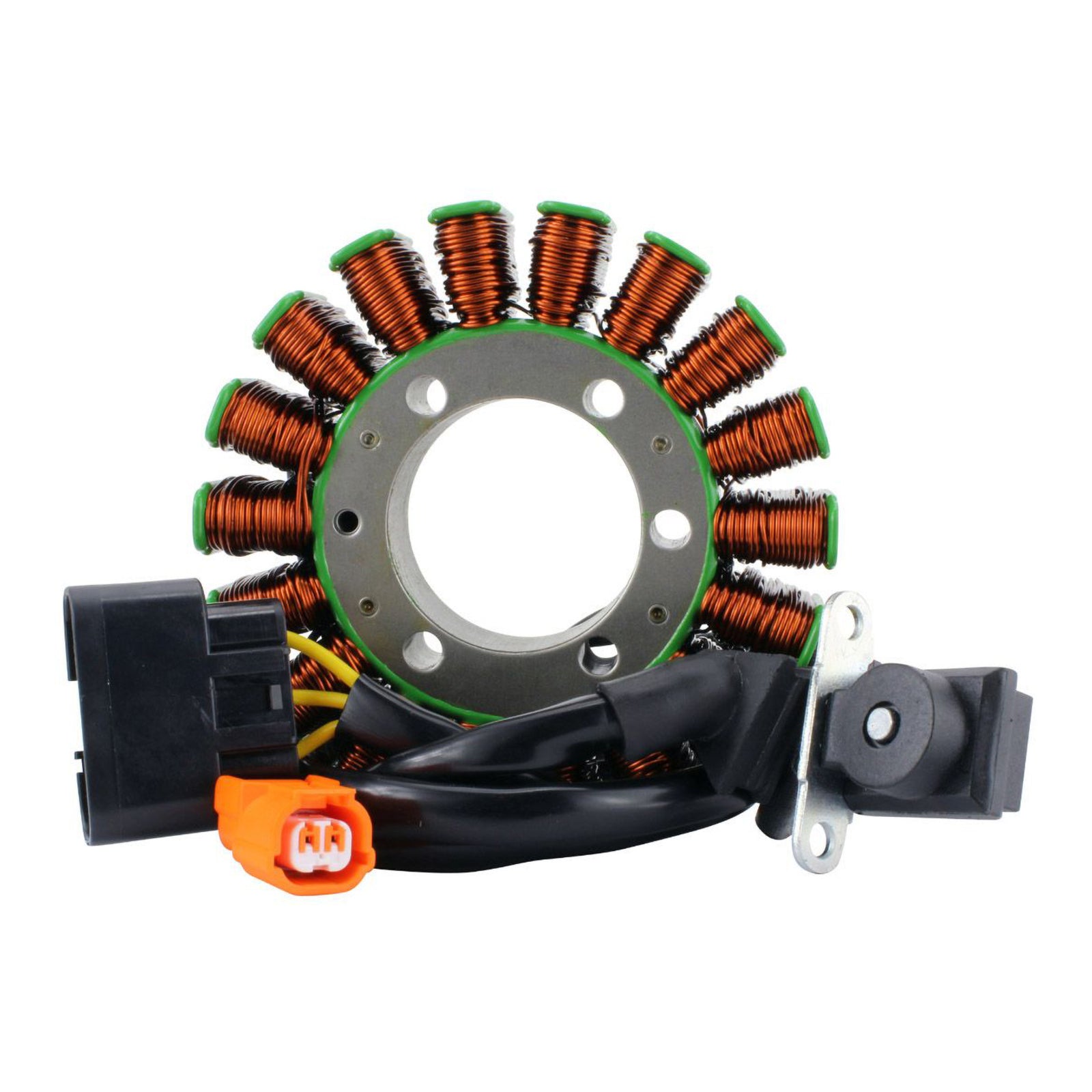

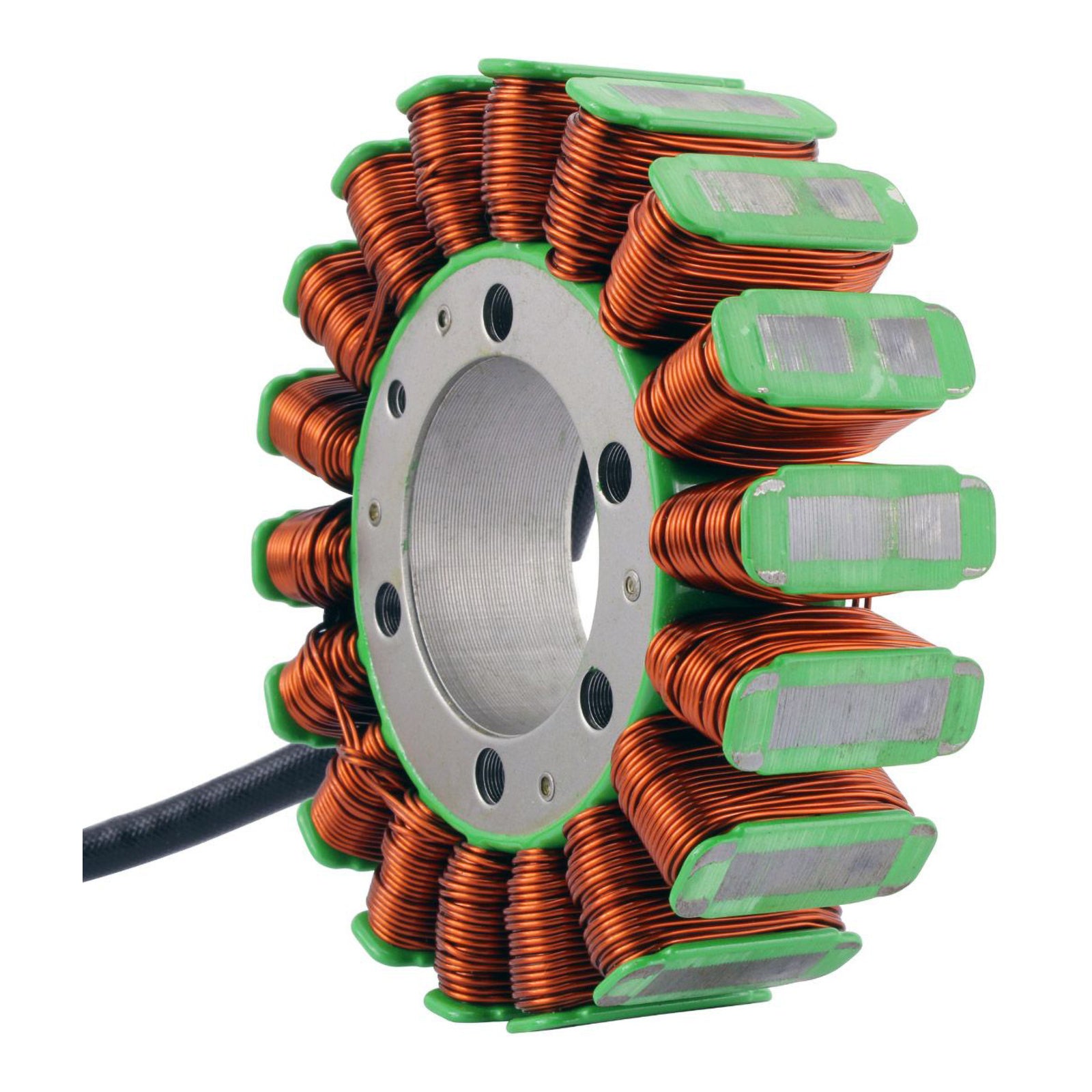

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

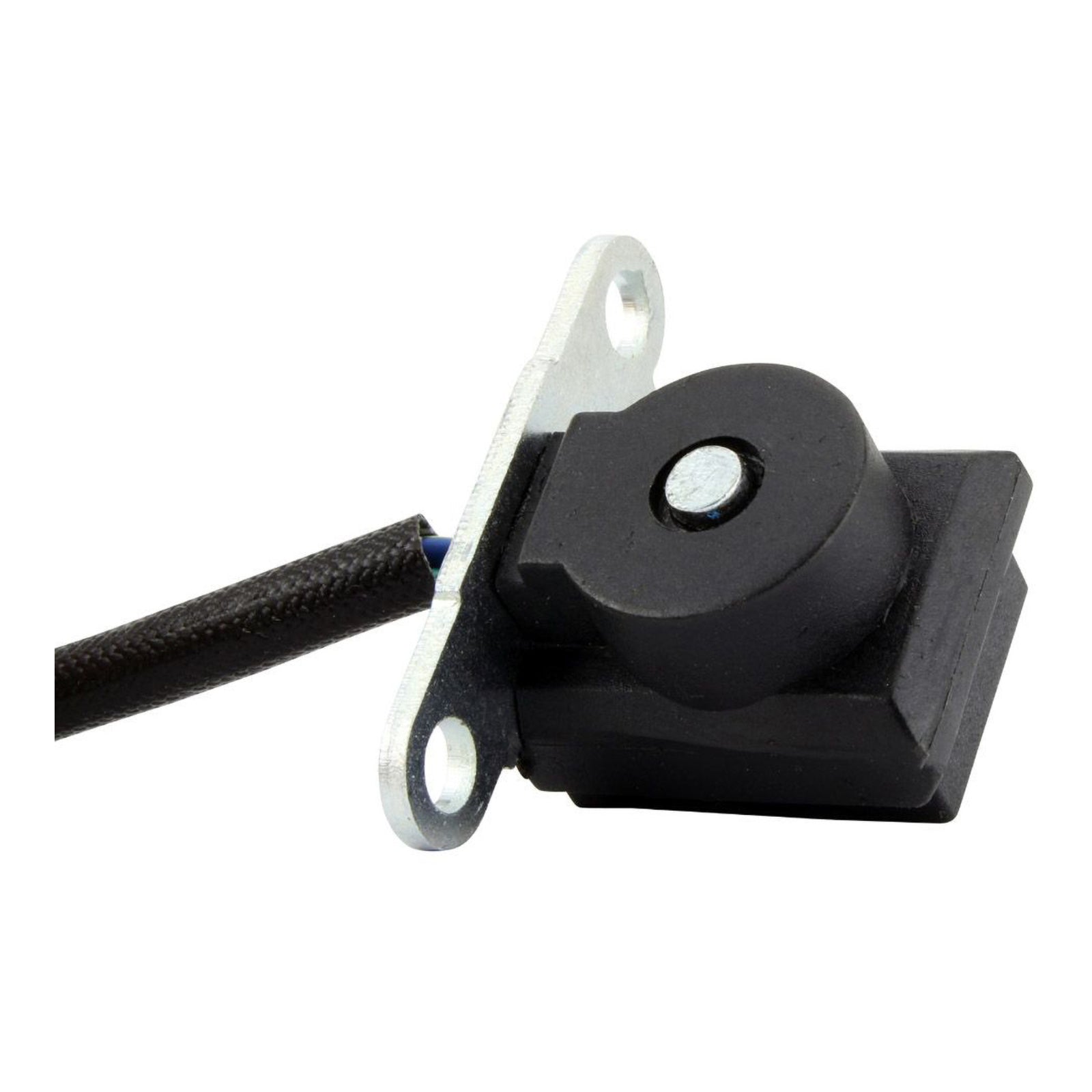

  • Pick up pulsar coil included

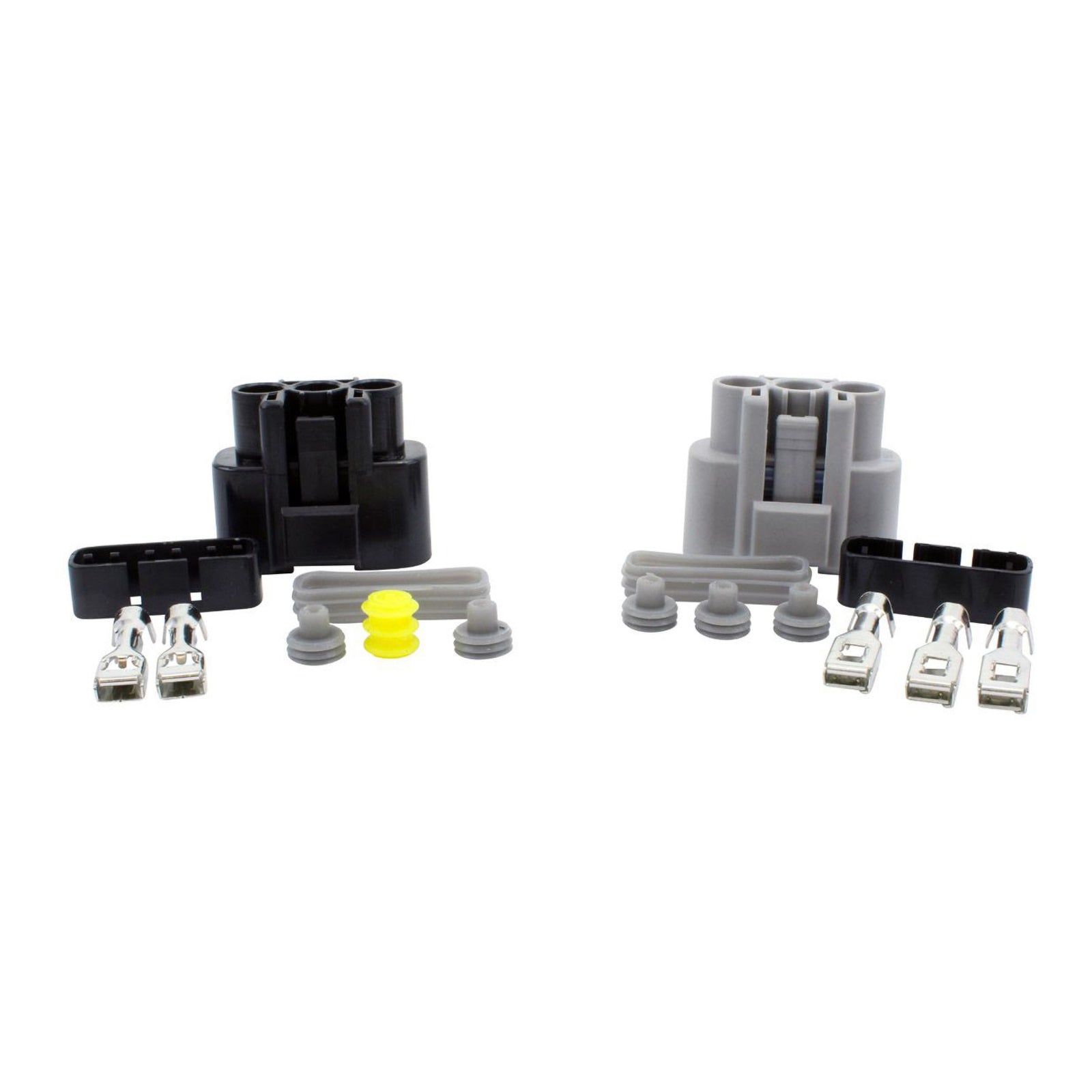

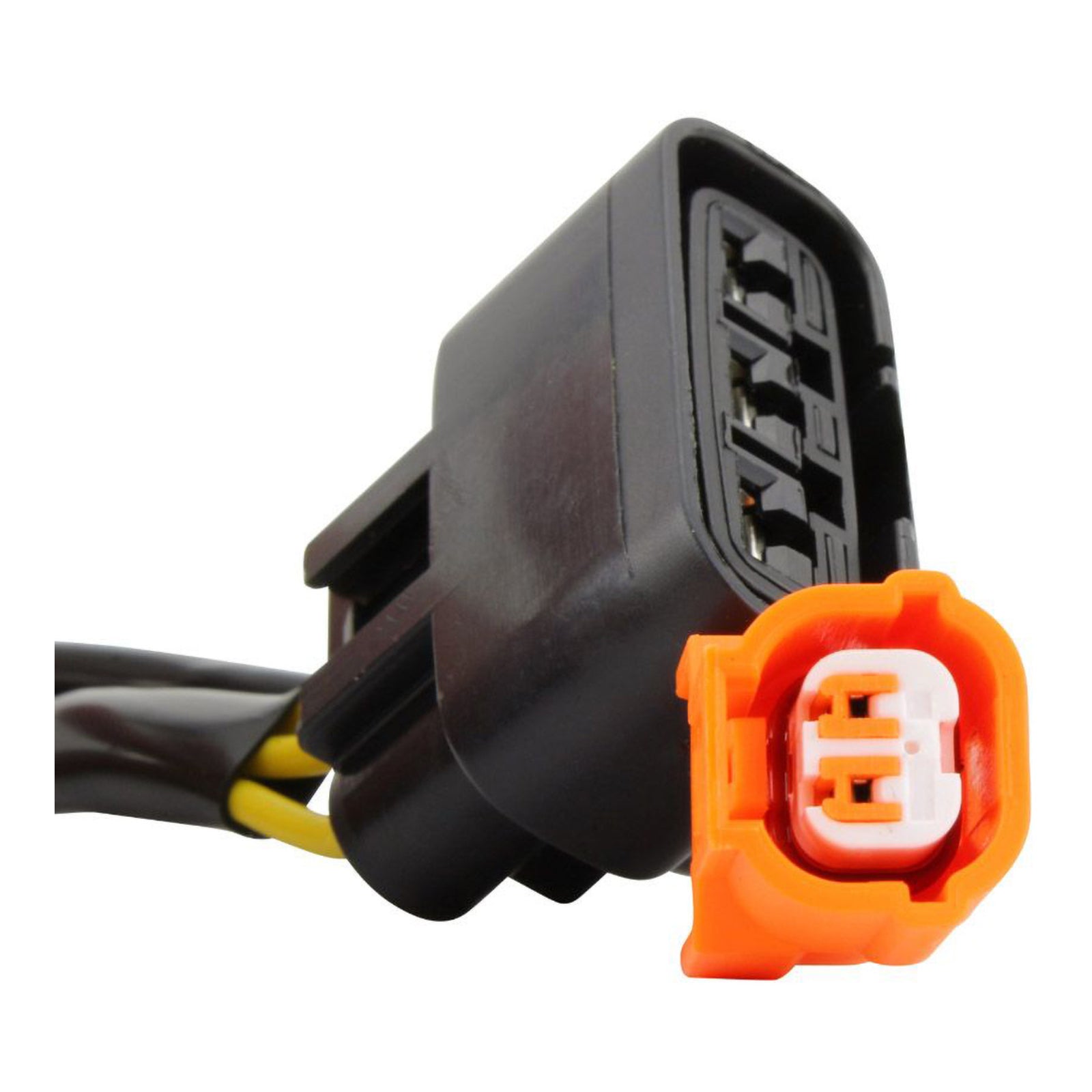

  • Connectors included

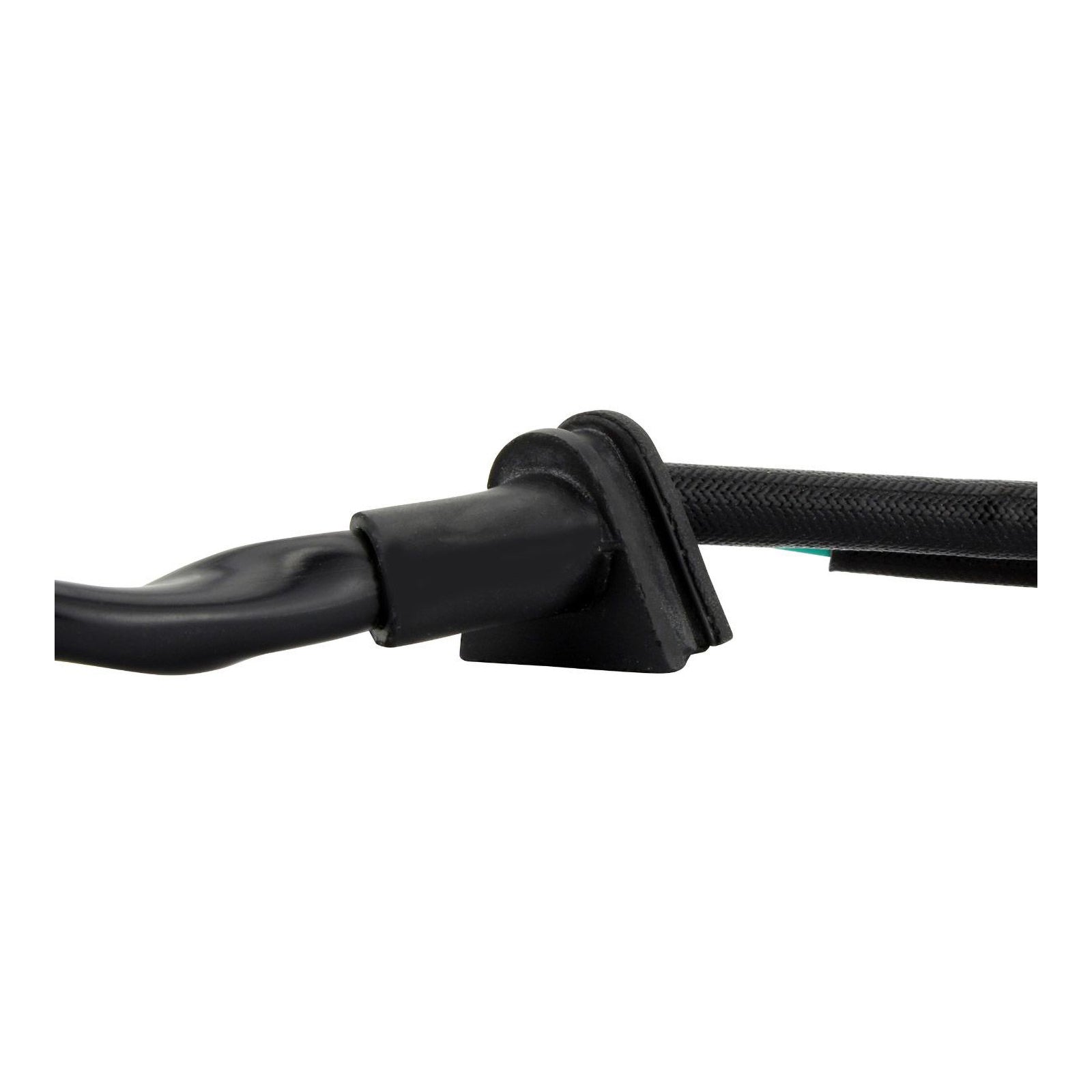

  • Rubber grommet included

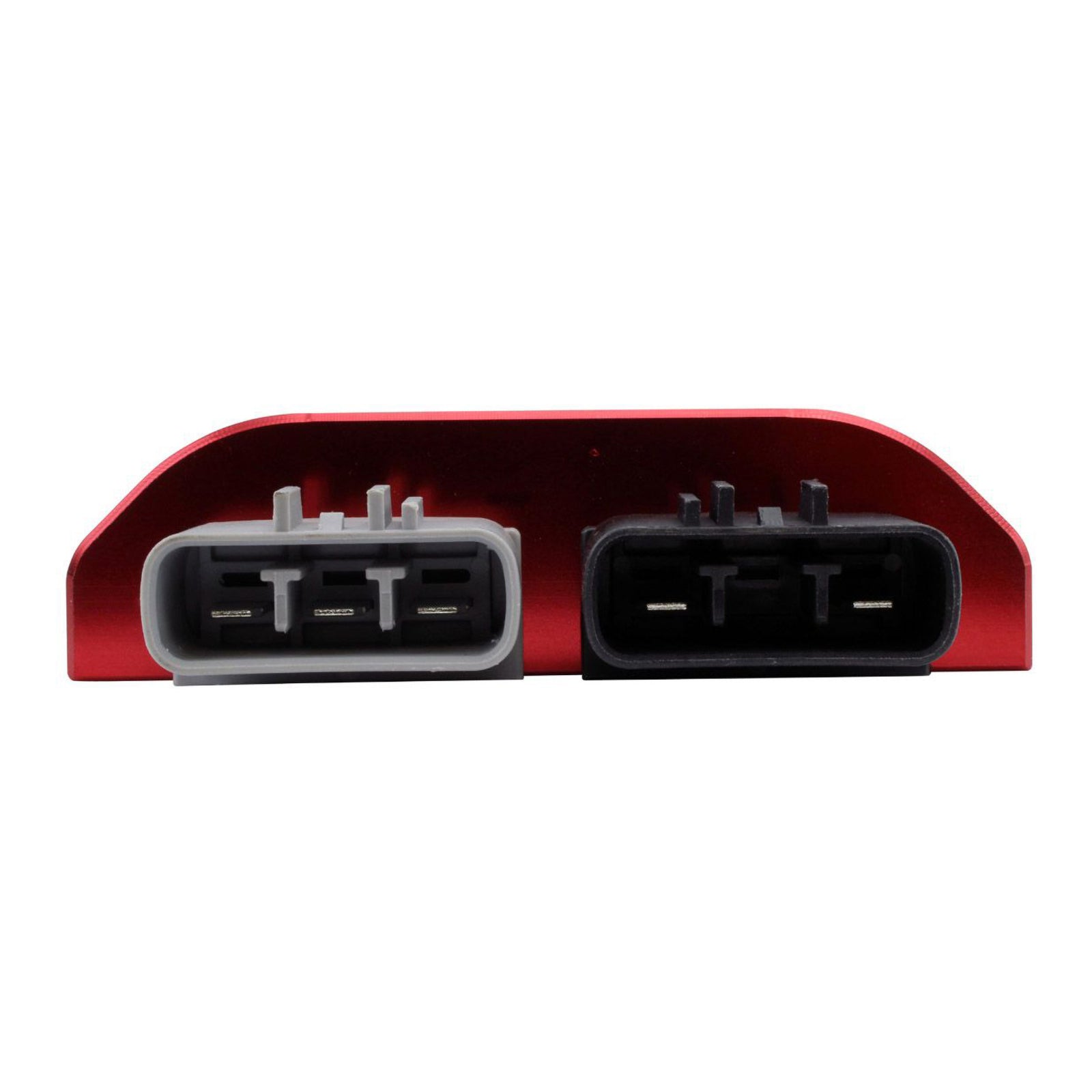

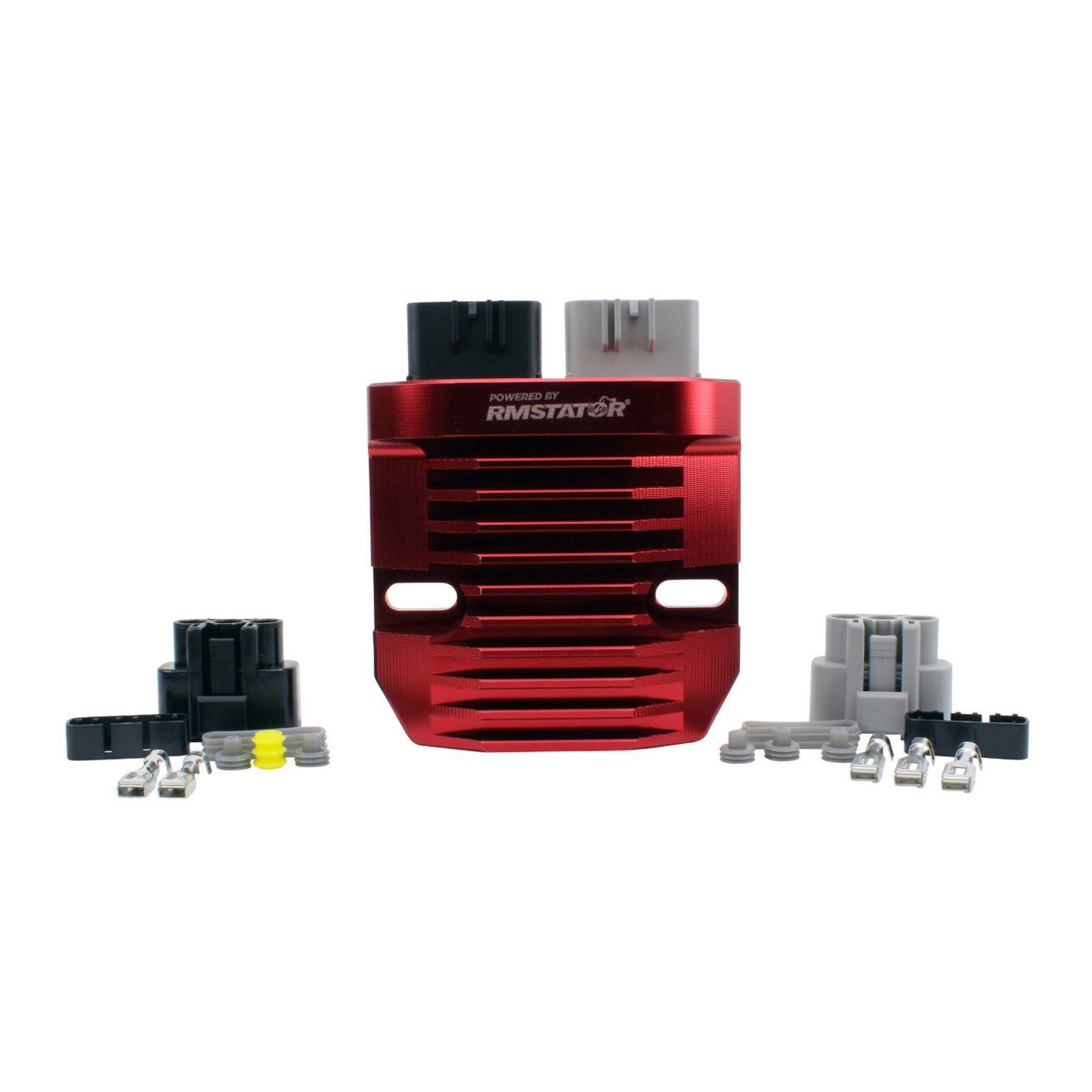

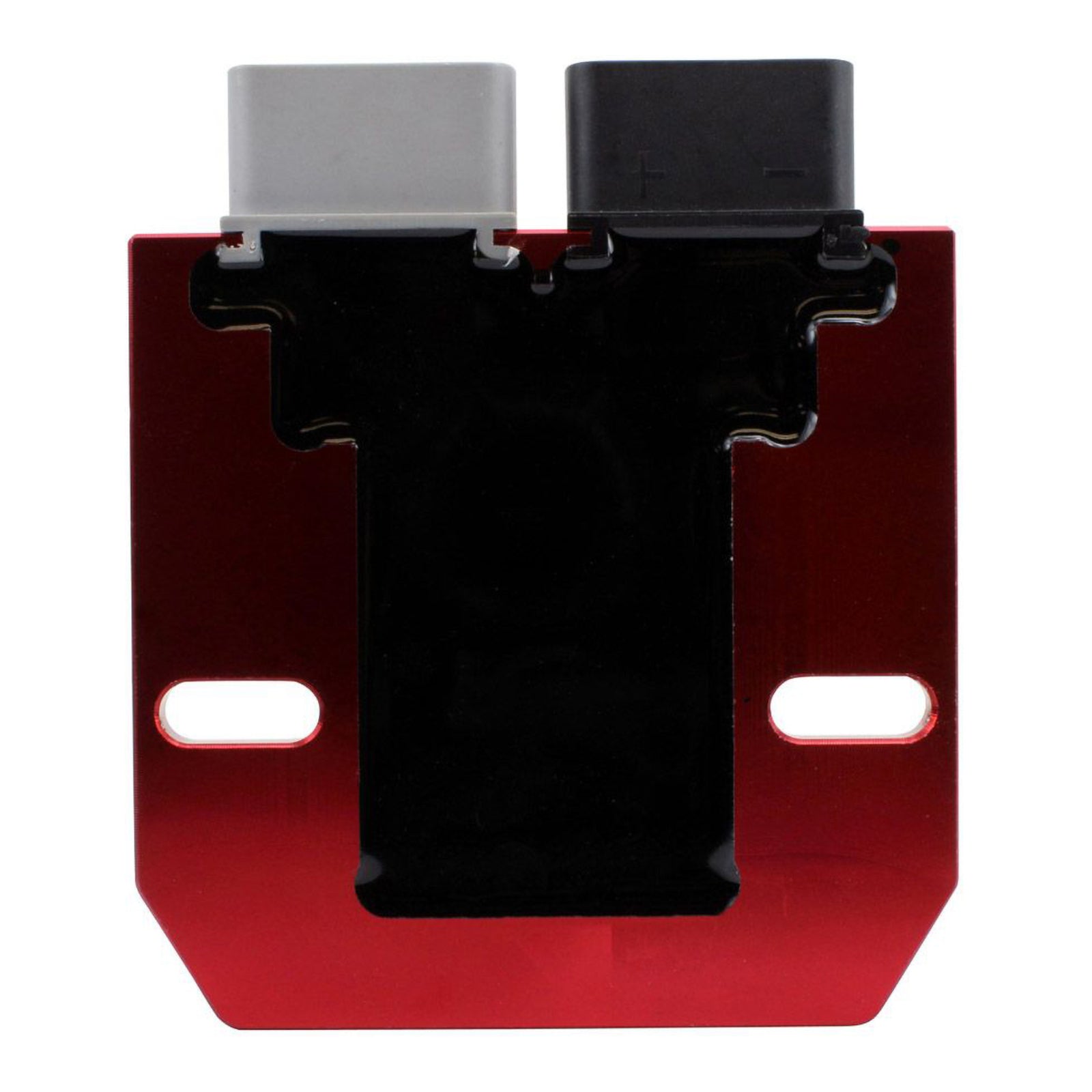

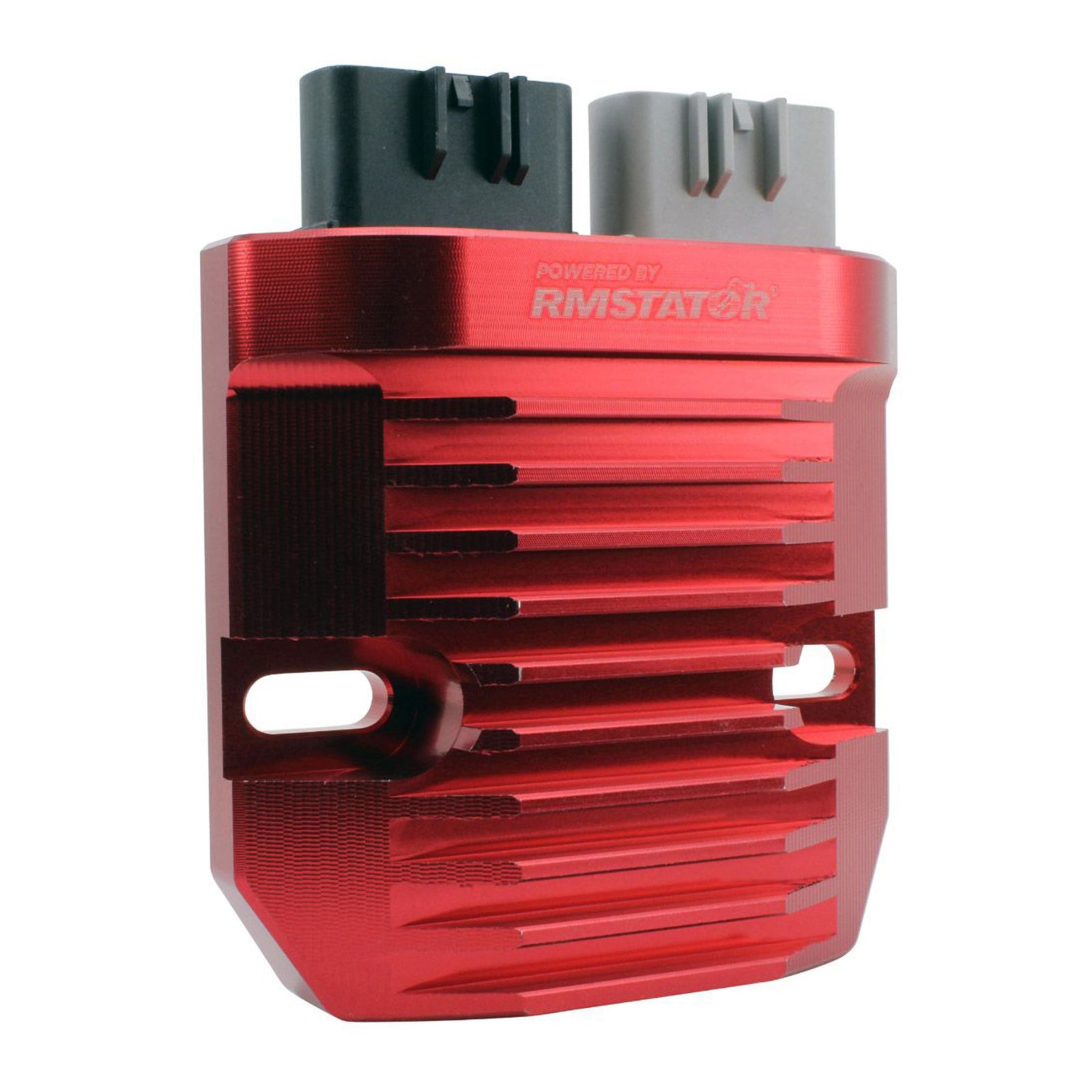

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new red machined aluminium Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminium heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

Specifications:

  • Stator:

    • Dimensions:
      • I nterior diameter: 42 mm
      • Exterior diameter: 107 mm
      • Thickness: 24 mm
      • Length of wires stator to grommet: 110 mm
      • Length of wires grommet to plug: 370 mm & 835 mm
      • Length of pickup coil's wire to grommet: 80 mm
    • Other Specifications:
      • Number of wires: 5
      • Number of plugs: 2
      • Number of pins: 5
      • Number of poles: 18
      • Wire to wire resistance:
        • Alternator: Between each Yellow = 0.6 ohms ±20%
        • Alternator: to ground = O.L (open loop)
        • Pickup: Blue/Yellow to Green = 116 ohms ±20%
  • RMSTATOR Red Machined Aluminum Mosfet Regulator:

    • Dimensions:
      • Width: 103 mm
      • Length: 103 mm
      • Height: 28 mm
      • Fixation holes center to center: 80 mm
    • Other Specifications:
      • Number of plugs: 2
      • Number of pins: 5
      • Number of wires: 0
      • Minimum Charging Voltage: 14.5 V ± 0.5 V
      • Maximum Charging Current: 50 A / 500 W
      • Open Circuit Voltage: 15 V
      • Operation Temperature: -20°C to 85°C
