Description

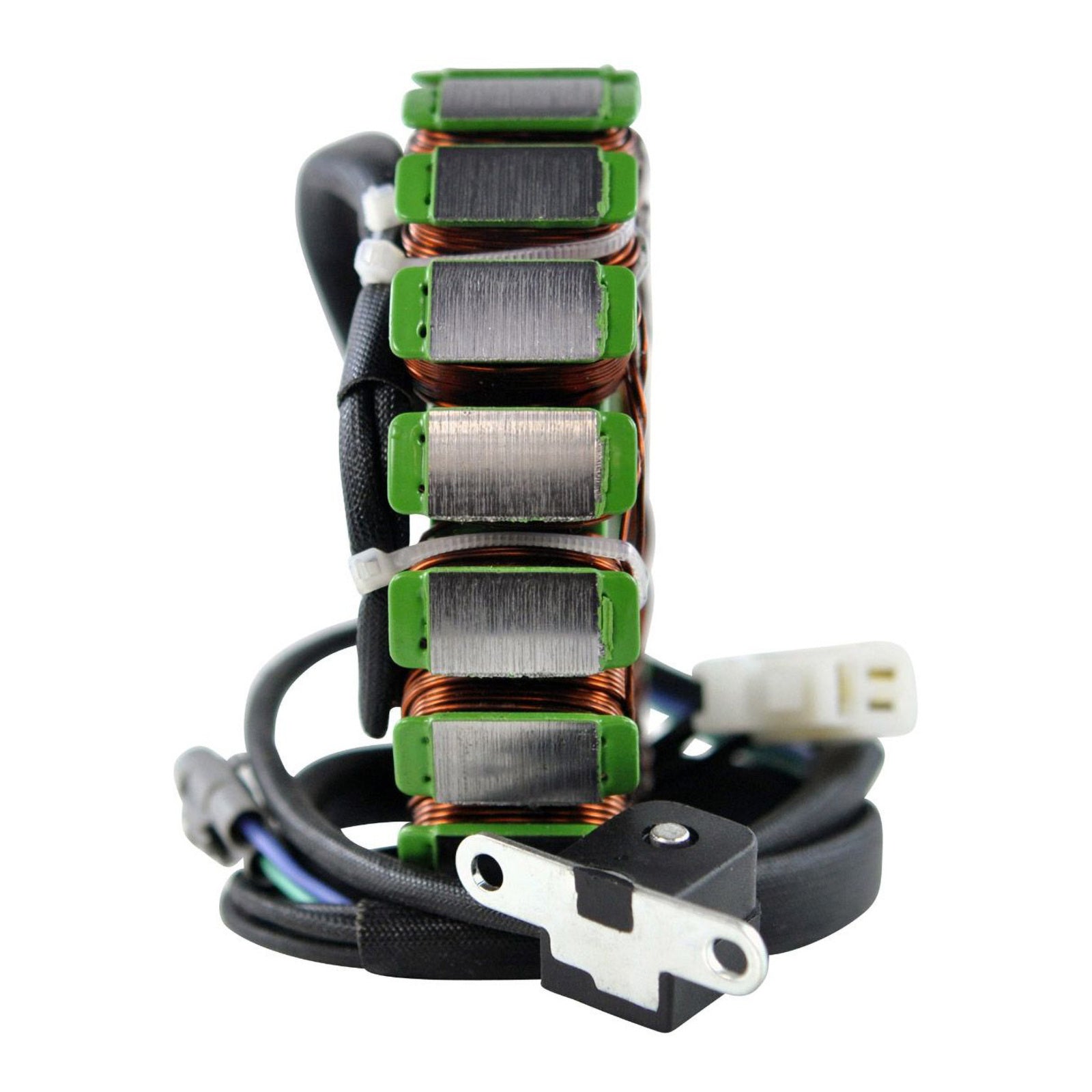

Brand new aftermarket Stator + Voltage Regulator Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
Voltage Regulator Rectifier
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and are a major cause of repetitive electrical issues.
Stator
Dimensions:
- Interior diameter: 42mm
- Exterior diameter: 115mm
- Thickness: 22mm
- Length of wires stator to grommet: 120mm
- Length of wires grommet to plug: 530mm
- Length of pickup coil's wire to grommet: 150mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
Wire to wire resistance:
- Alternator 3p: Black between each Black = 1 ohm +-20%
- Pickup: Green to Blue = 200 ohms +-20%
- Alternator to ground = O.L
Voltage Regulator
Dimensions:
- Width: 82mm
- Length: 94mm
- Height: 28mm
- Wires length: 183mm
- Fixation holes centre to centre: 73mm
Other specifications:
- Number of plugs: 2
- Number of pins: 7
- Number of wires: 7
- Minimum Charging Voltage: 14.5 V +- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20° to 85°
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
