Description

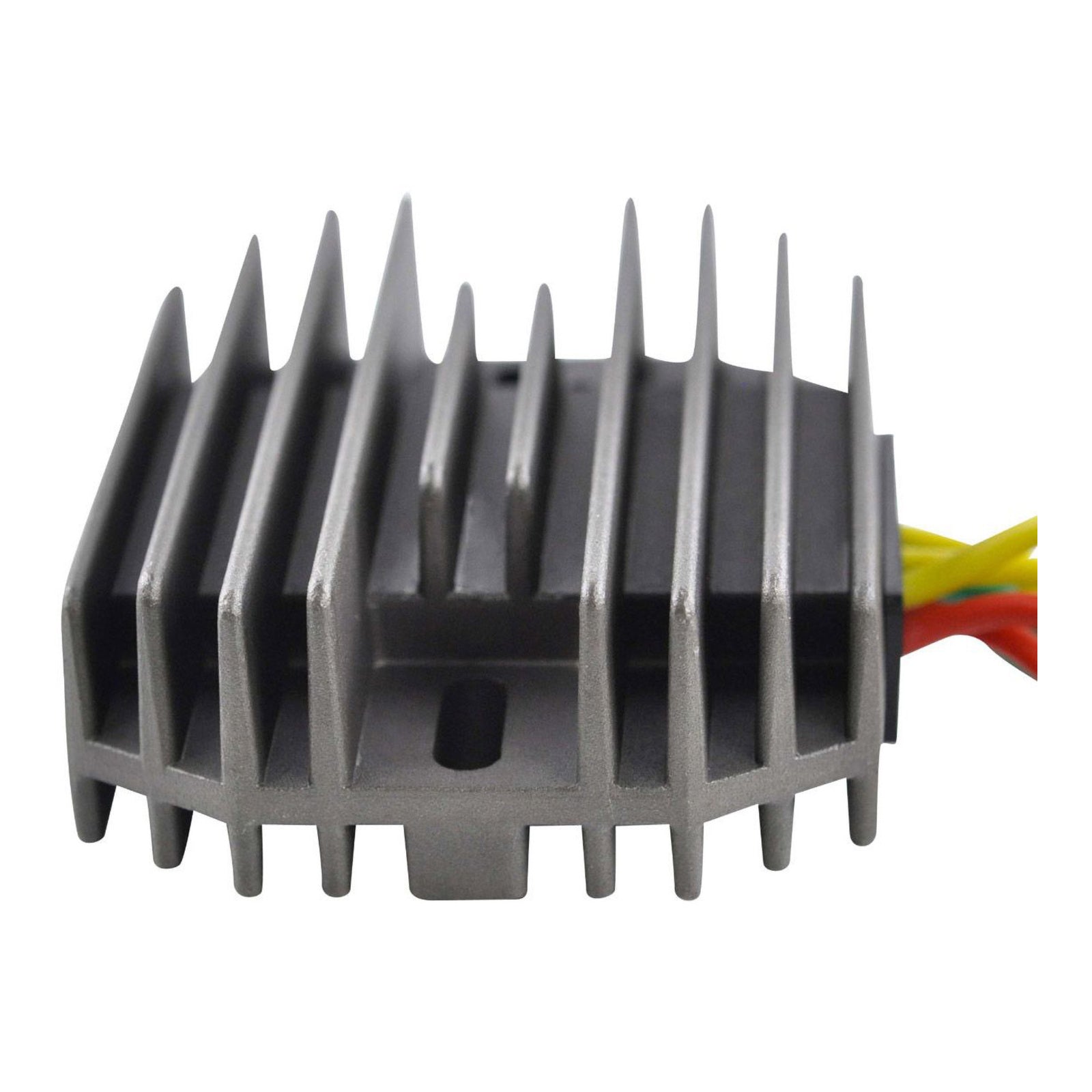

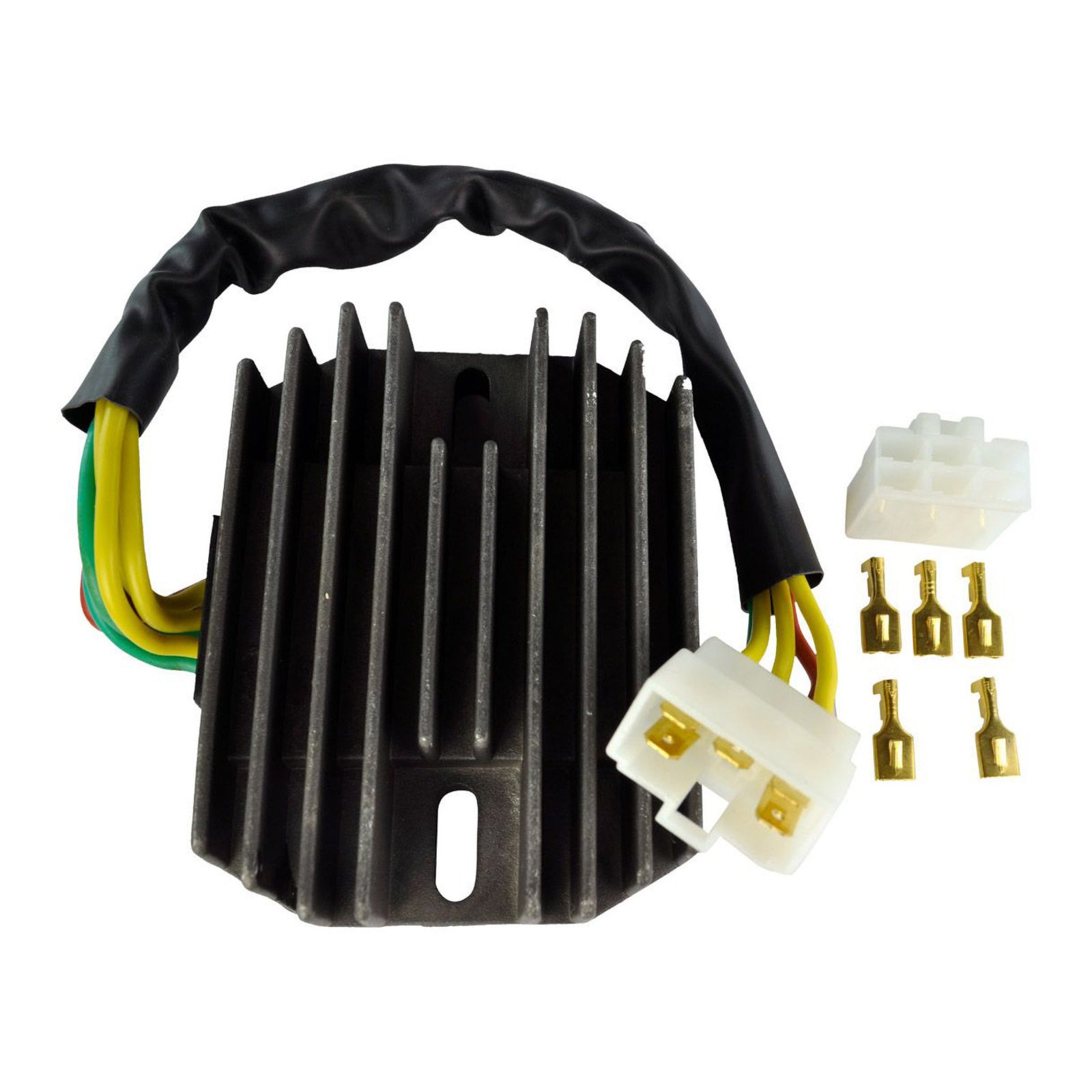

Brand new voltage regulator rectifier
BEWARE: 1996 and early 1997 454 Bearcat 4x4 has a different plug. Please consult installation instruction before buying this product. Arctic Cat split the year on certain models; the RM30405 replaces OEM parts #3430-037 and #3430-016.
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components.
- All products shipped are tested
Dimensions:
- Width: 80mm
- Length: 115mm
- Height: 54mm
- Fixation holes centre to centre: 80mm
- Wires length: 275mm
Other specifications:
- Number of plugs: 1
- Number of pins: 5
- Minimum Charging Voltage: 14.5V +/- 0.5V
- Maximum Charging Current: 25A-35A/300W-500W
- Open Circuit Voltage: <15V
- Operation Temperature: -20° to 85°
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
- There are multiple regulators for some Triumph vehicles. Please refer to the note below to make sure you purchase the right part:
- Bonneville 2017 to 2020: This part will only fit on Bonneville with a VIN HIGHER than 513325. If you have a LOWER VIN you should look for parts # RM30506 / RM30506H / RMS022-105928 / RMS023 106203 / RMS023-107140.
- Thruxton from 2008 to 2020 This part will only fit Thruxton with a VIN HIGHER than 513322. If your vehicle has a VIN inferior to 513321, refer to OEM T1300890.
