VOLTAGE REGULATOR ASSTD MODELS RFR FITMENT (RMS020-107290)

RMSTATORSKU: RMS020107290
No reviews

Price:
Sale price$239.99
Stock:
Only 1 unit left

Description

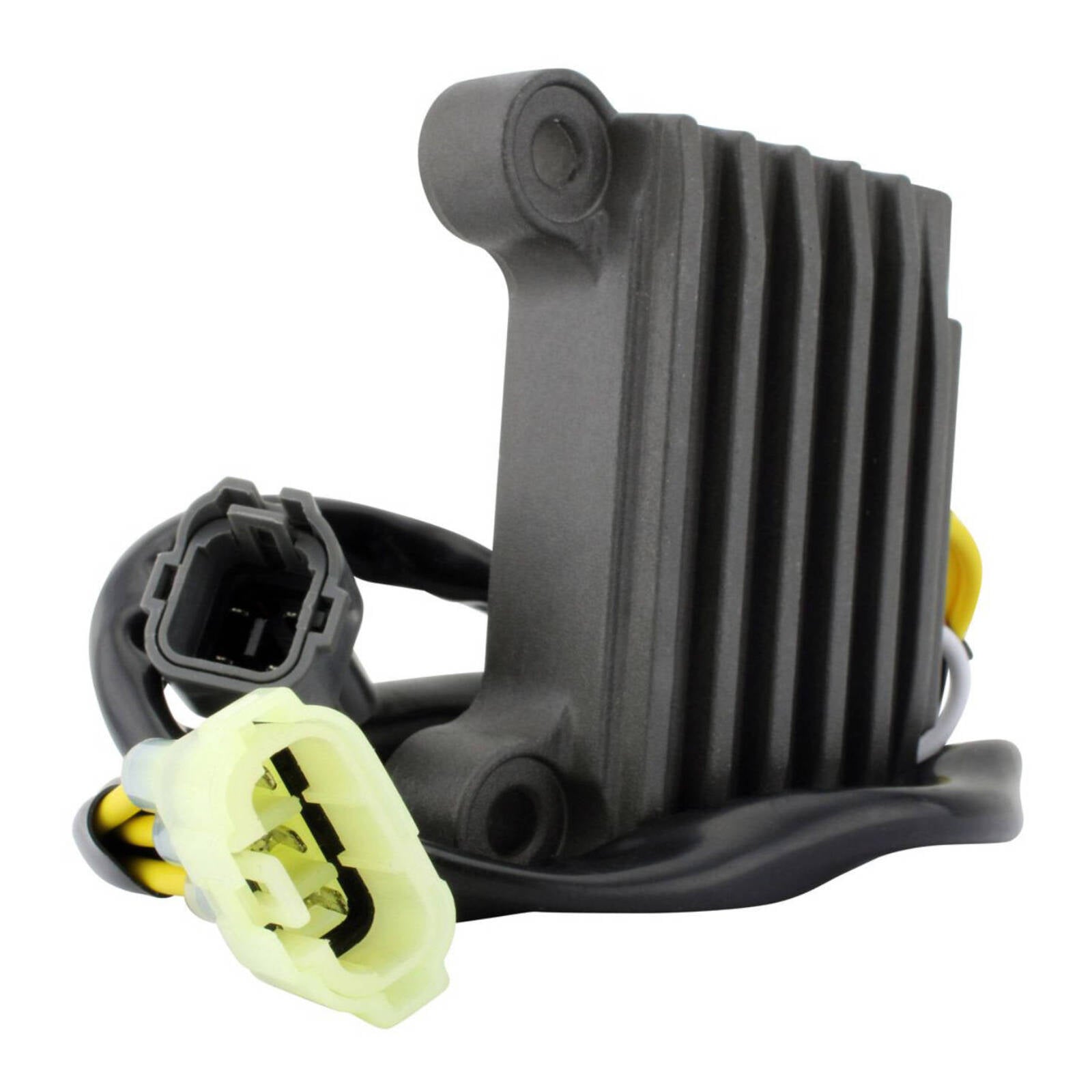

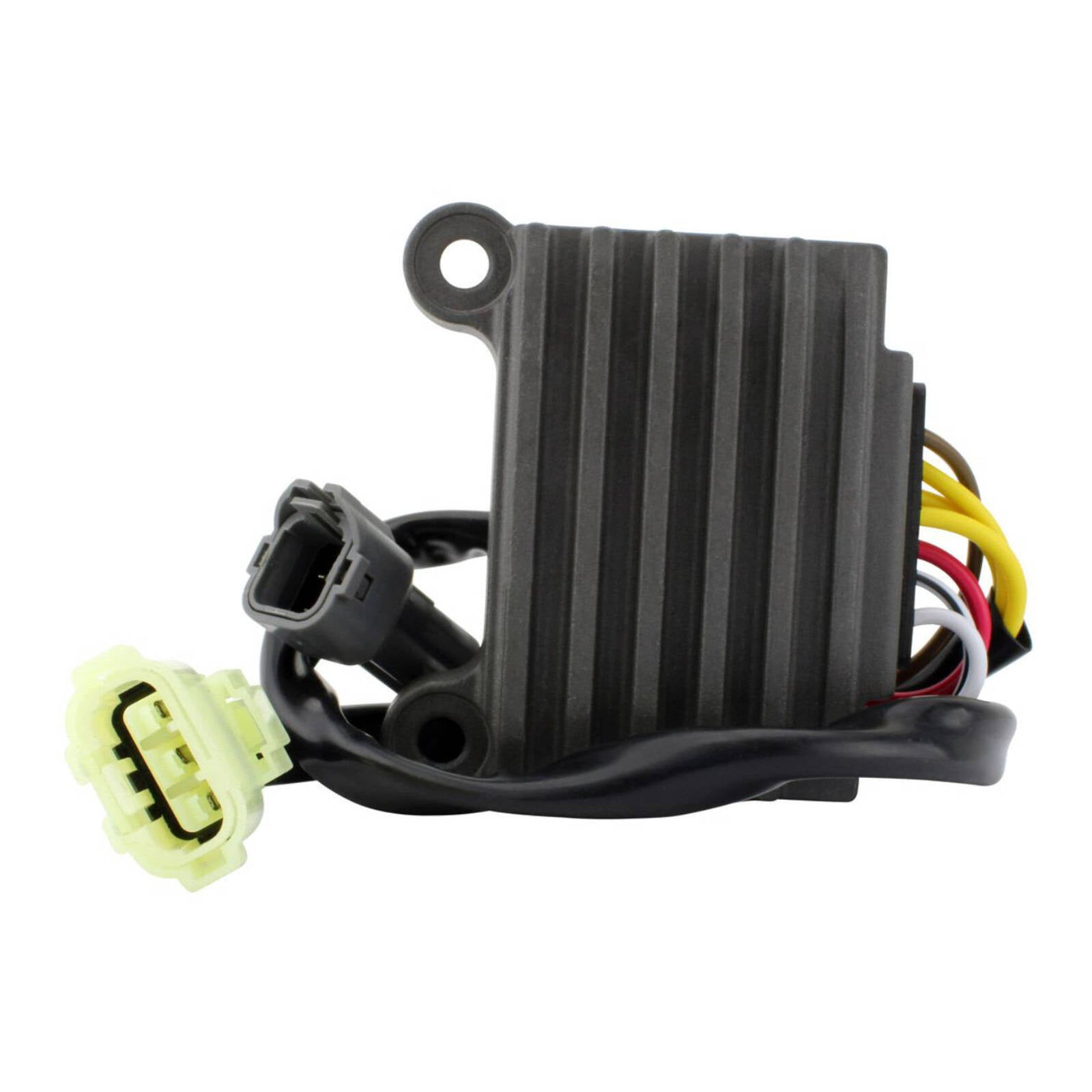

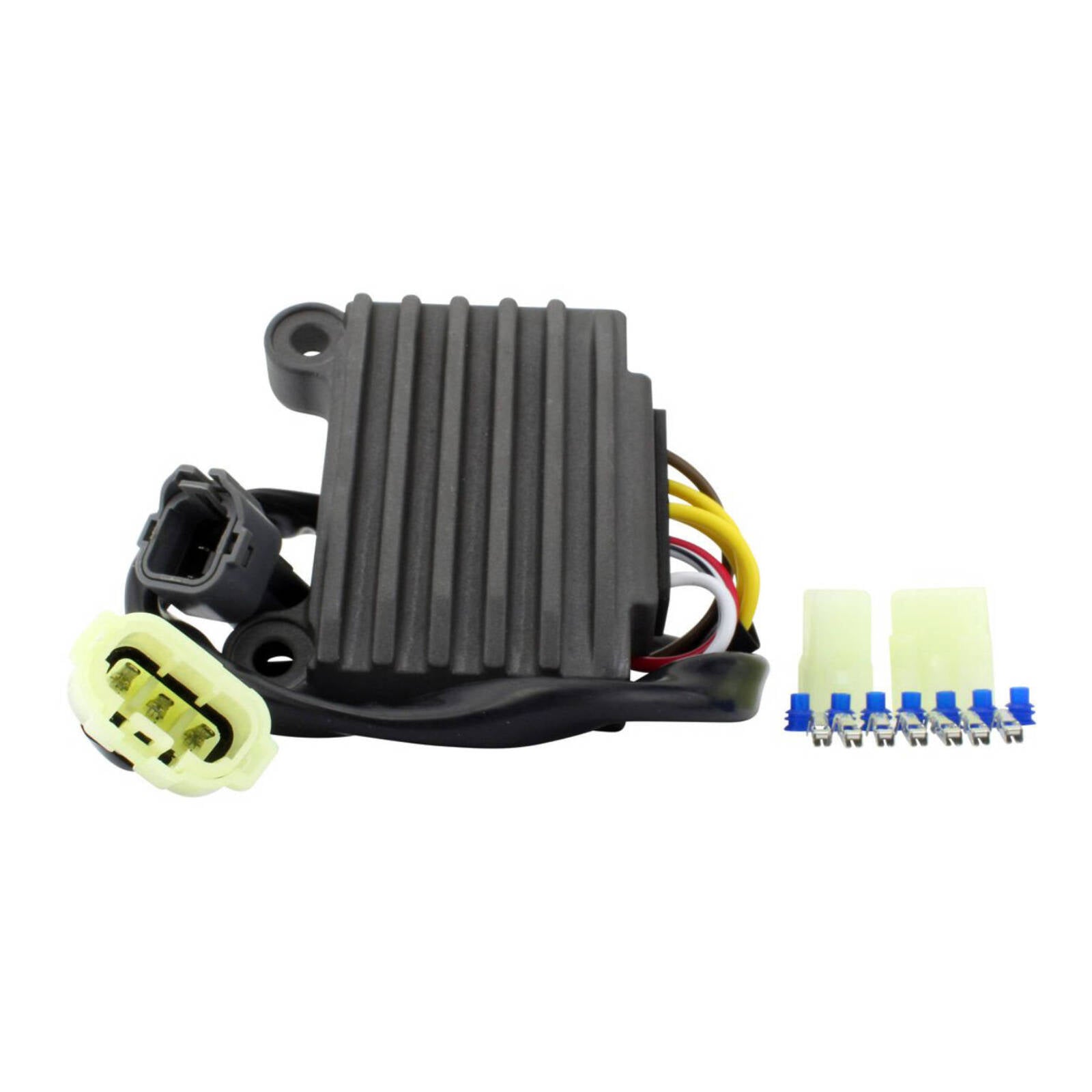

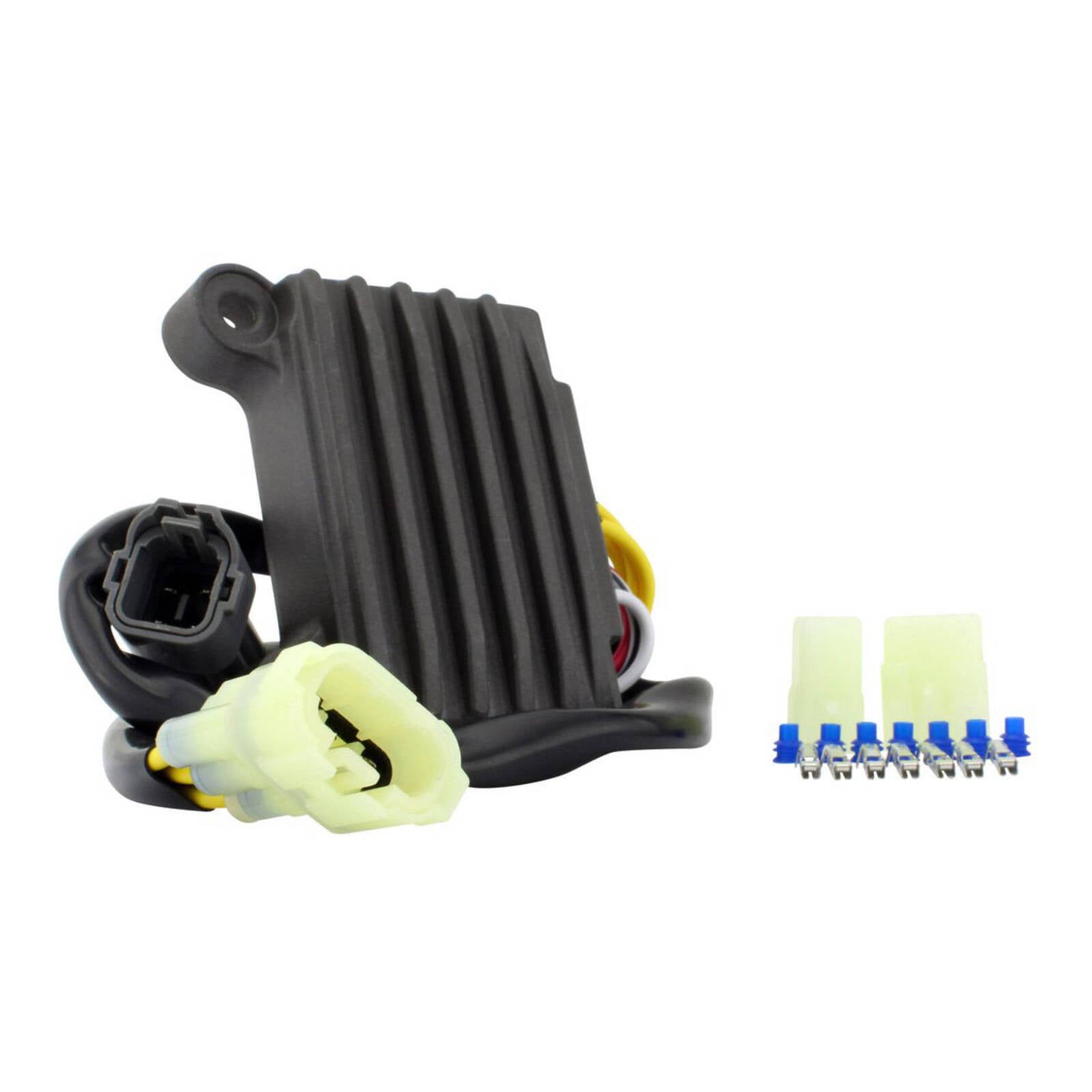

Brand new aftermarket Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher-grade of electric components
  • The quality exceeds the OEM equipment
  • All products shipped are tested

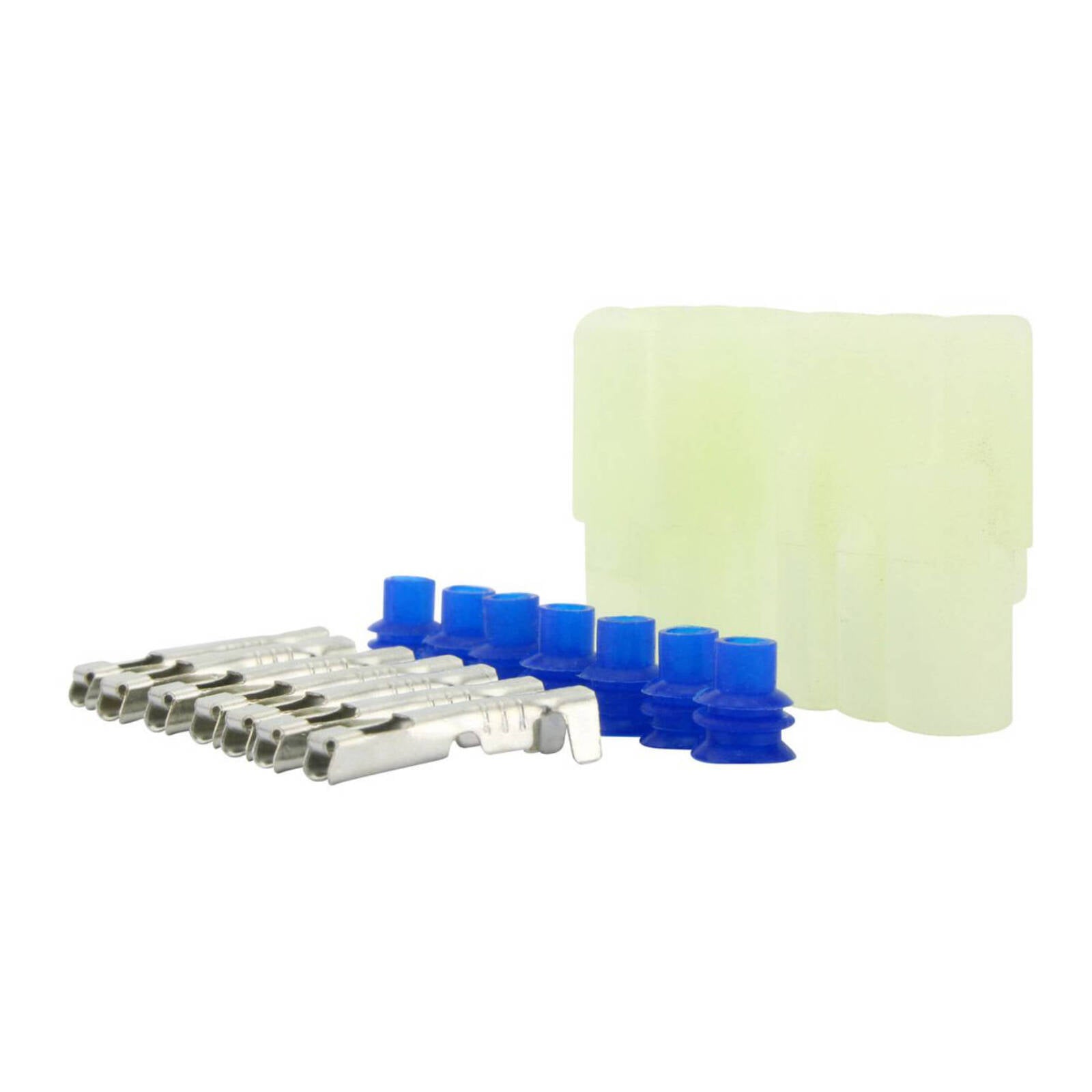

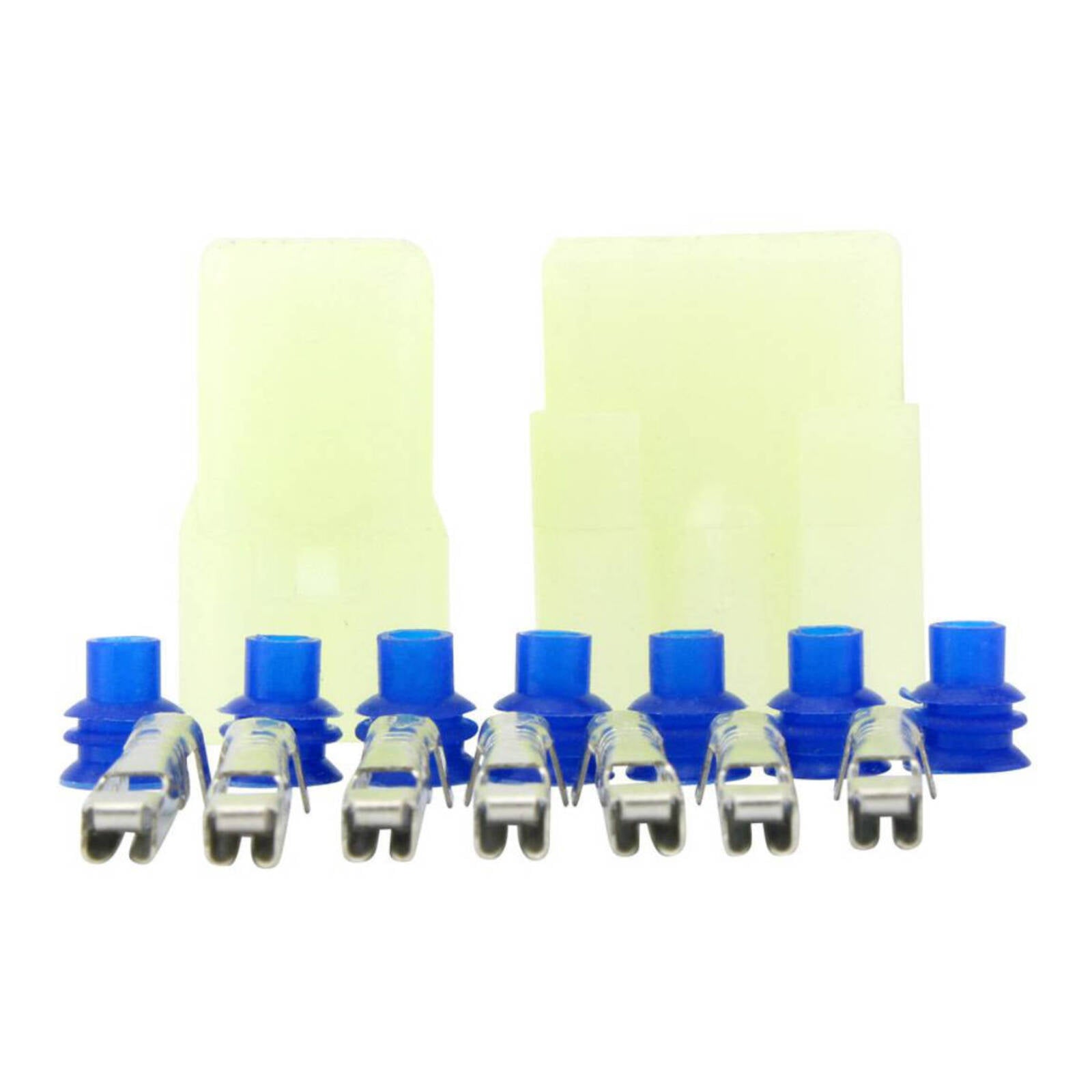

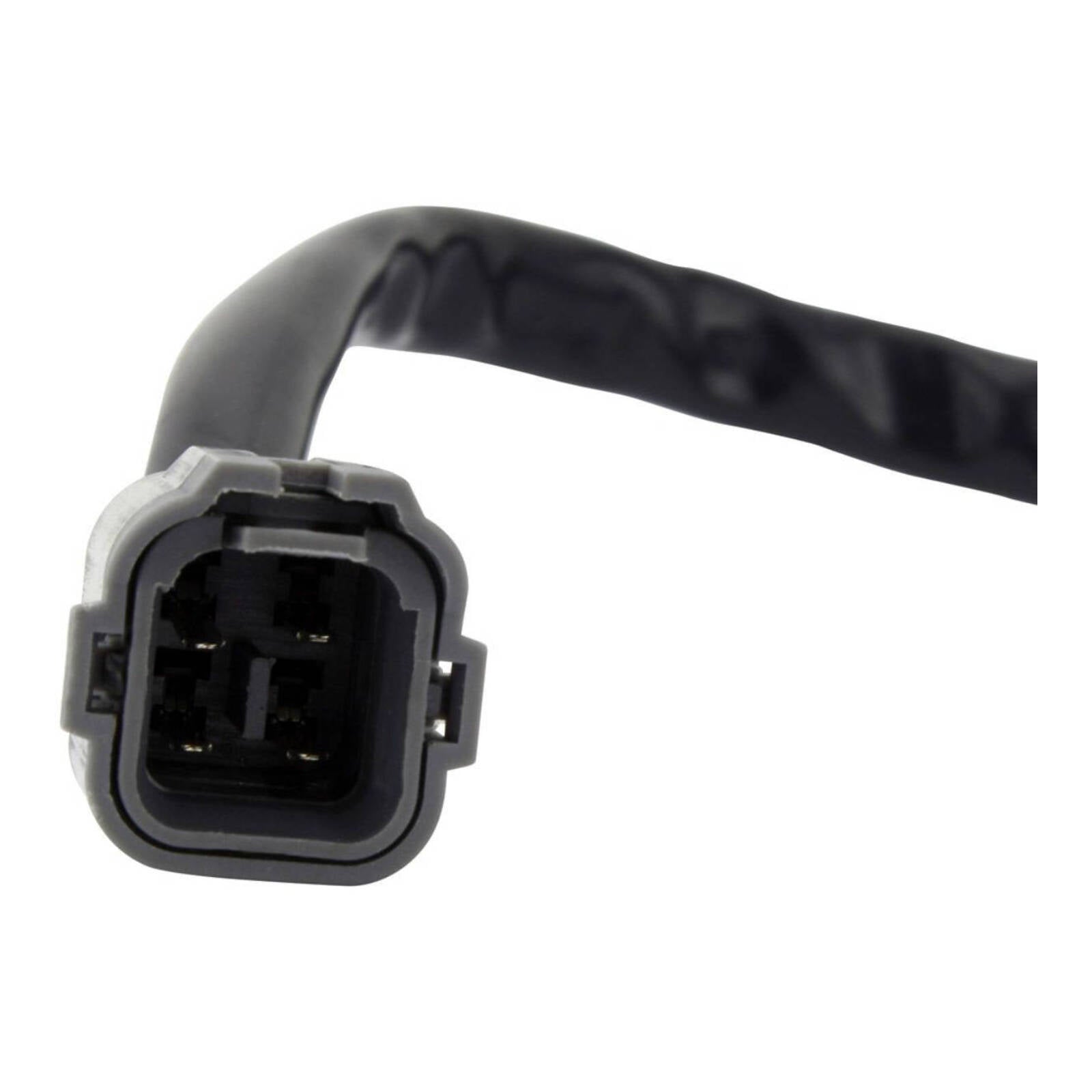

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

  • Width: 74 mm
  • Length: 80 mm

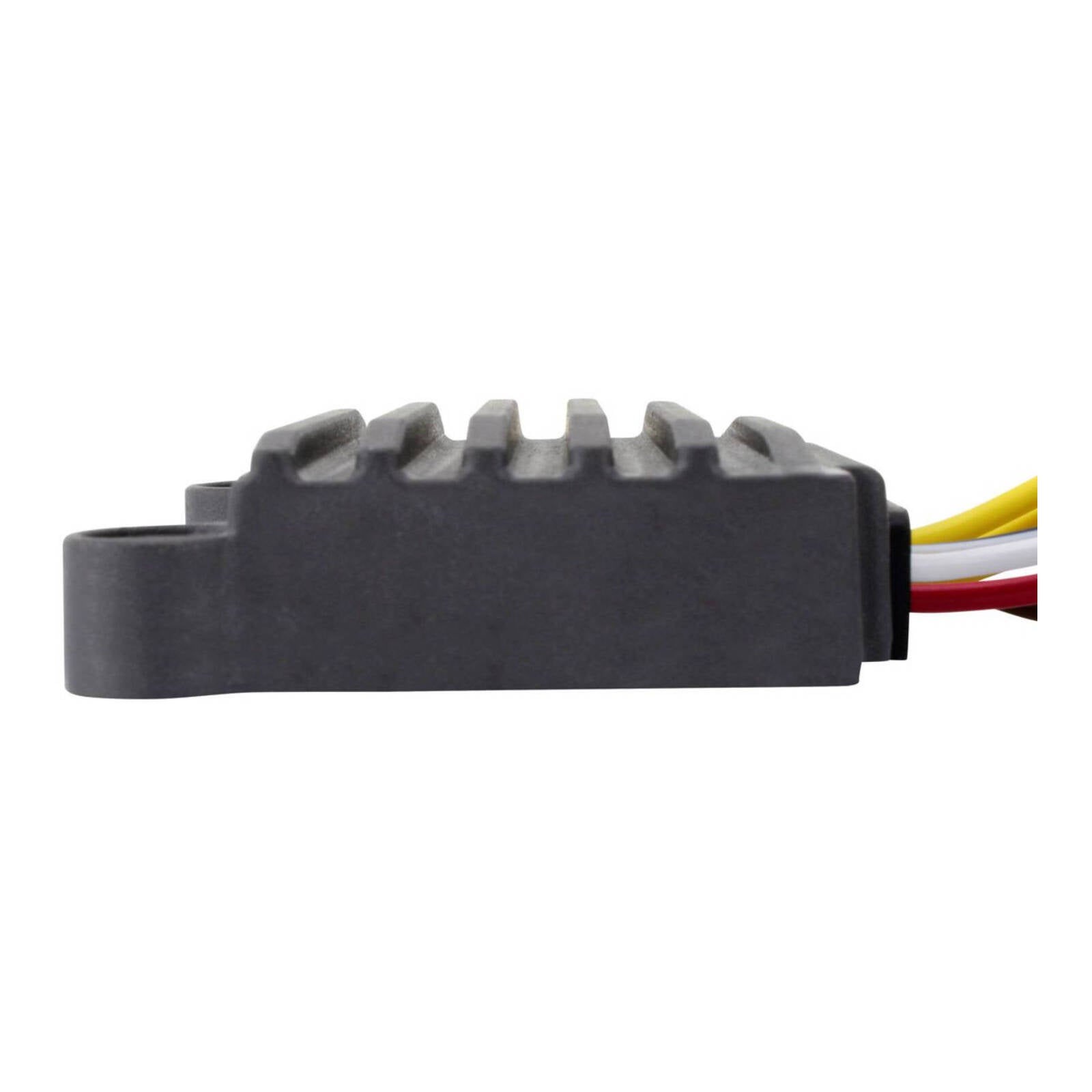

  • Height: 22 mm
  • Wires length #1: 220 mm
  • Wires length #2: 440 mm

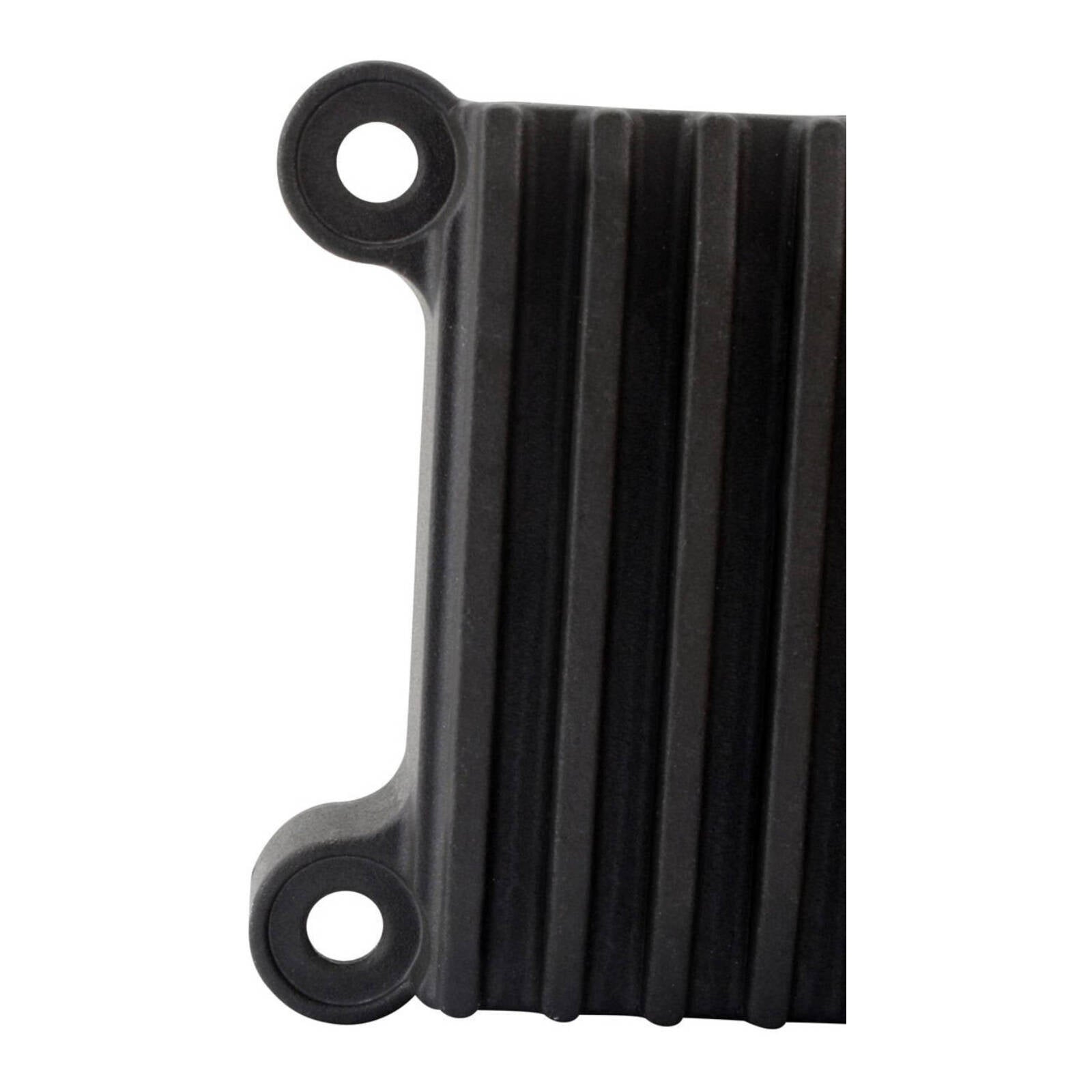

  • Distance between fixation holes center to center: 68 mm

Other specifications:

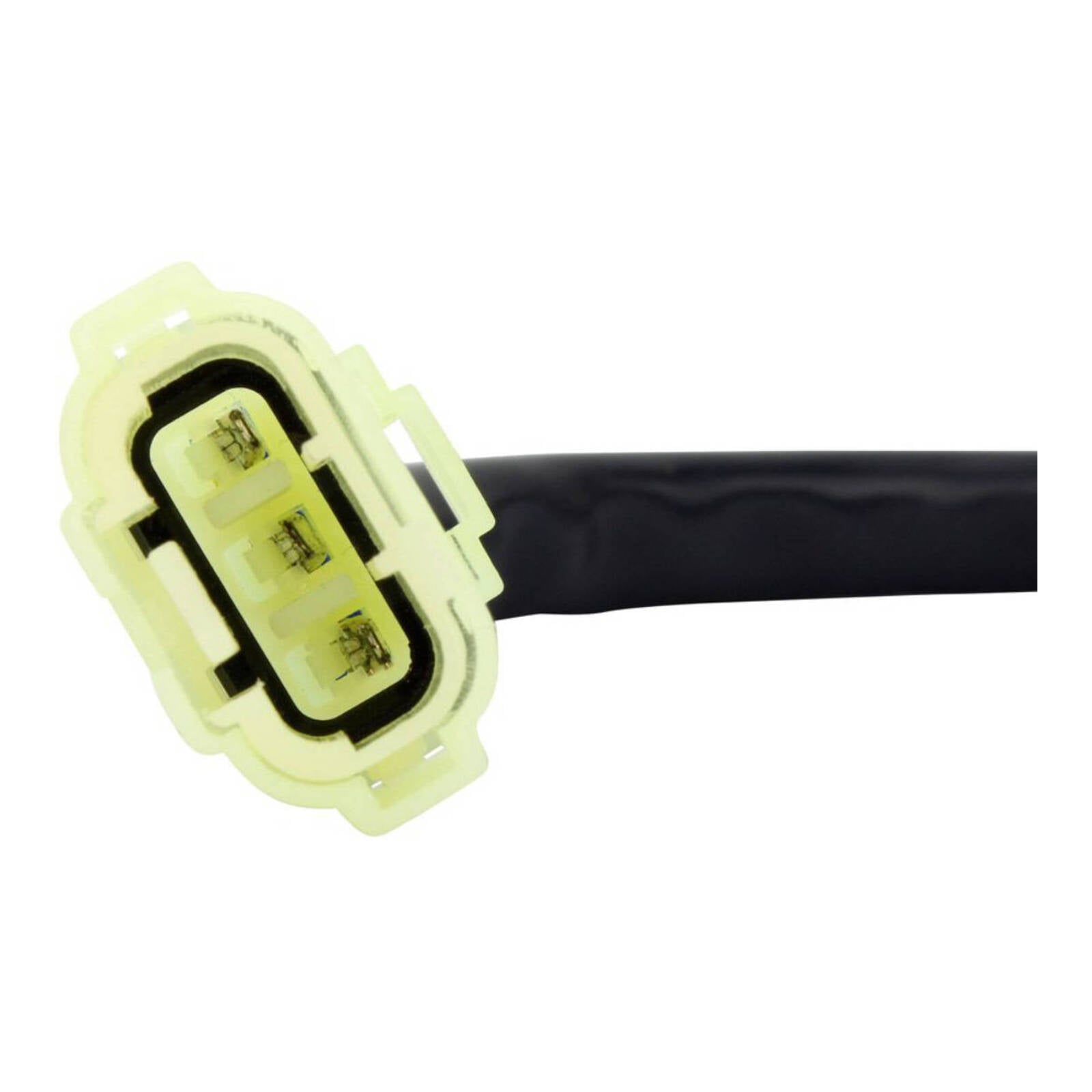

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C
