Description

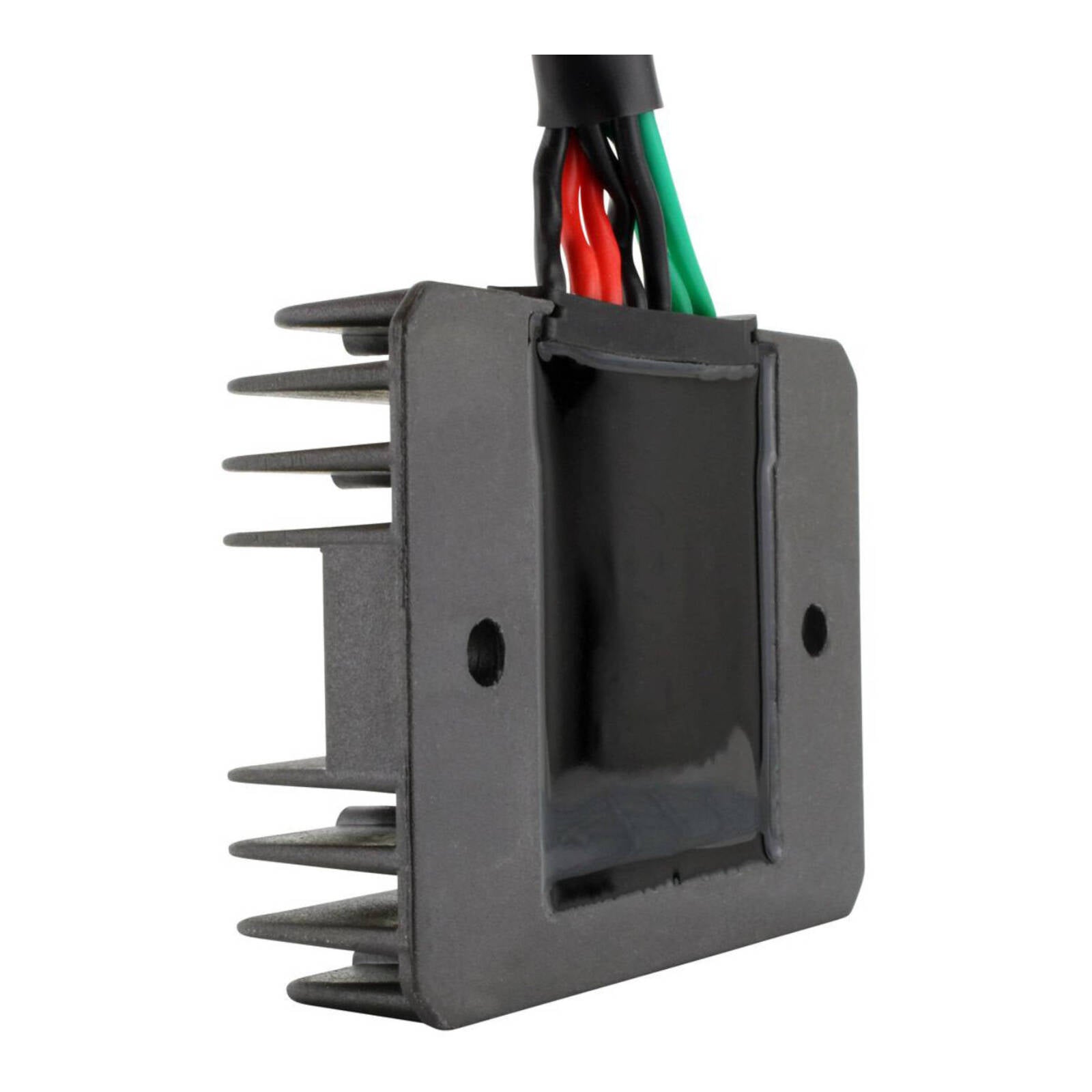

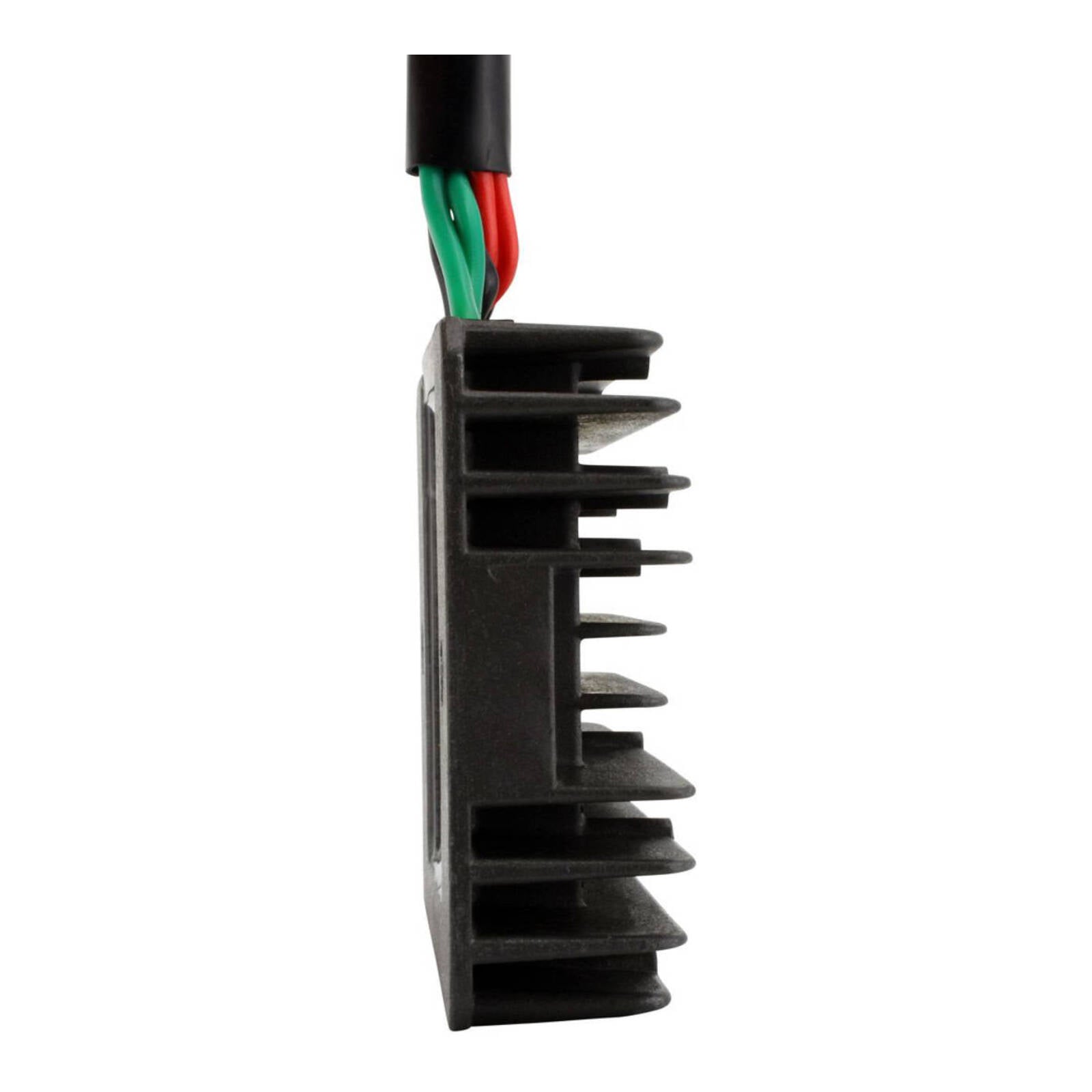

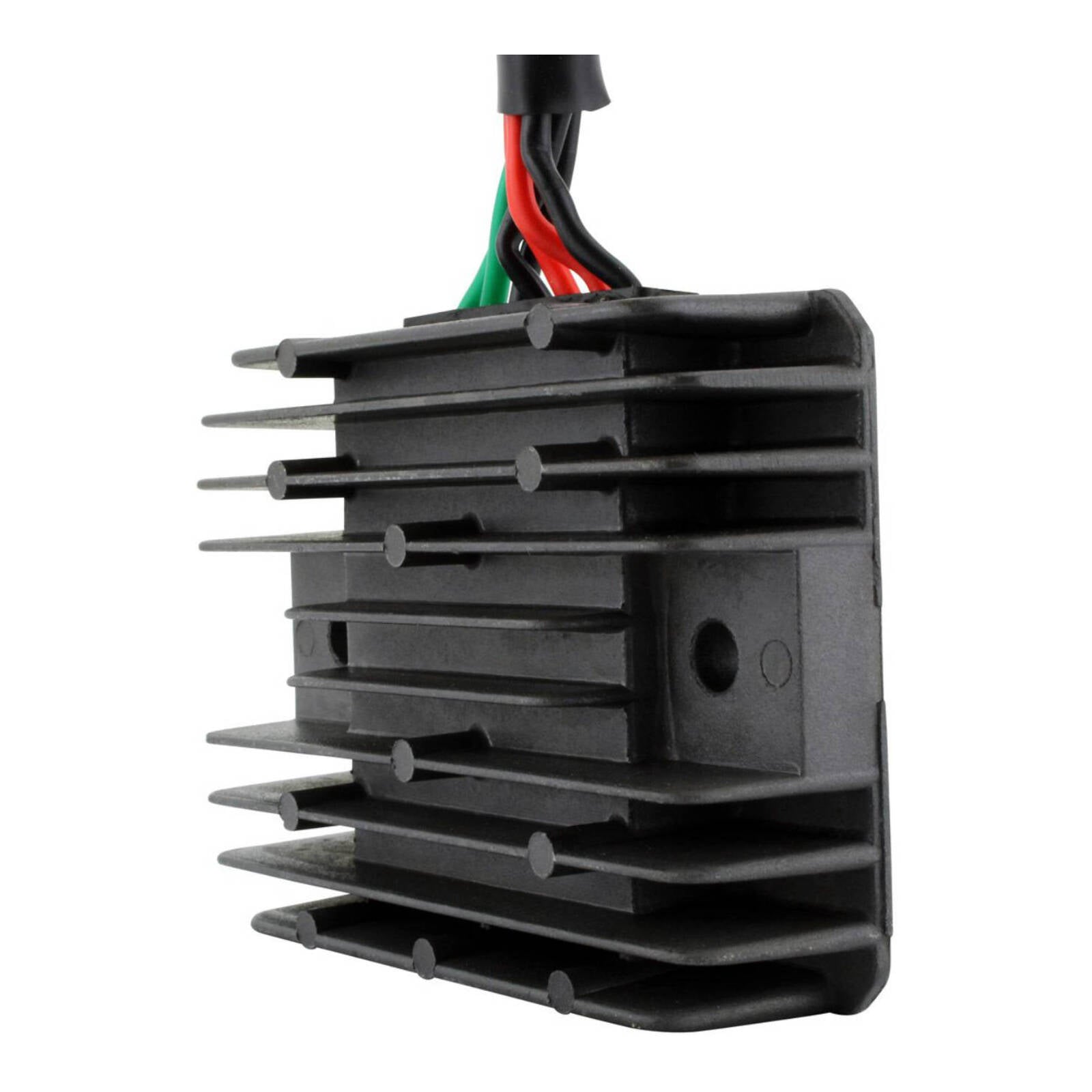

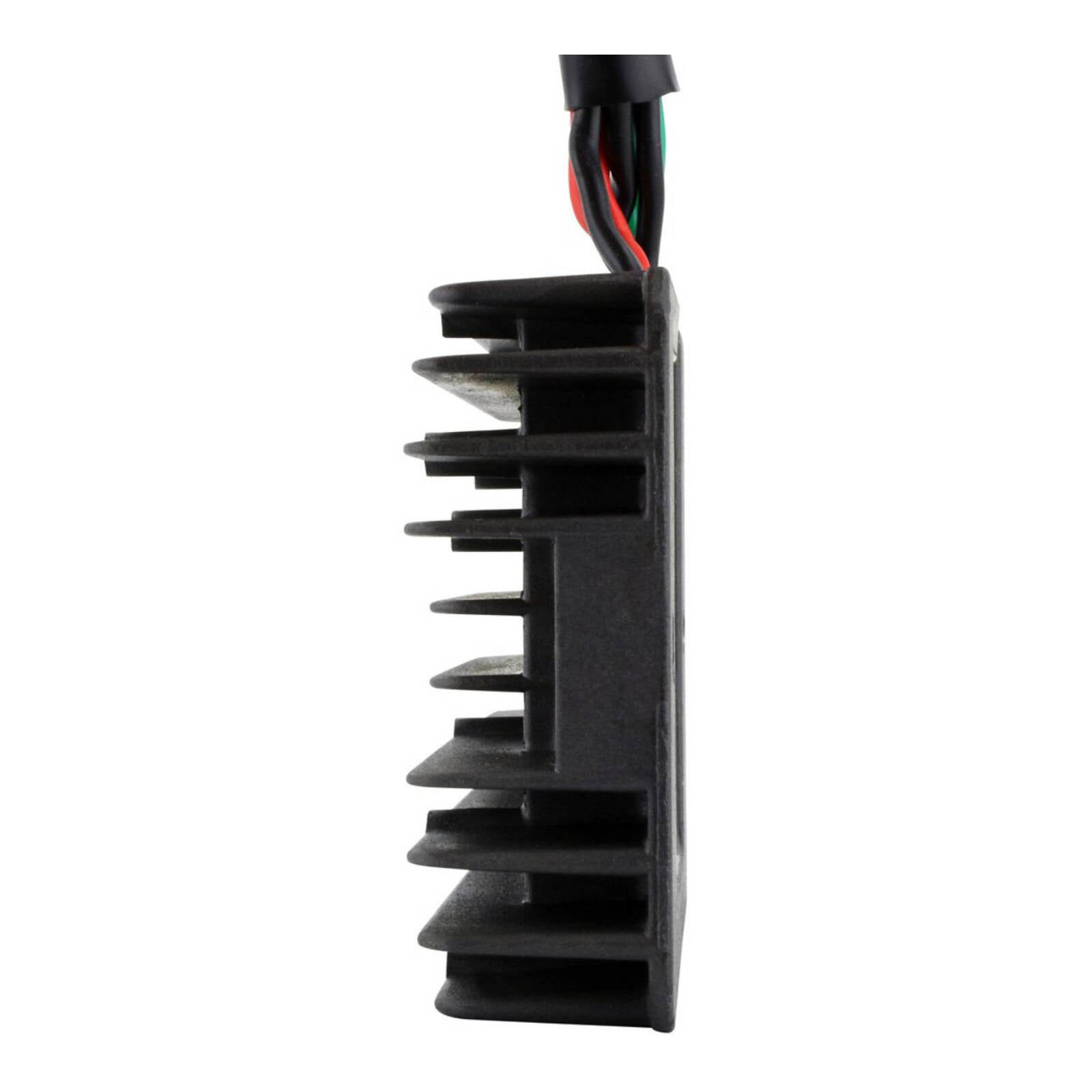

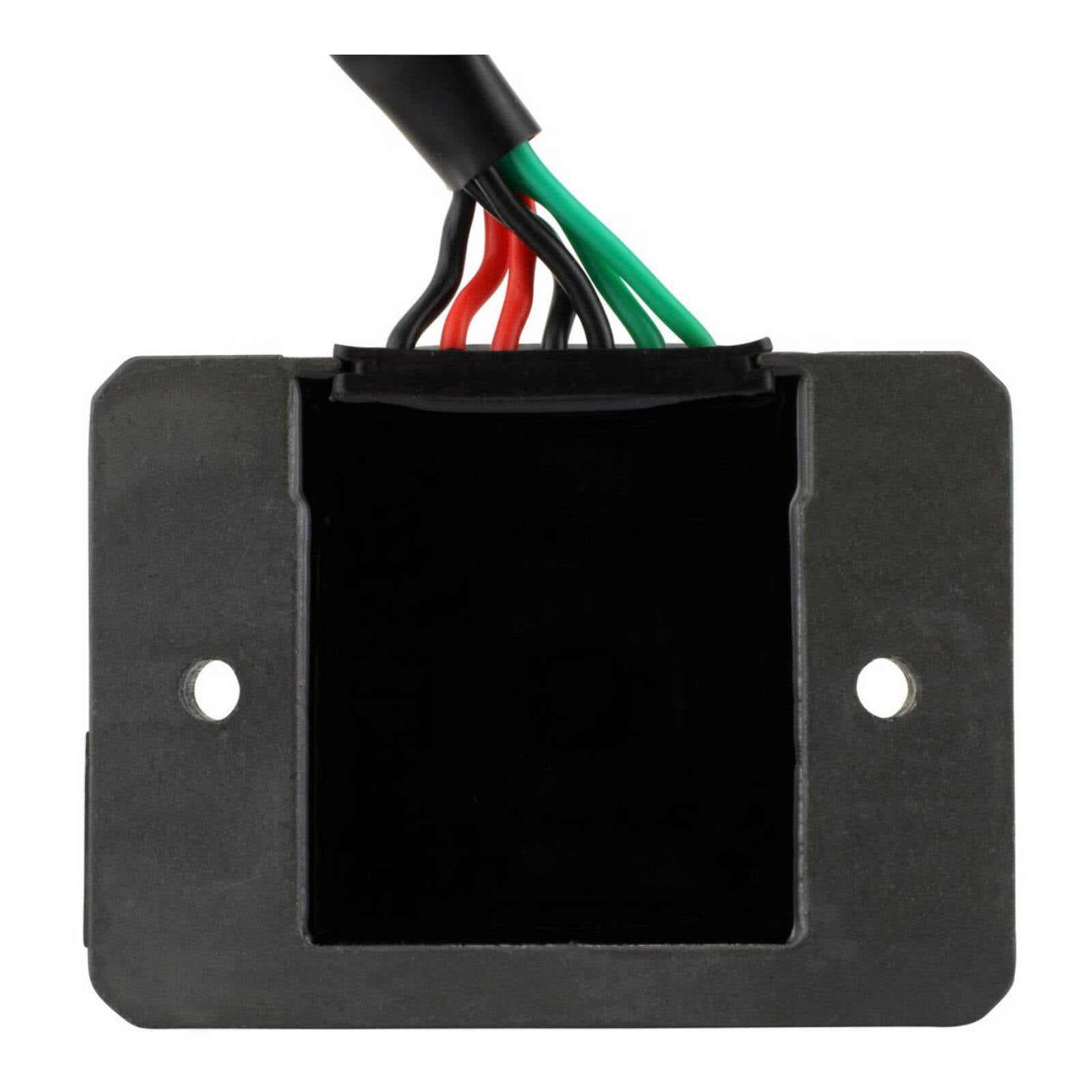

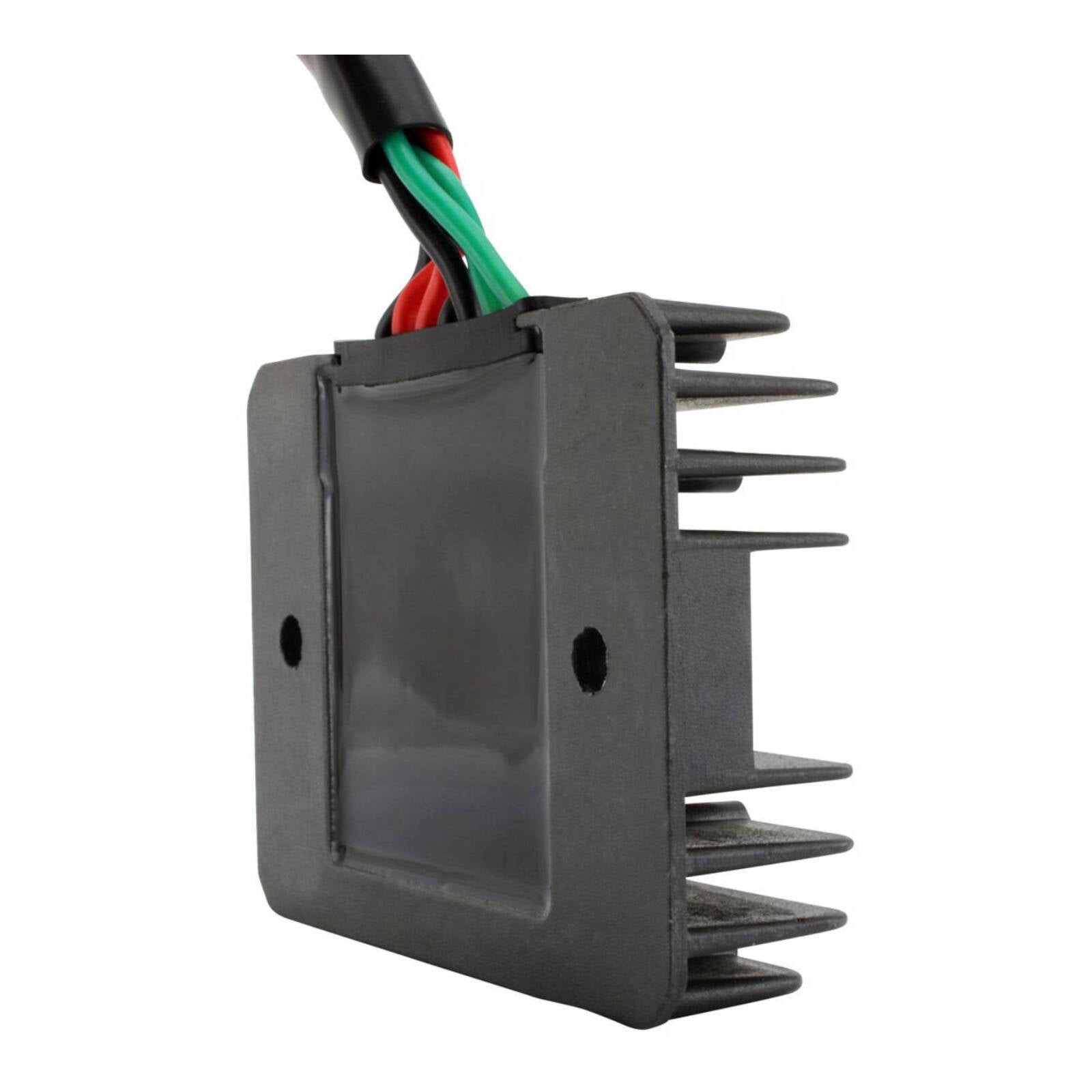

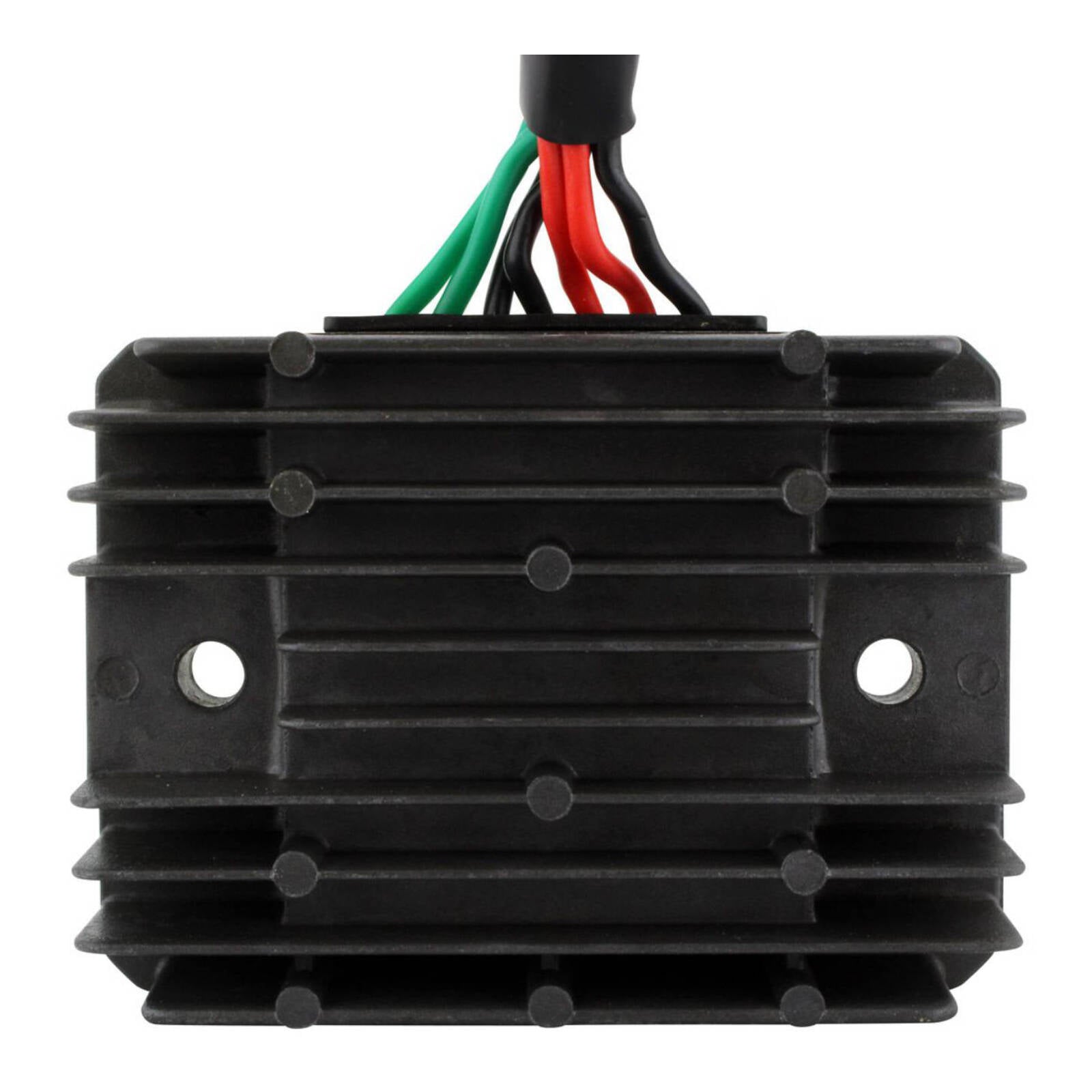

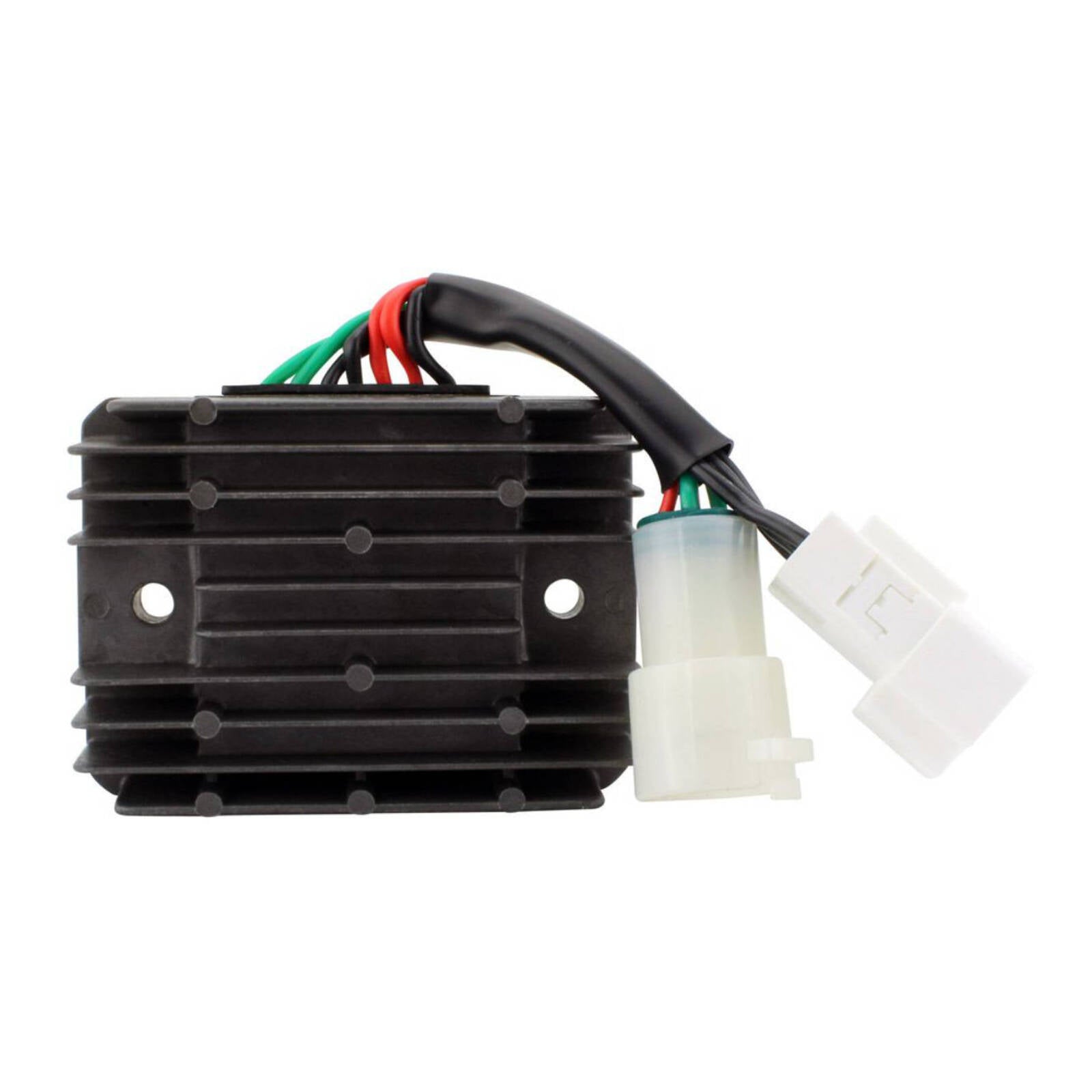

Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications:
Dimensions:
- Width: 80 mm
- Length: 110 mm
- Height: 29 mm
- Wires length: 125 mm
- Distance between fixation holes center to center: 80 mm
Other specifications:

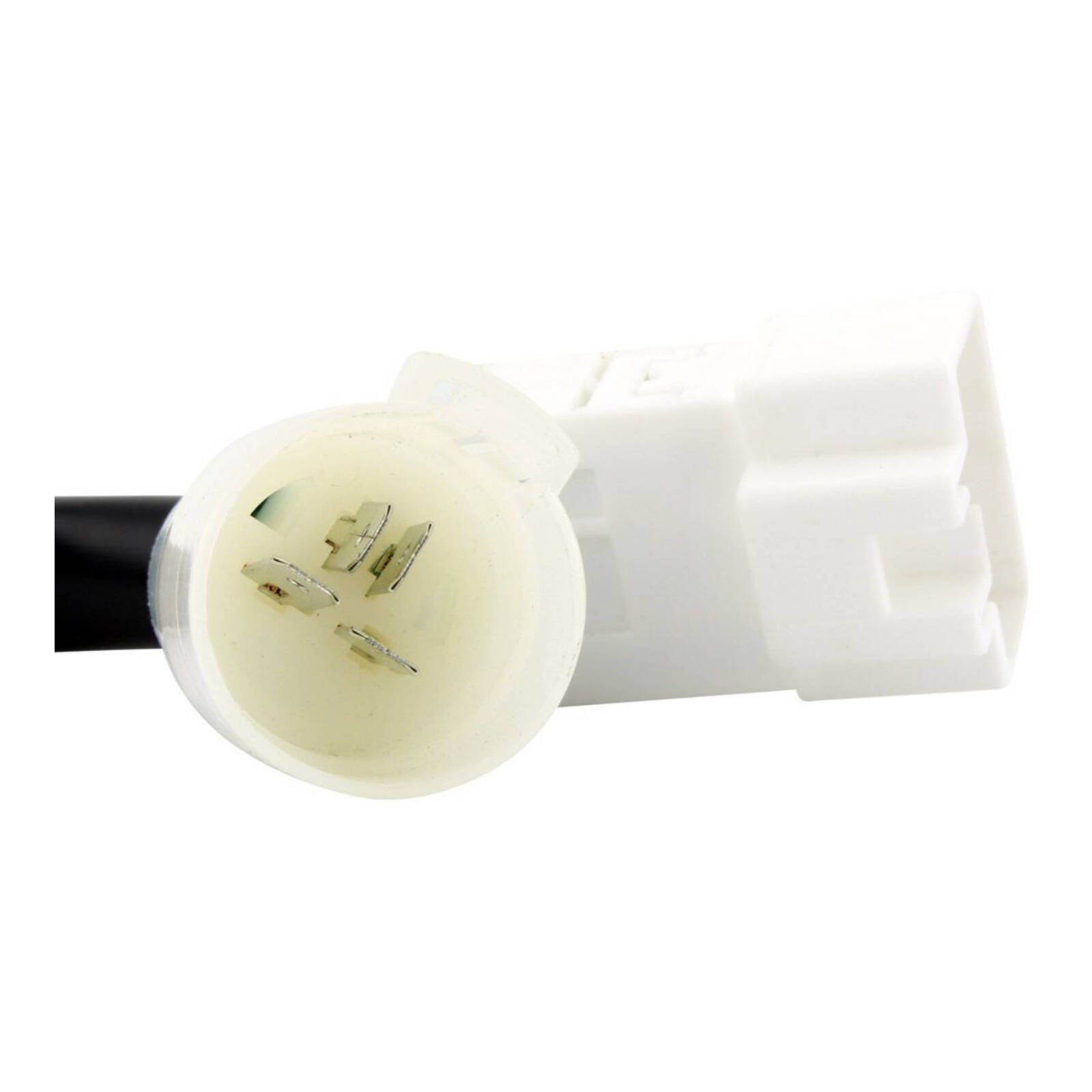

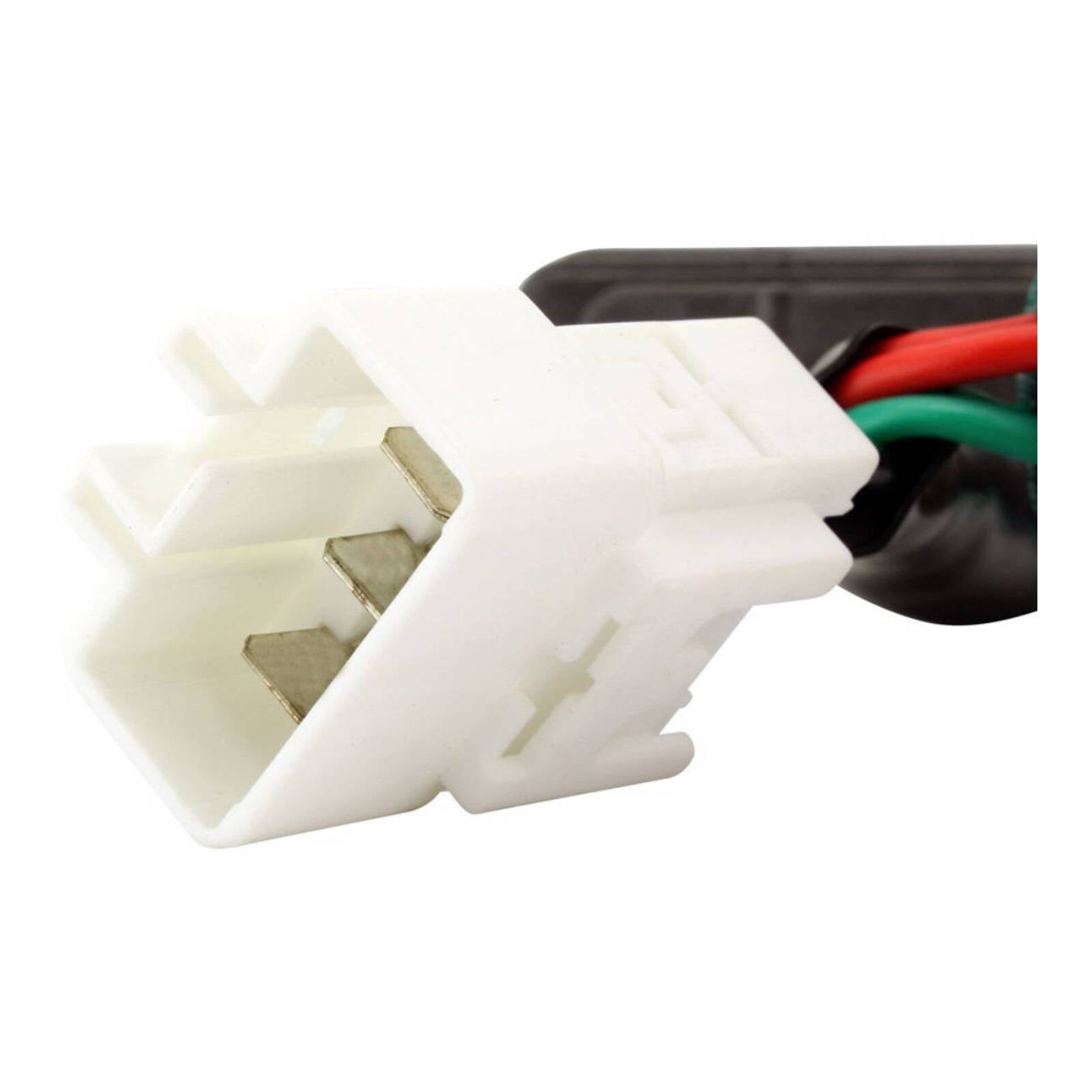

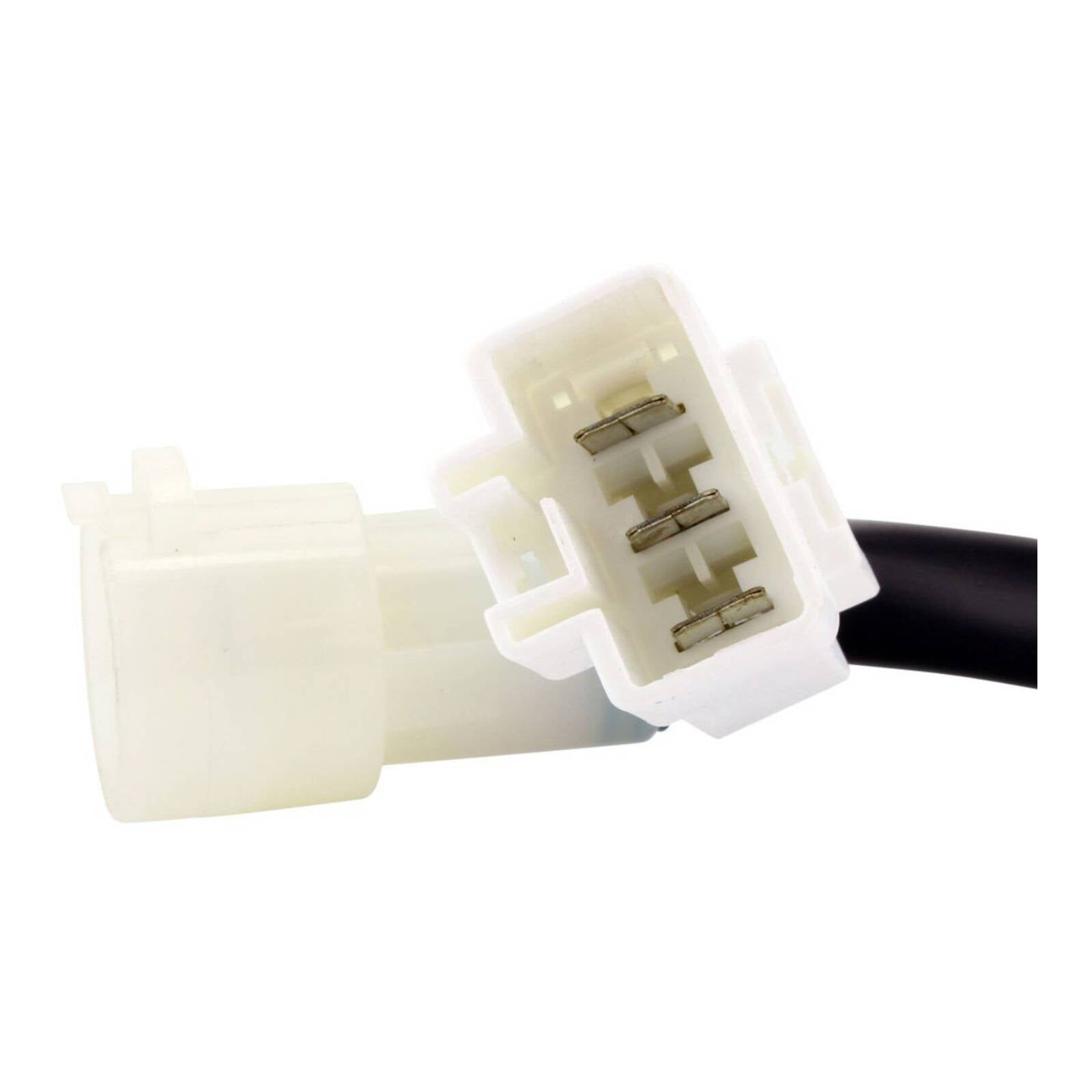

- Number of plugs: 2
- Number of pins: 7

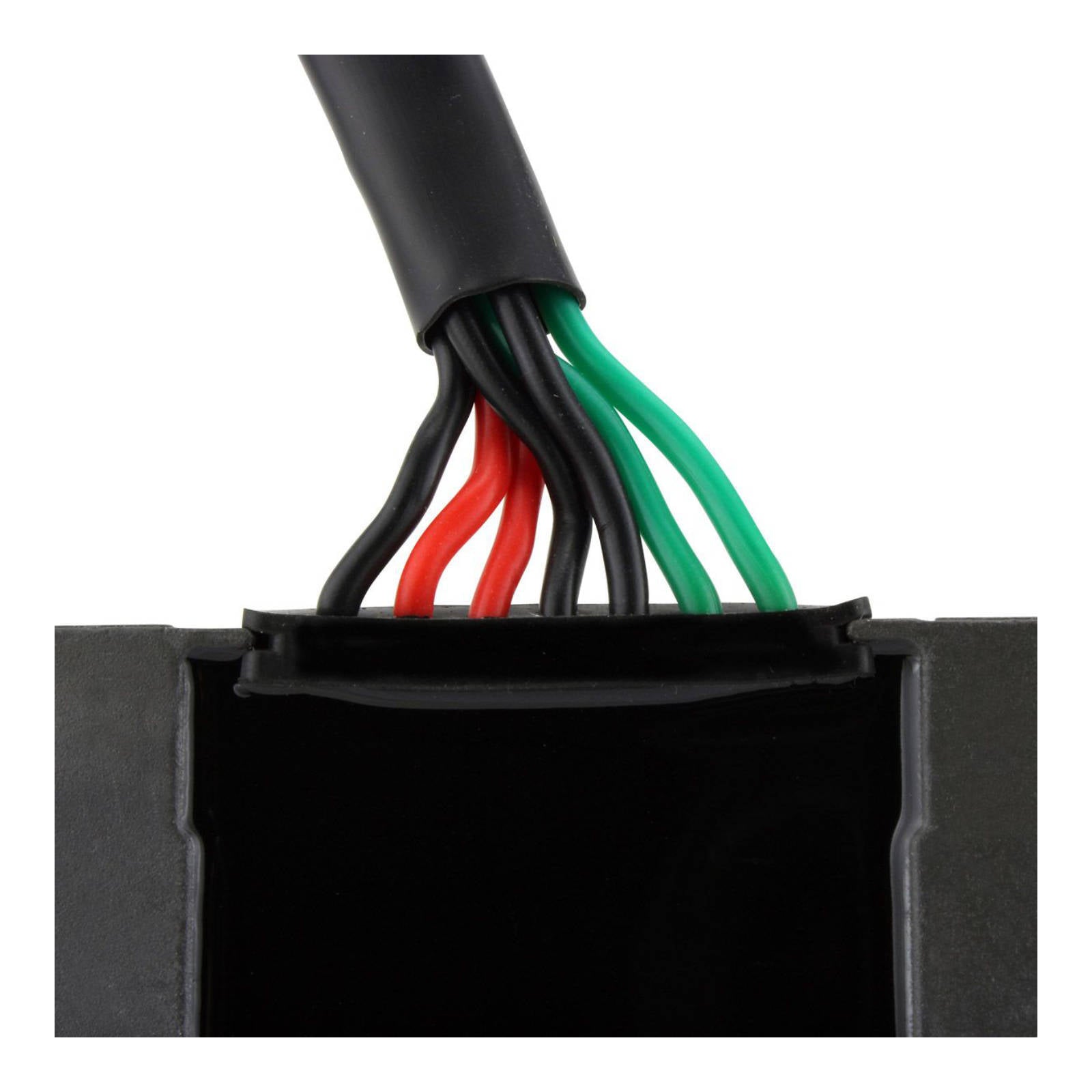

- Number of wires: 7
- Minimum Charging Voltage: 14.5 V +- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
