Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

RMSTATORSKU: RMS01596
No reviews

Price:
Sale price$429.99
Stock:
Sold out

Description

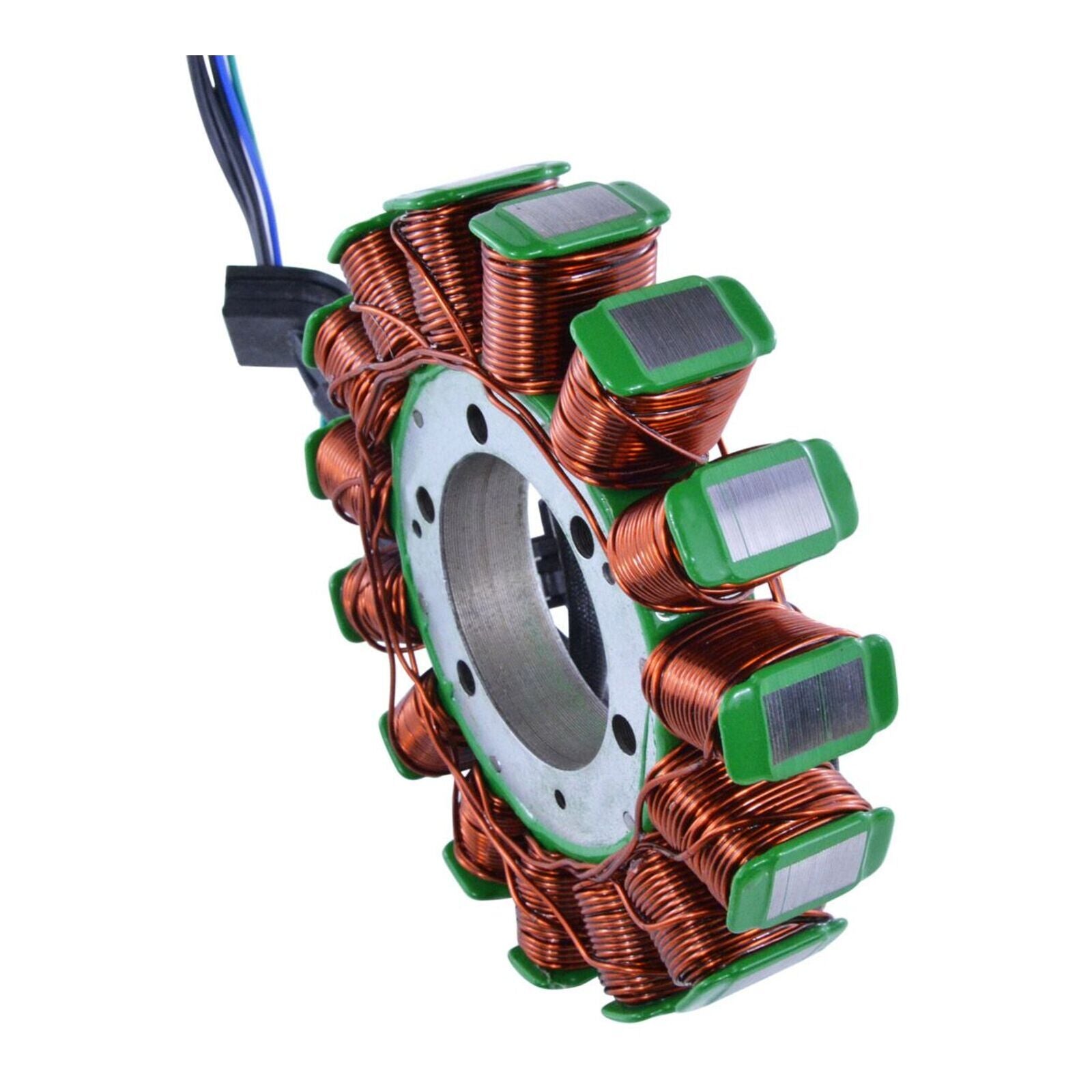

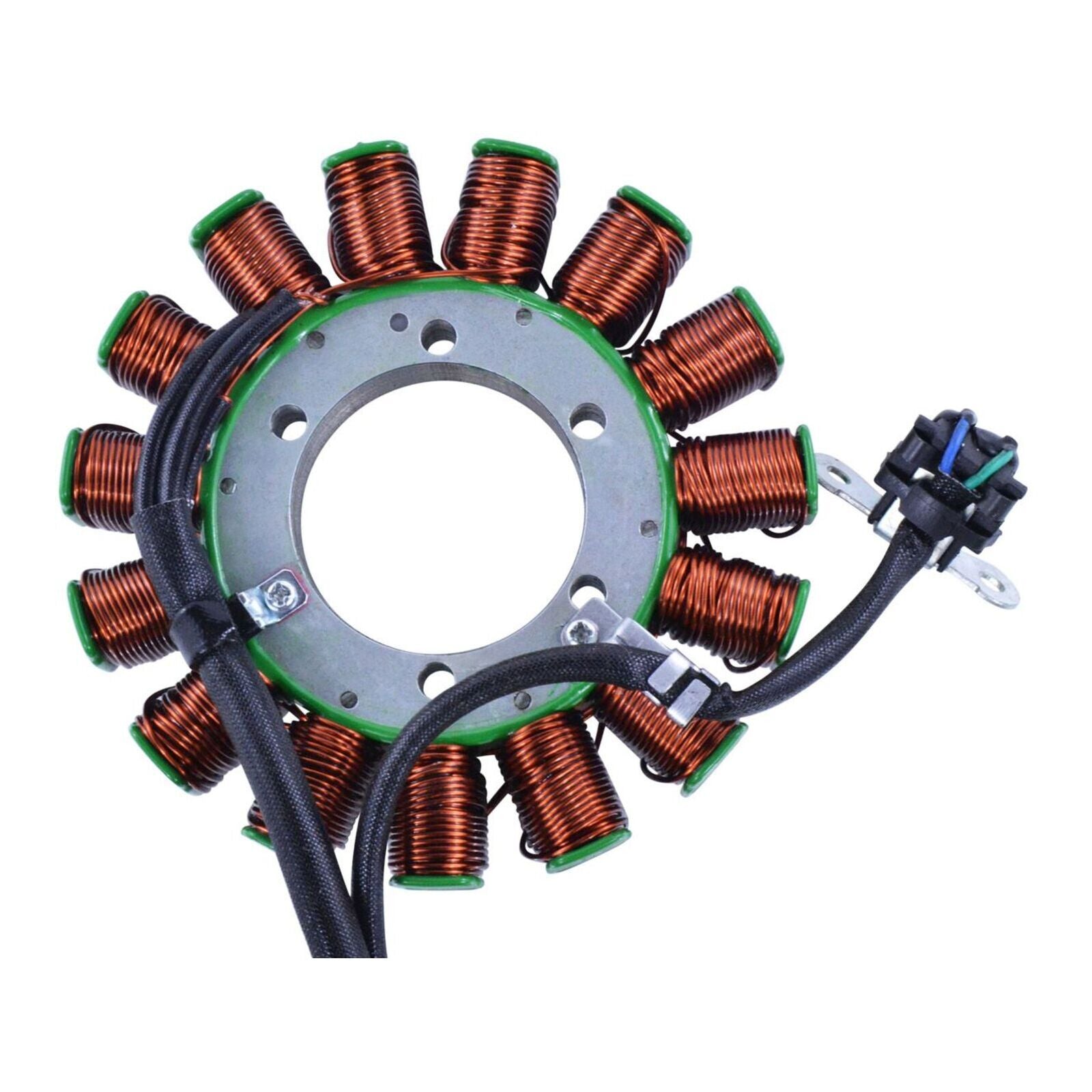

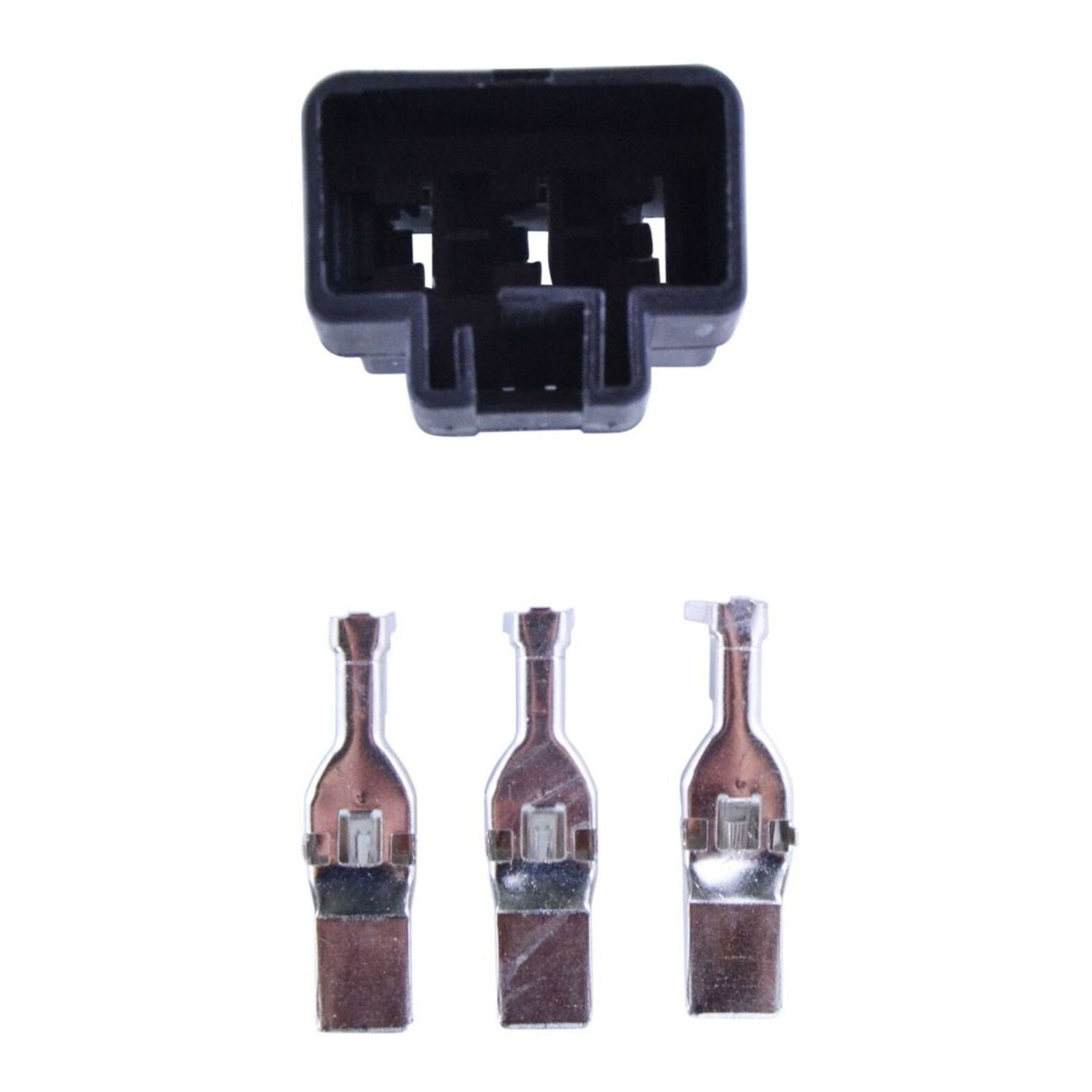

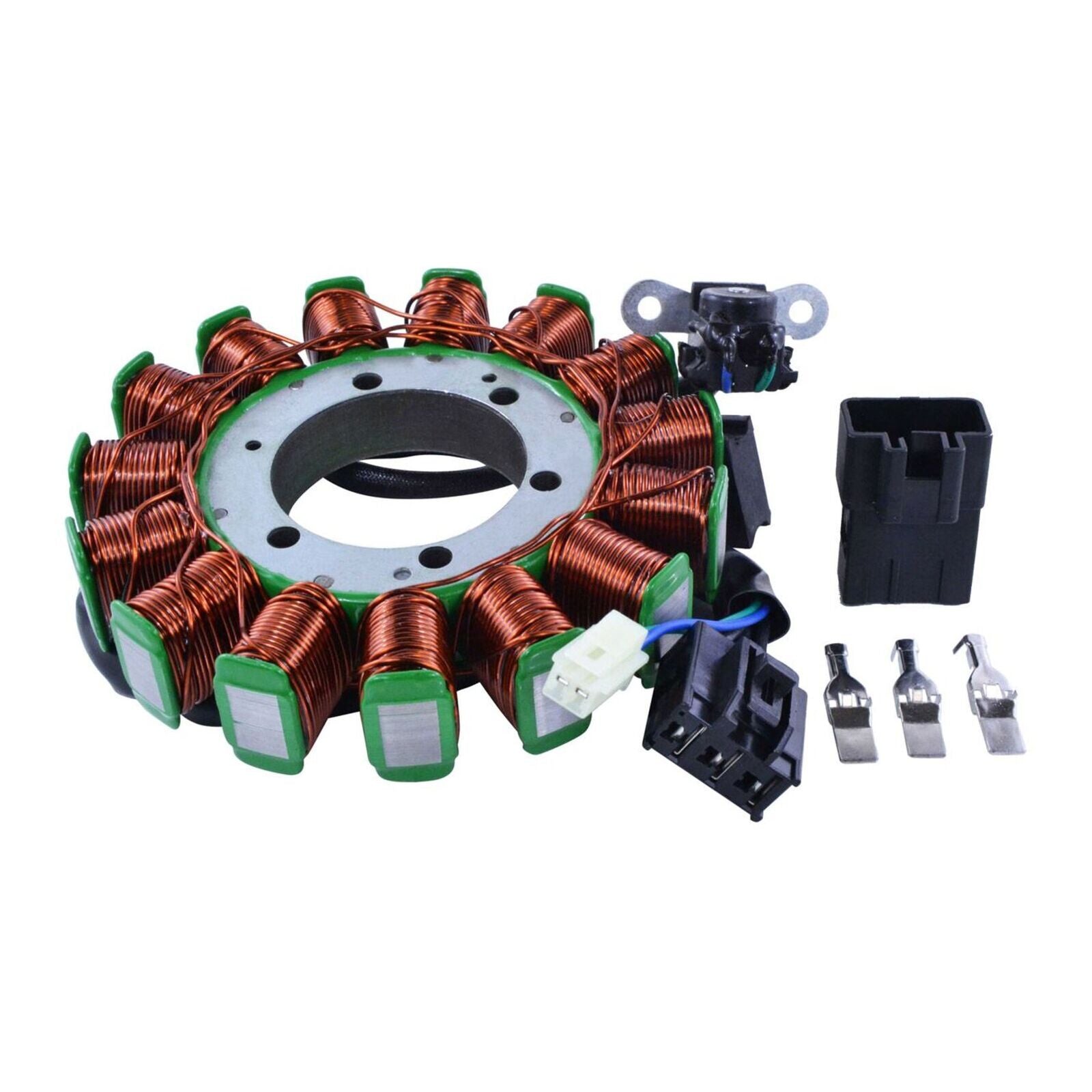

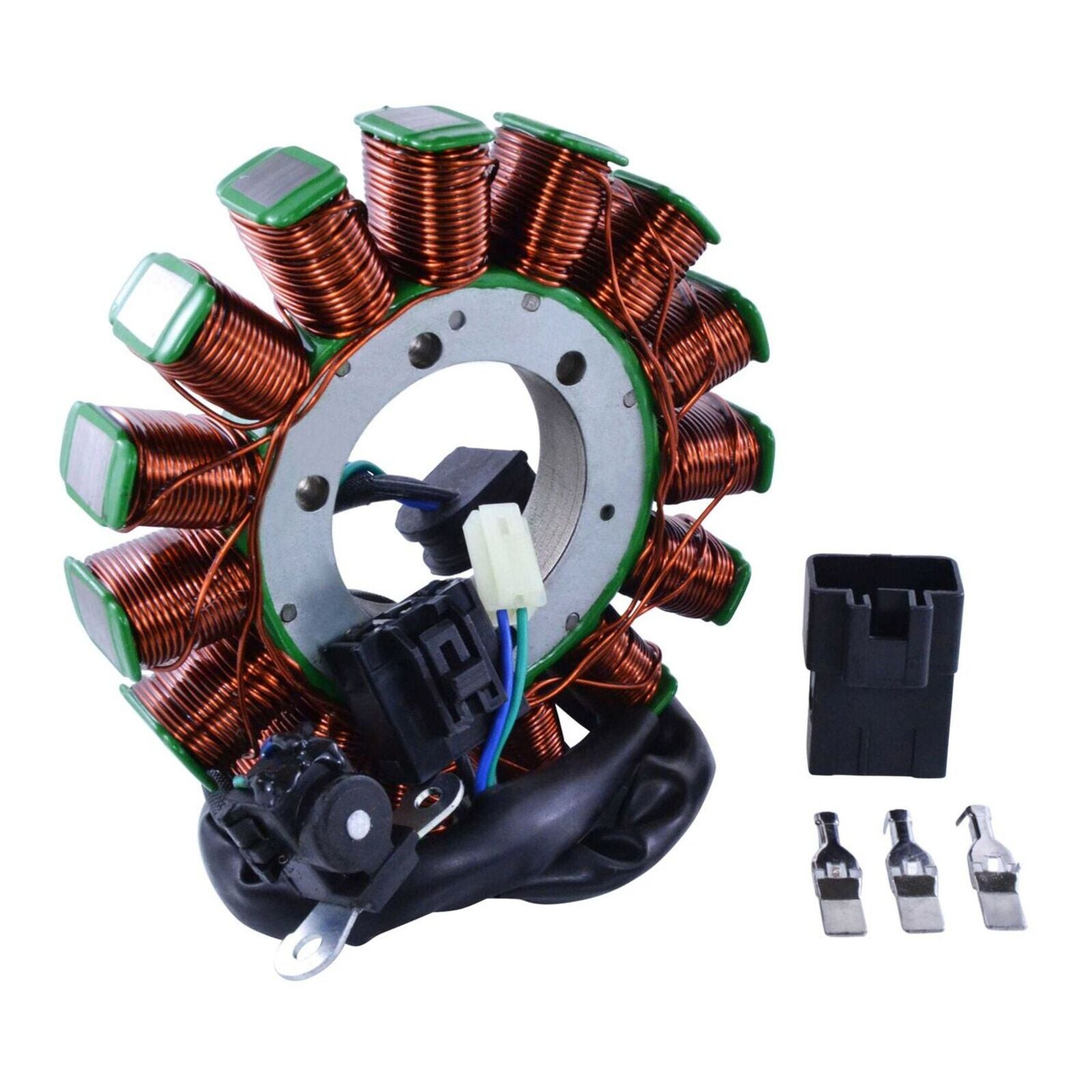

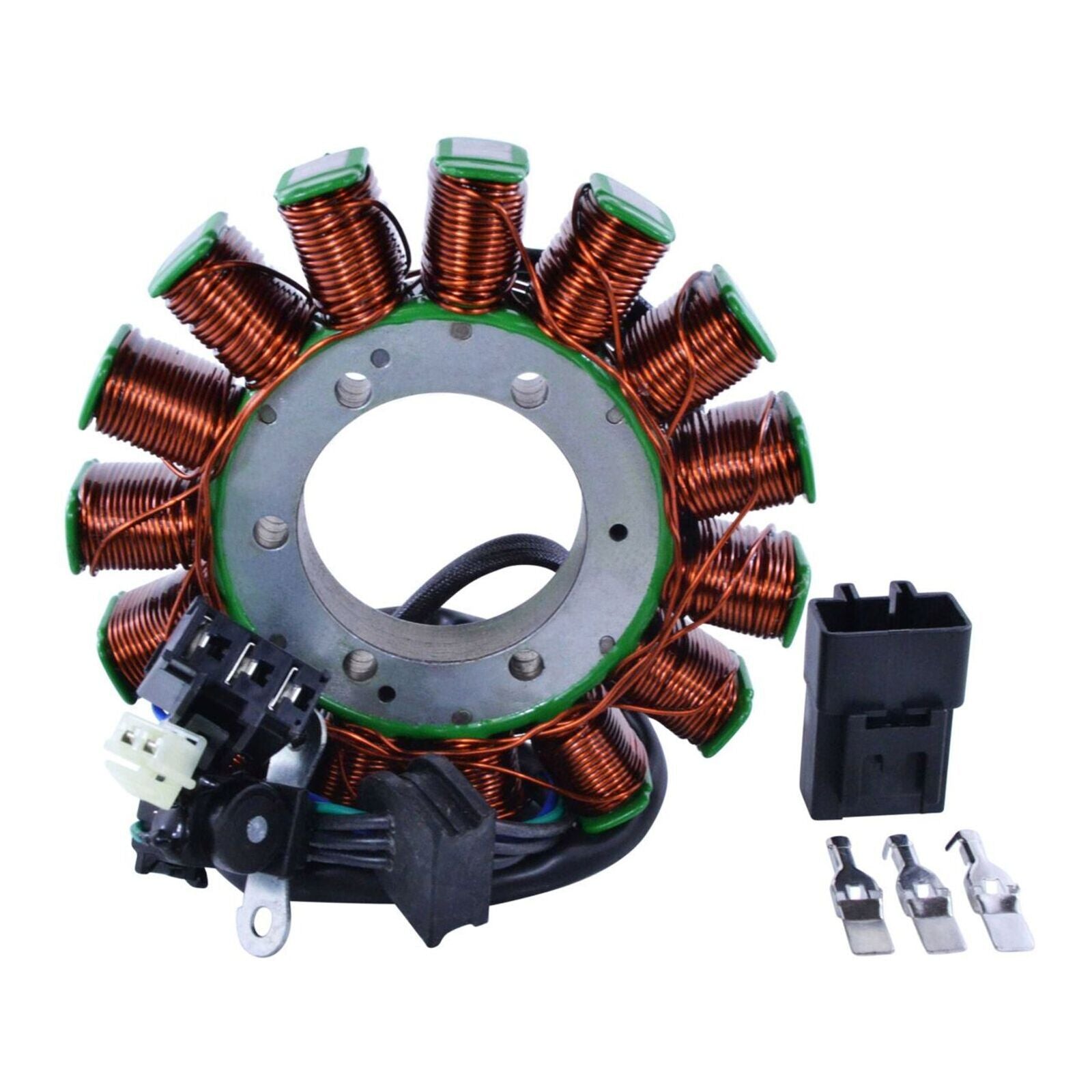

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest-grade lamination materials.

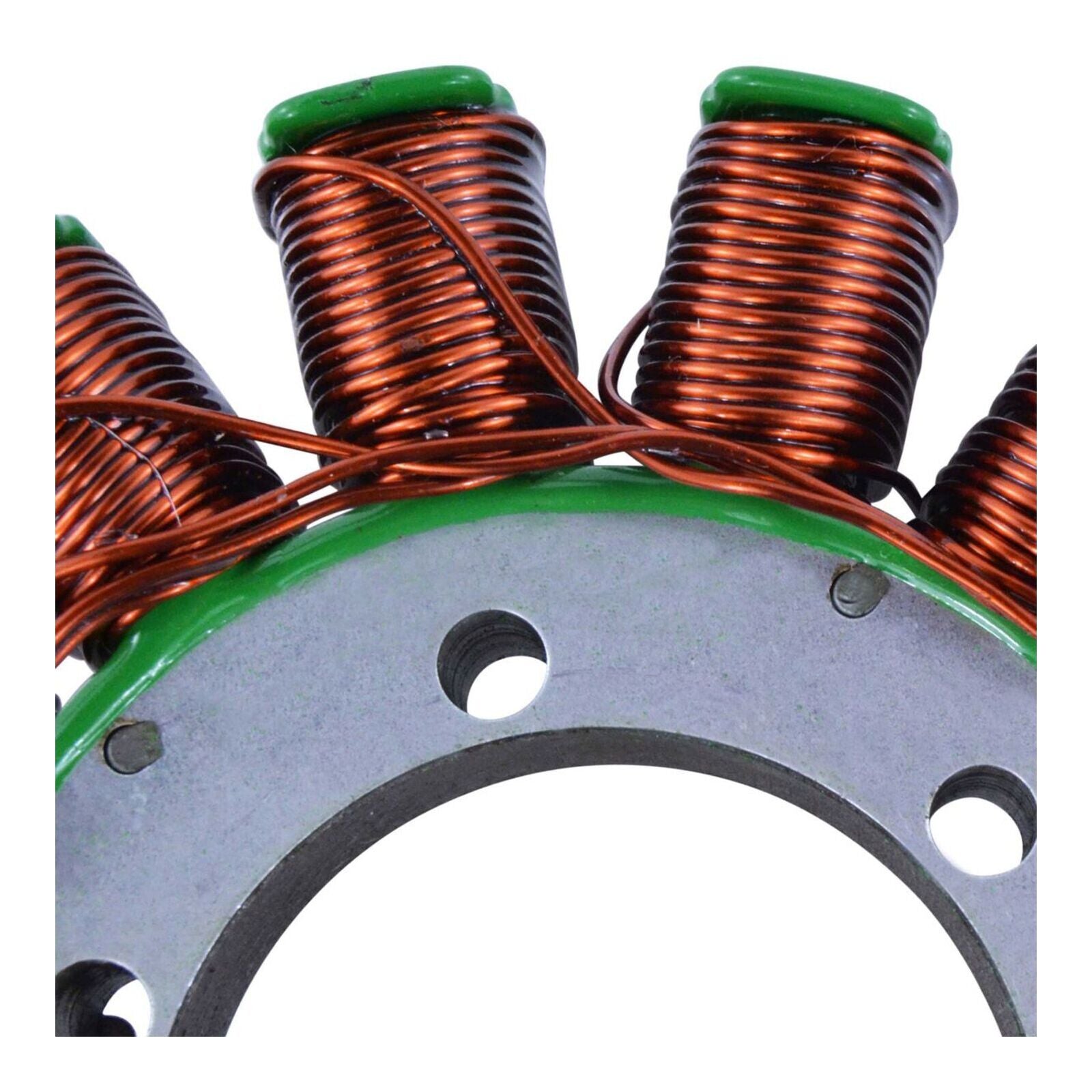

  • Highest grade copper windings, resistant to 200 degrees Celsius.

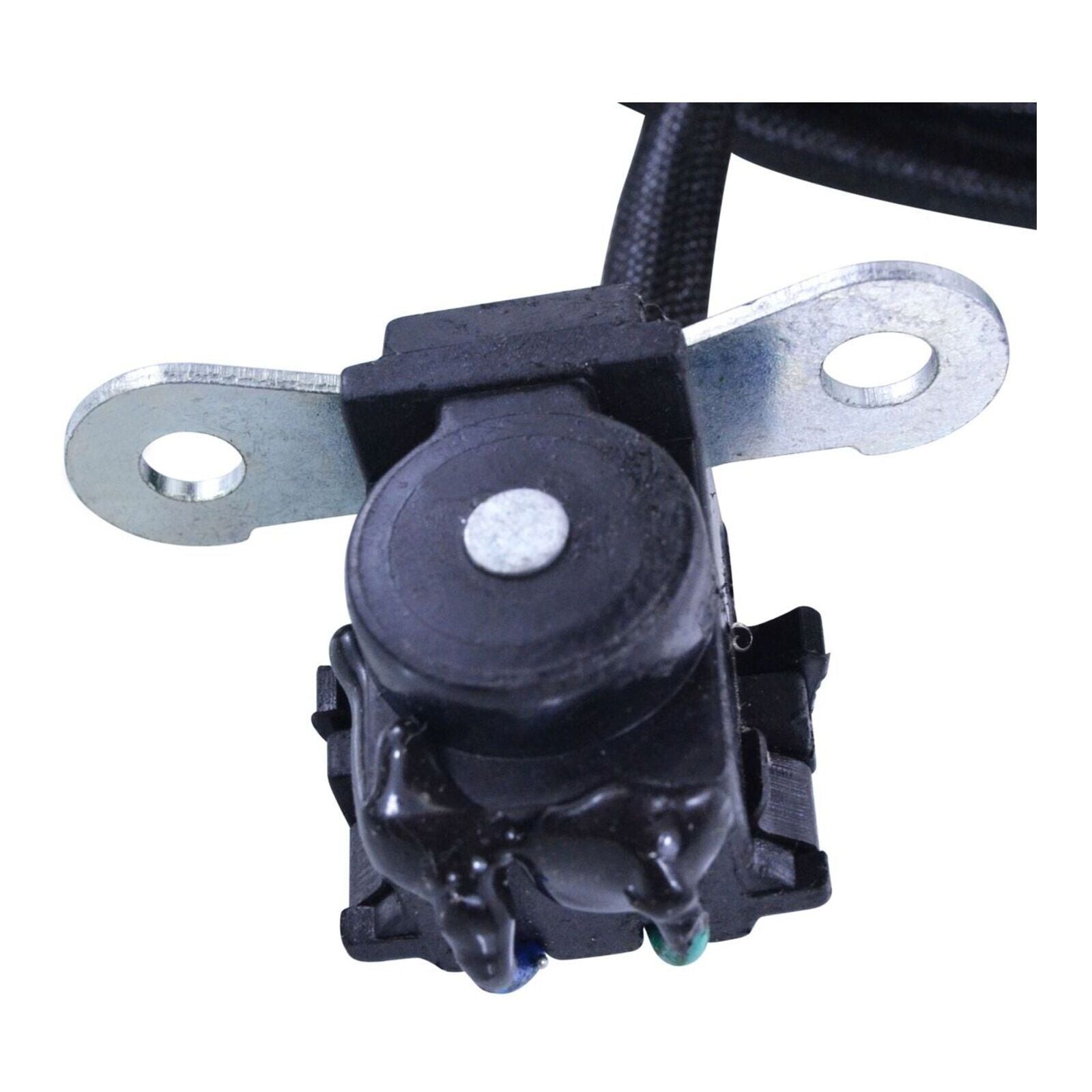

  • Pick up pulsar coil included.

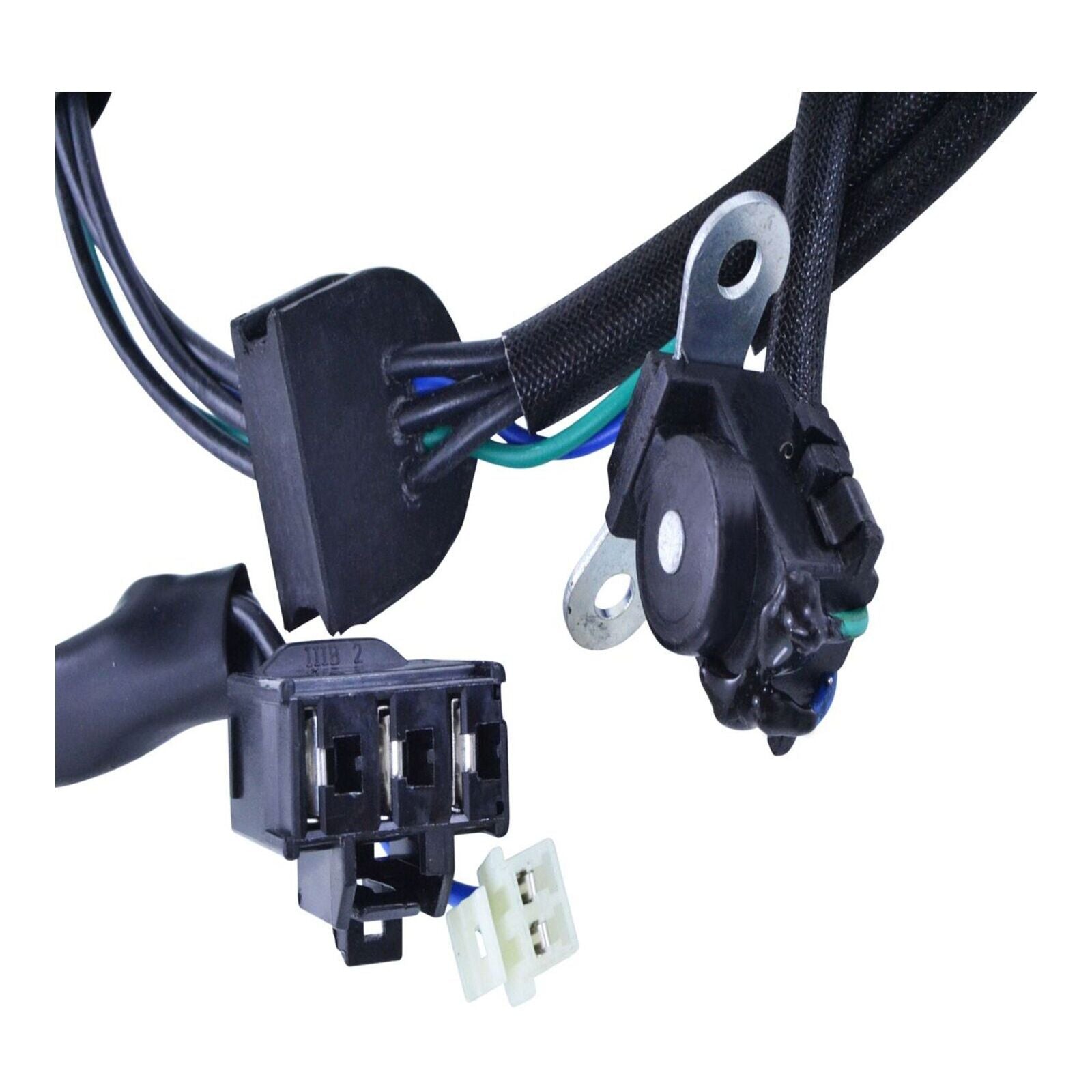

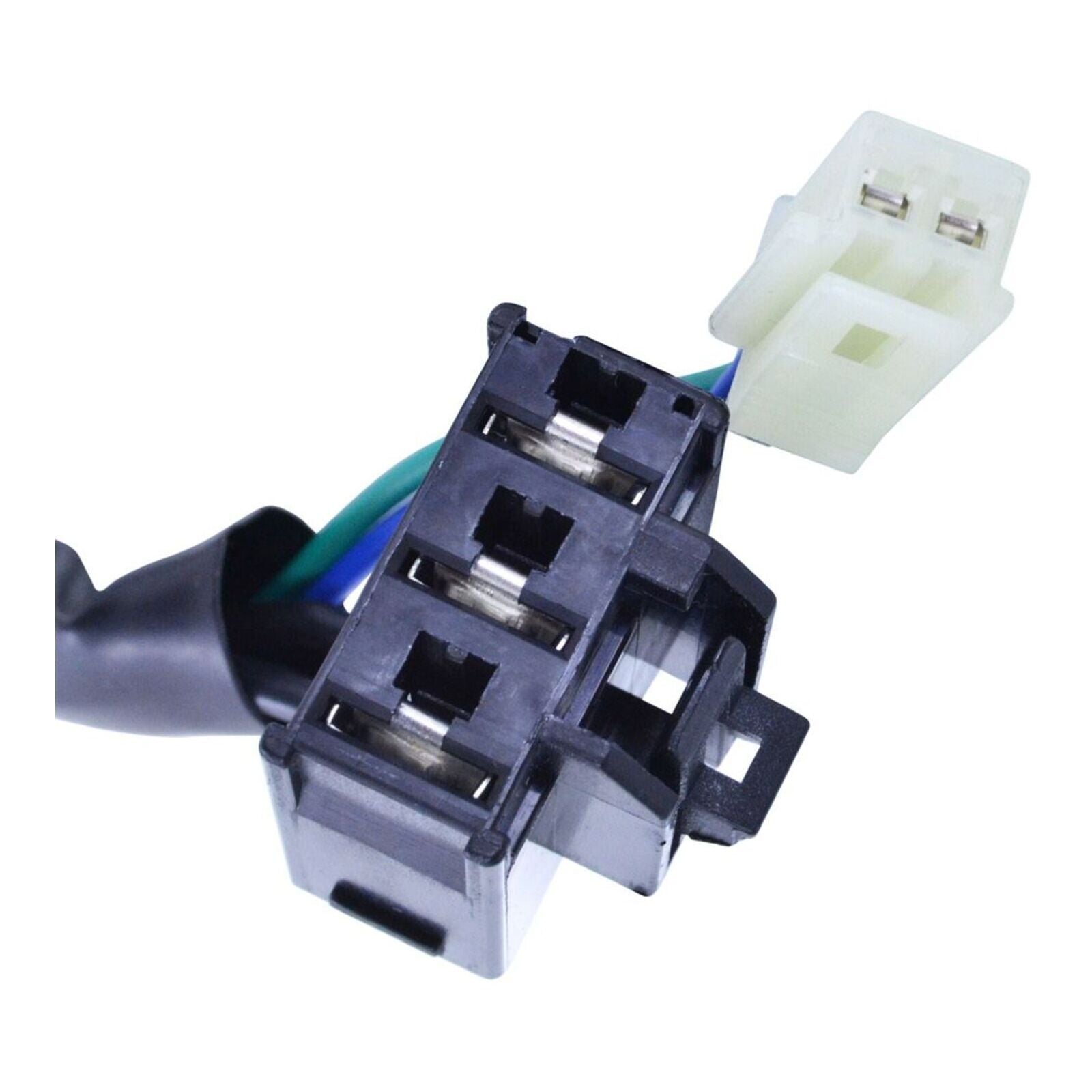

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r diameter: 54 mm
  • Exterior diameter: 140 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 420 mm
  • Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

Wire to Wire Resistance:

  • Alternator: Black to Black = 0.5 ohms ±20%
  • Pickup: Blue to Green = 239 ohms ±20%
