Description

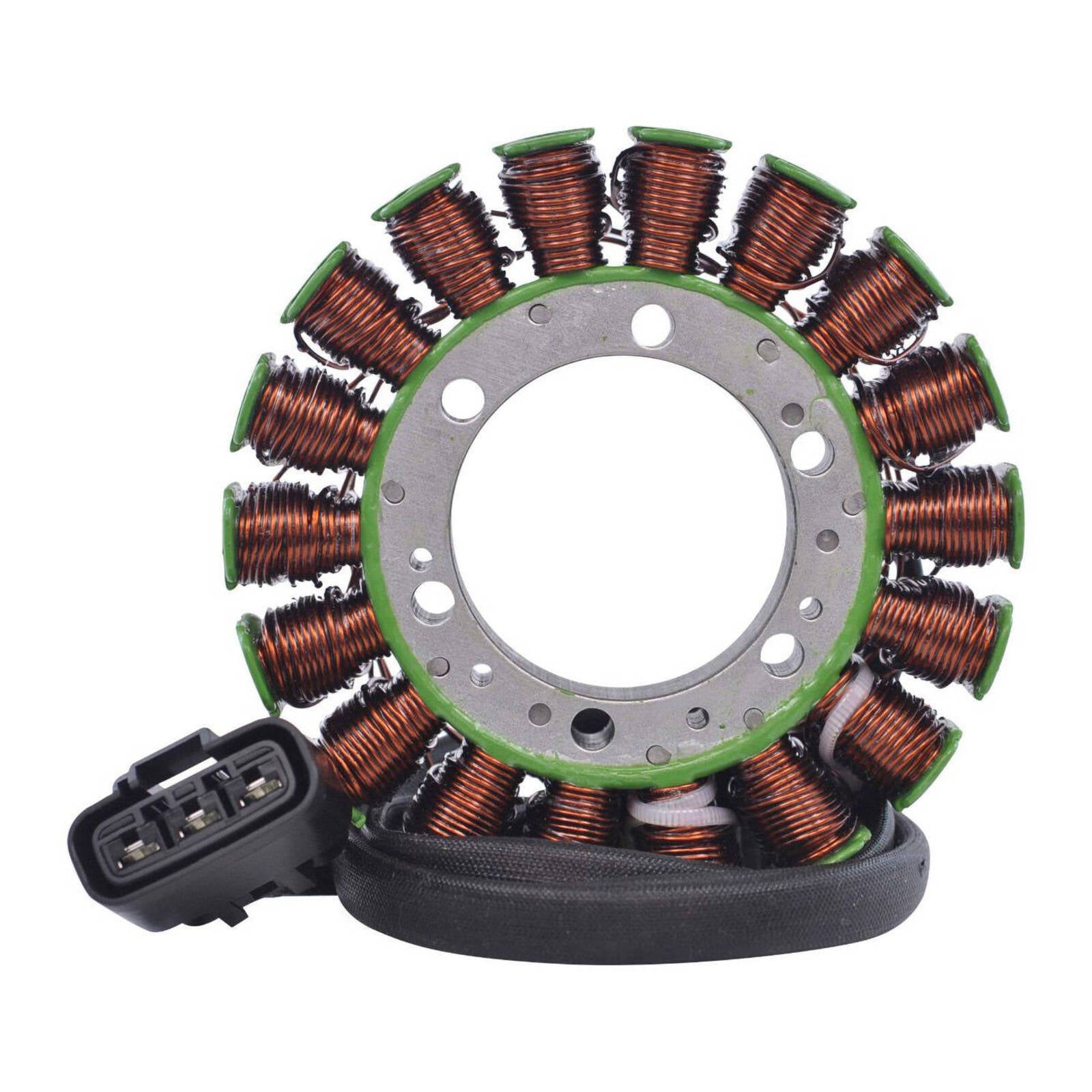

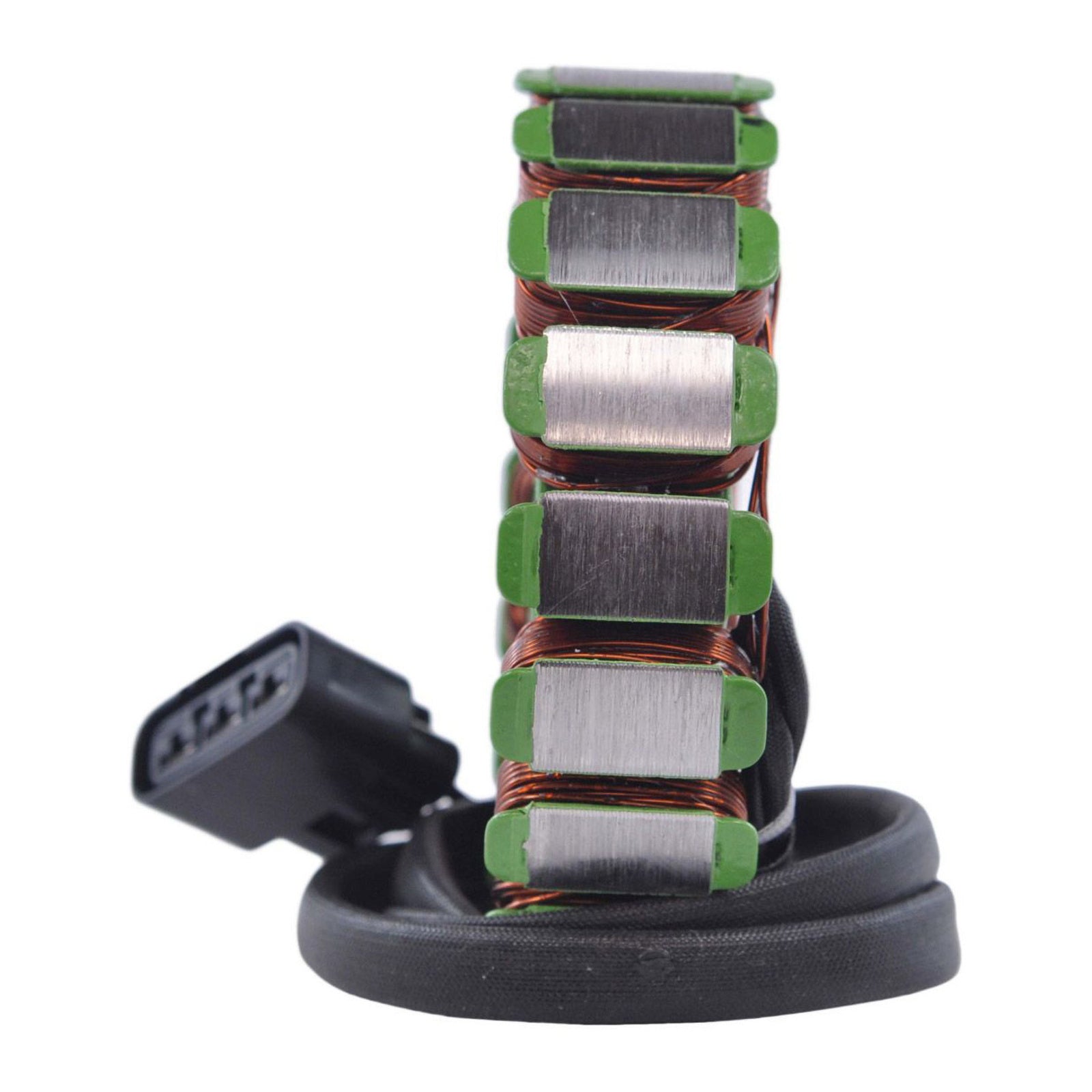

Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- All product shipped are tested
Wire resistance:
- Alternator: Black between each Black = 0.04 ohms +/- 20%
Dimension:
- Interior diameter = 54 mm
- Exterior diameter = 125 mm
- Thickness = 24 mm
Other specification:
- Number of wires = 3
- Number of terminals = 3
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
