Description

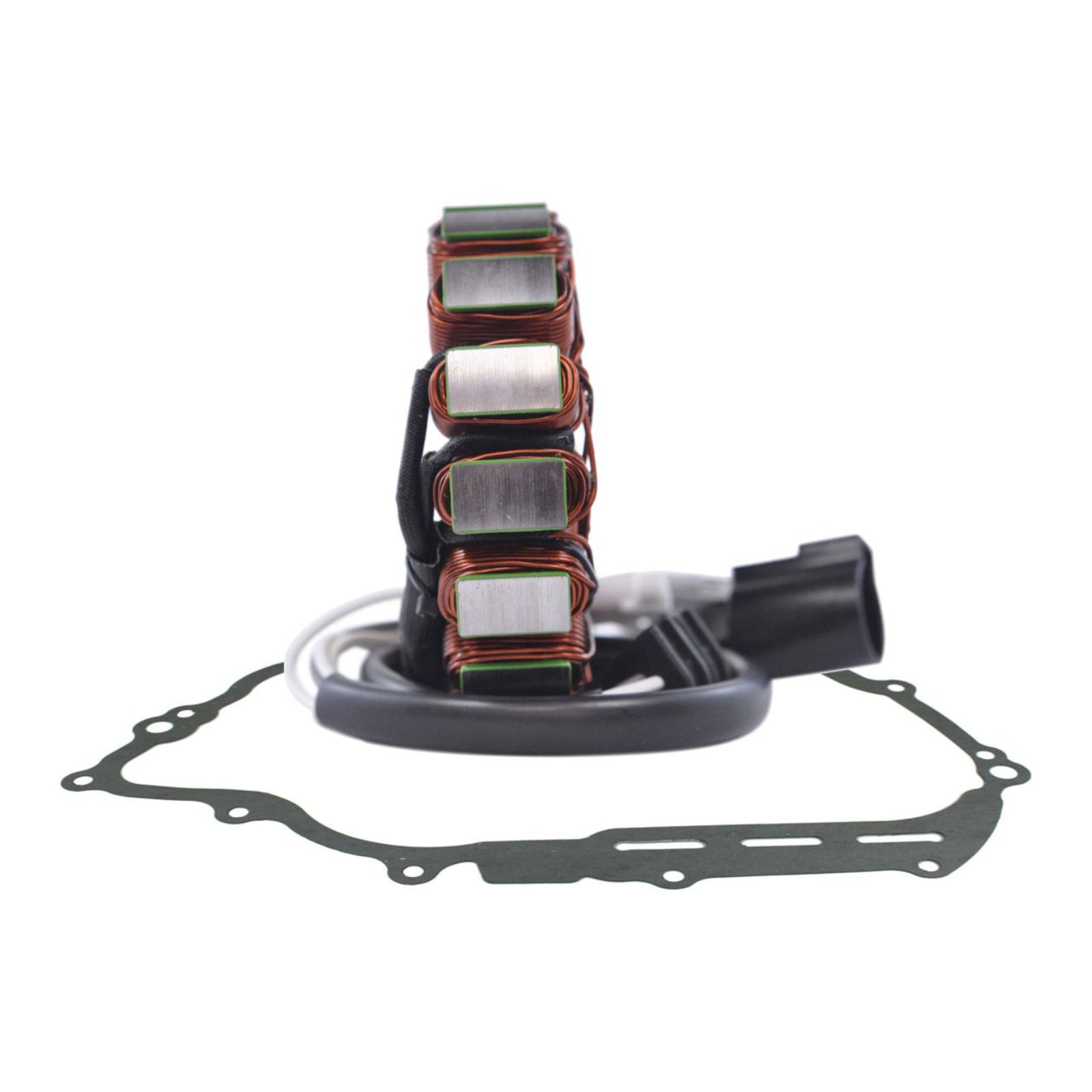

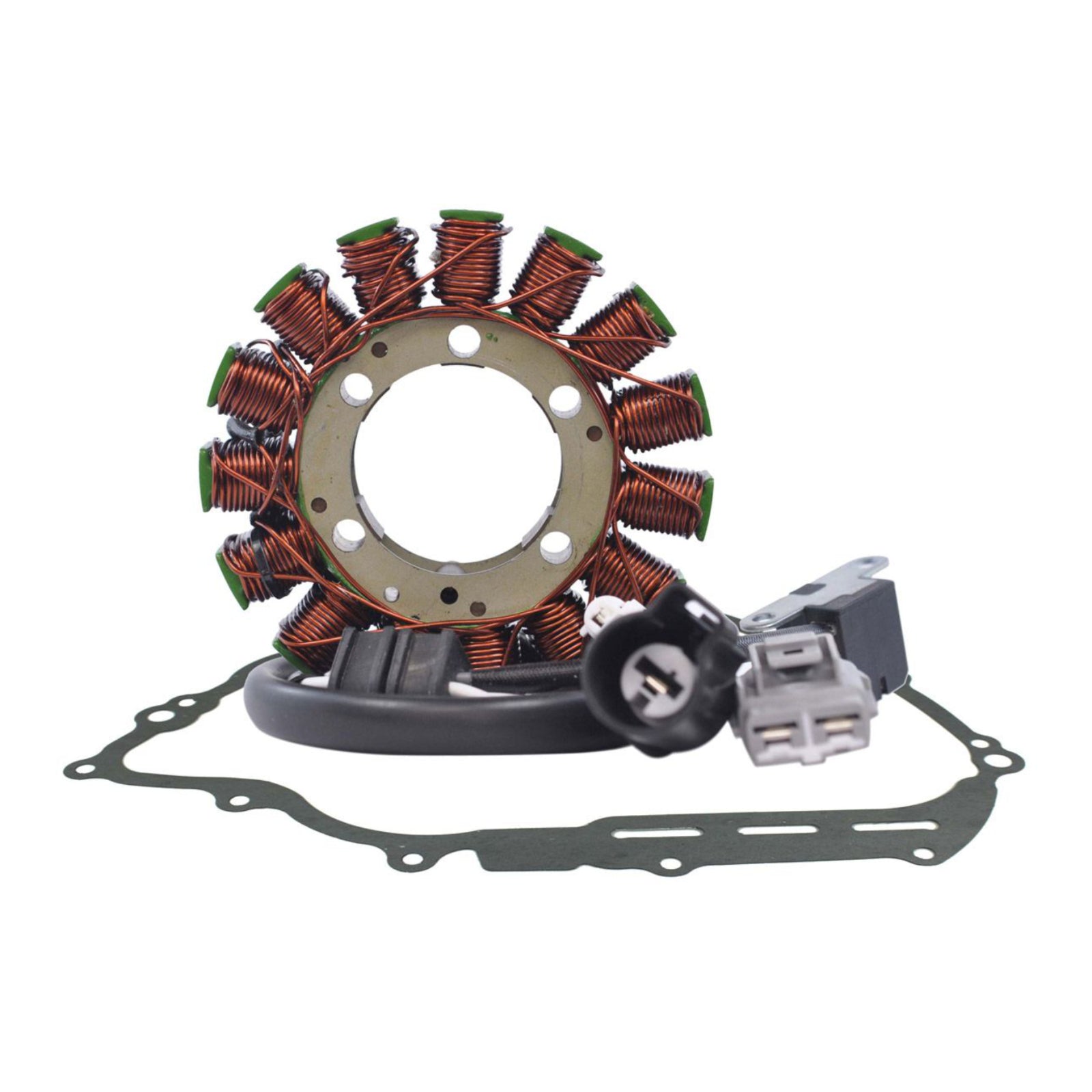

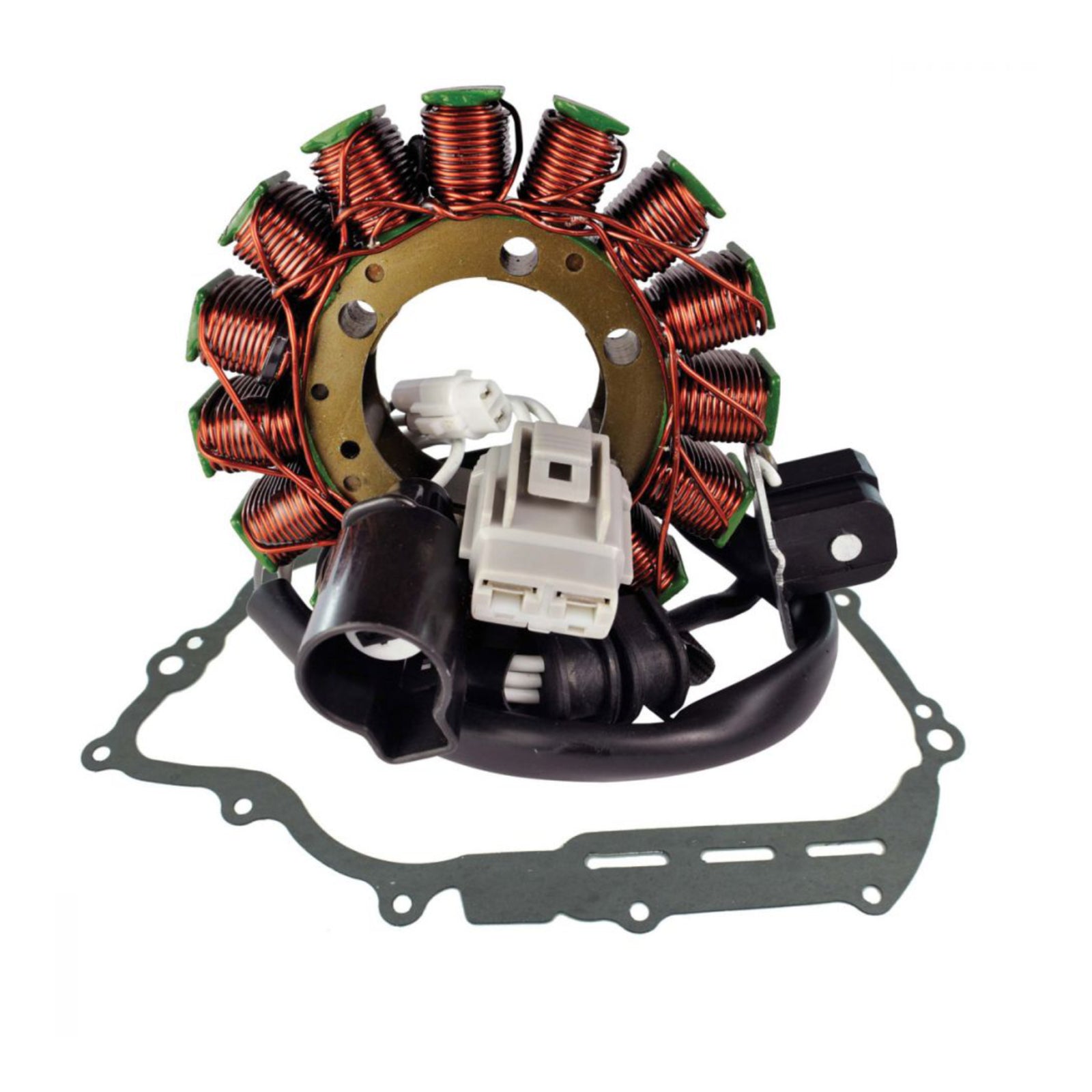

Brand new Kit Stator + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All products shipped are tested
Stator:
- The highest grade of lamination materials
- The highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

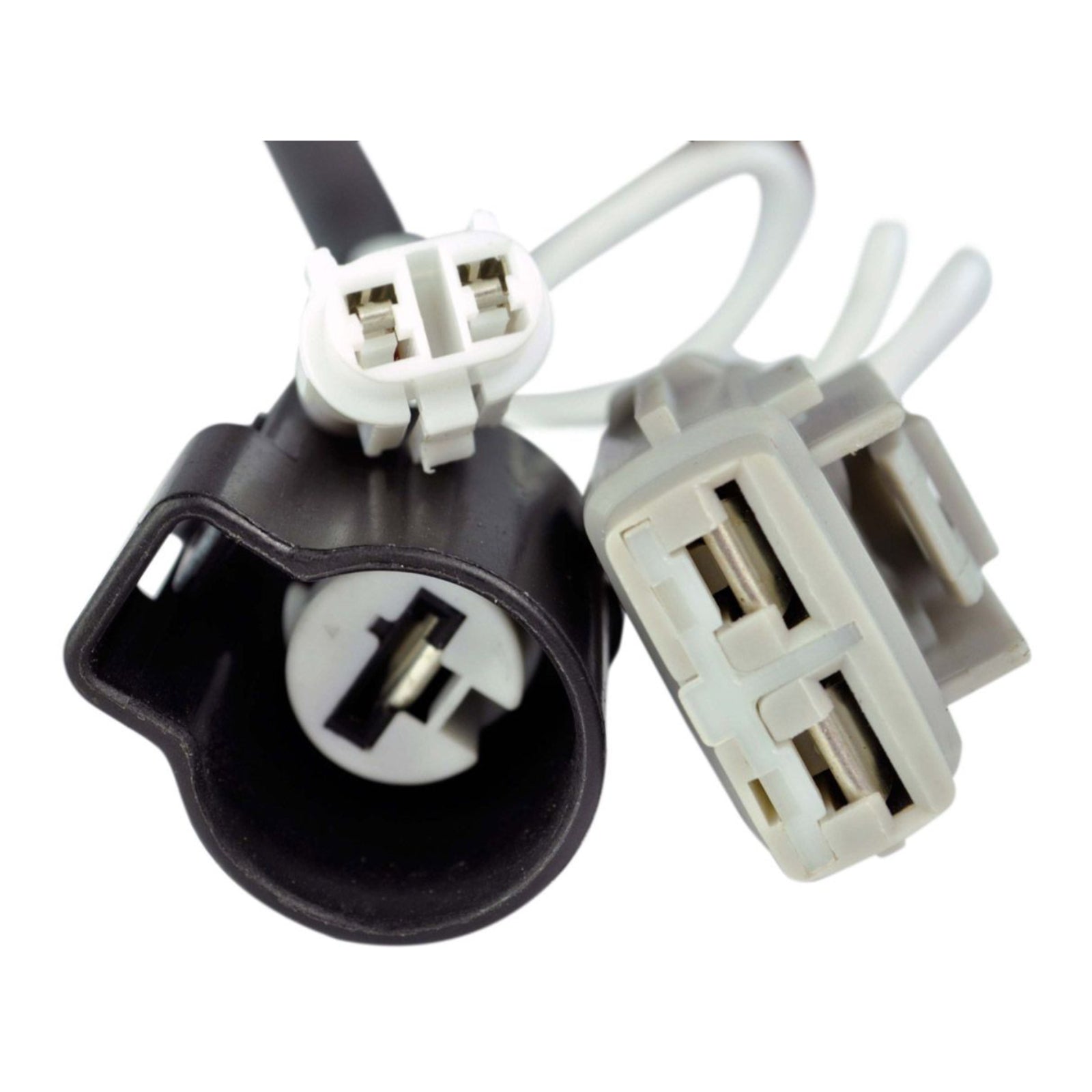

- Connector included
- Rubber grommet included
Specifications:
Dimensions Stator:
- Interior diameter: 41 mm
- Exterior diameter: 105 mm
- Thickness: 19 mm
- Length of wires stator to grommet: 65 mm
- Length of wires grommet to plug: 400 mm
- Length of pickup coil's wire to grommet: 65 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 3
- Number of pins: 5
Wire-to-wire resistance:
- Alternator: White to White = 0.4 ohms +/-20%
- Pickup: White to Grey = 500 ohms +/-20%
