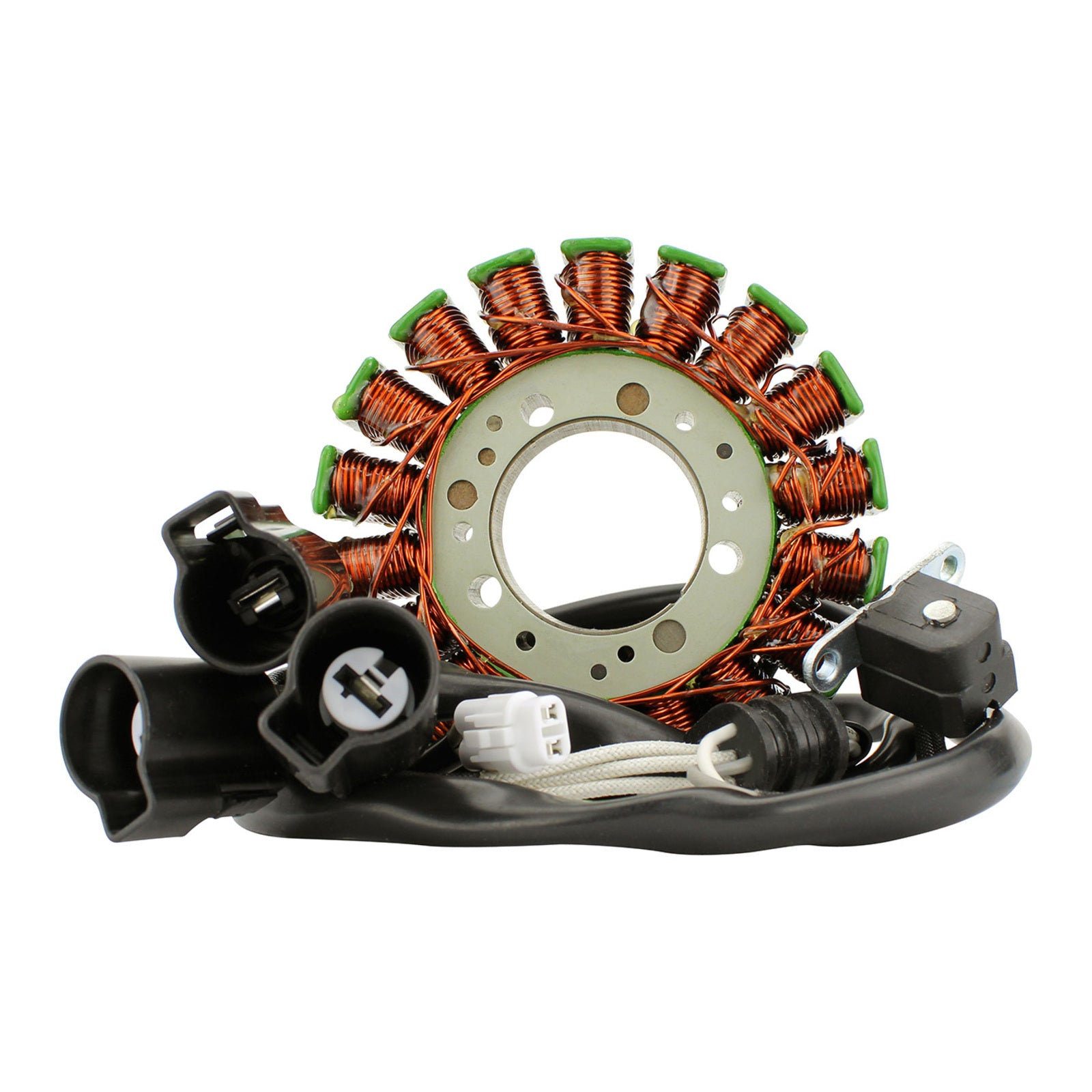

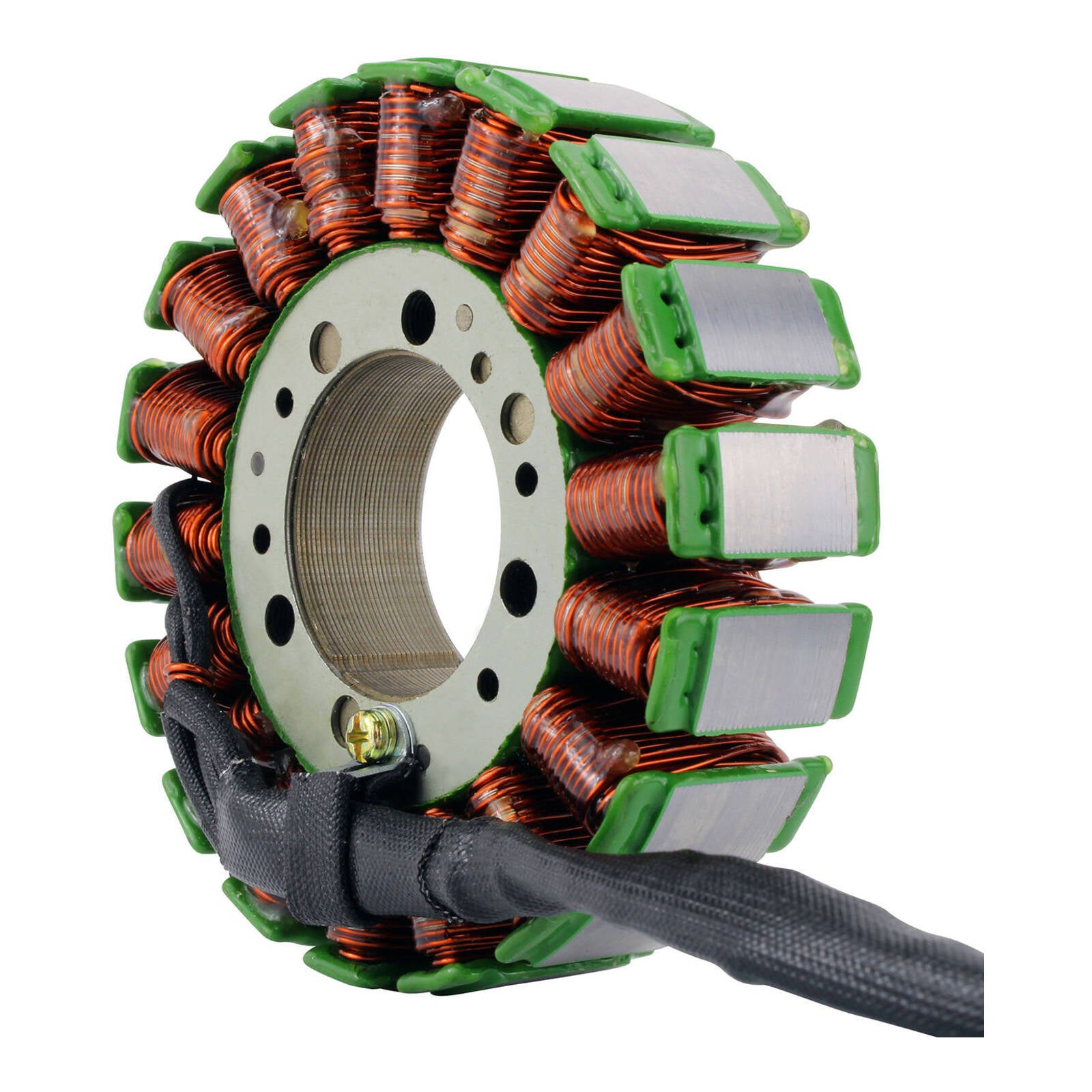

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

RMSTATORSKU: RMS010107076
No reviews
Price:
$459.99
Stock:
Only 2 units left

Description

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 23 mm
  • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 1020 mm
  • Length of pickup coil's wire to grommet: 110 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 4
    • Number of pins: 5
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator: White to White = 0.5 ohms +-20%
    • Pickup: Black to Grey = 512 ohms +-20%
