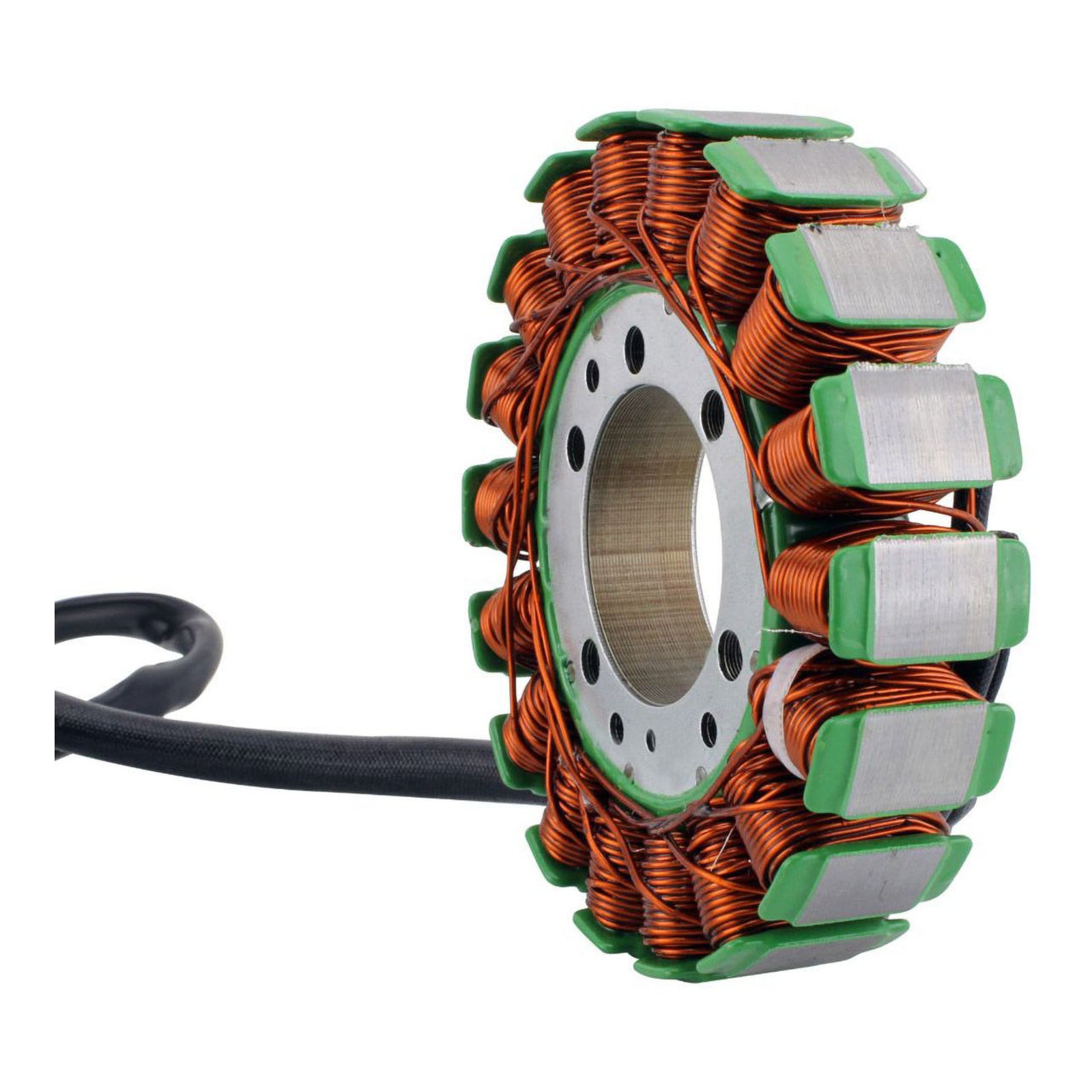

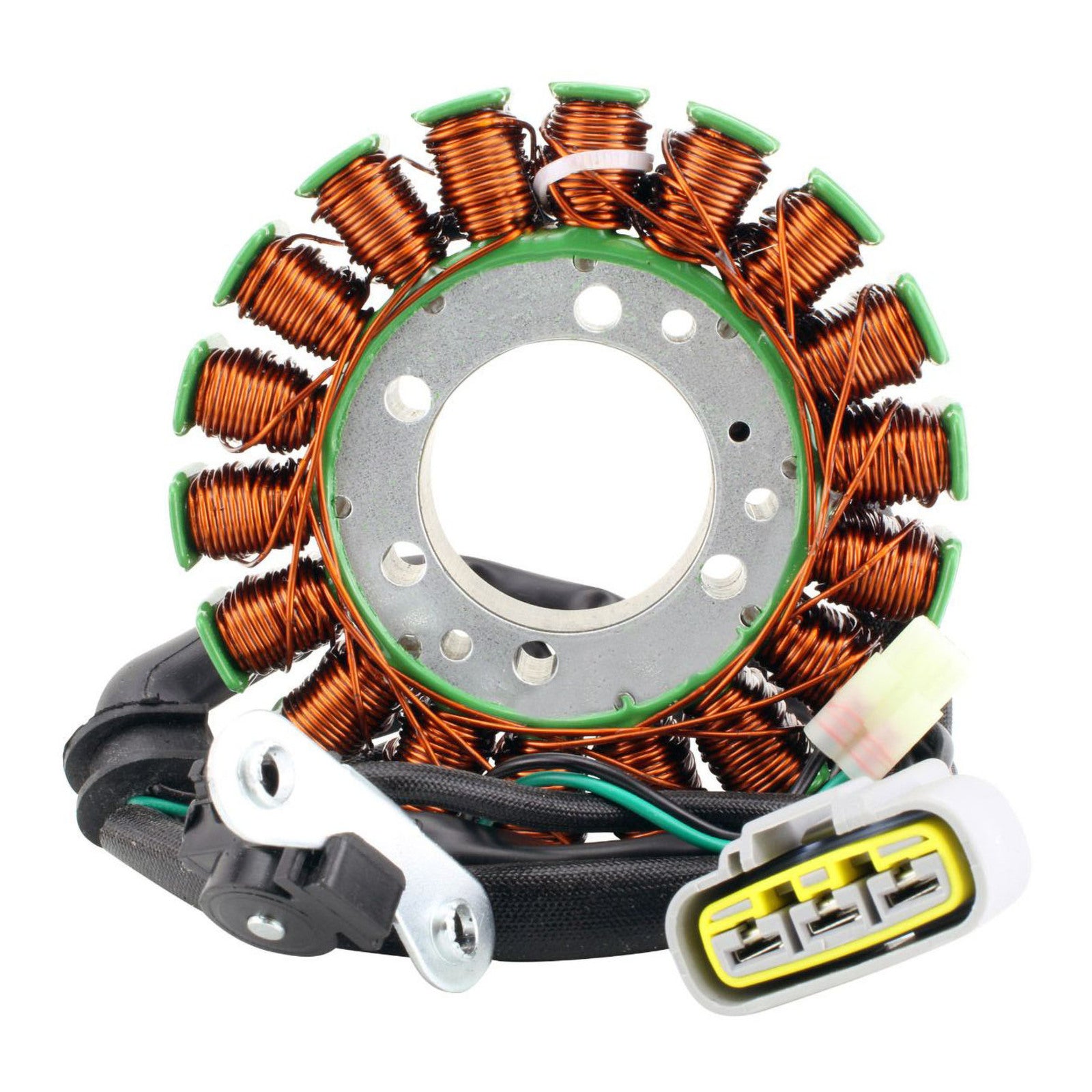

STATOR ASSTD TRI MODELS RFR FITMENTS (RMS010-106948)

RMSTATORSKU: RMS010106948
No reviews

Price:
Sale price$399.99
Stock:
Only 2 units left

Description

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

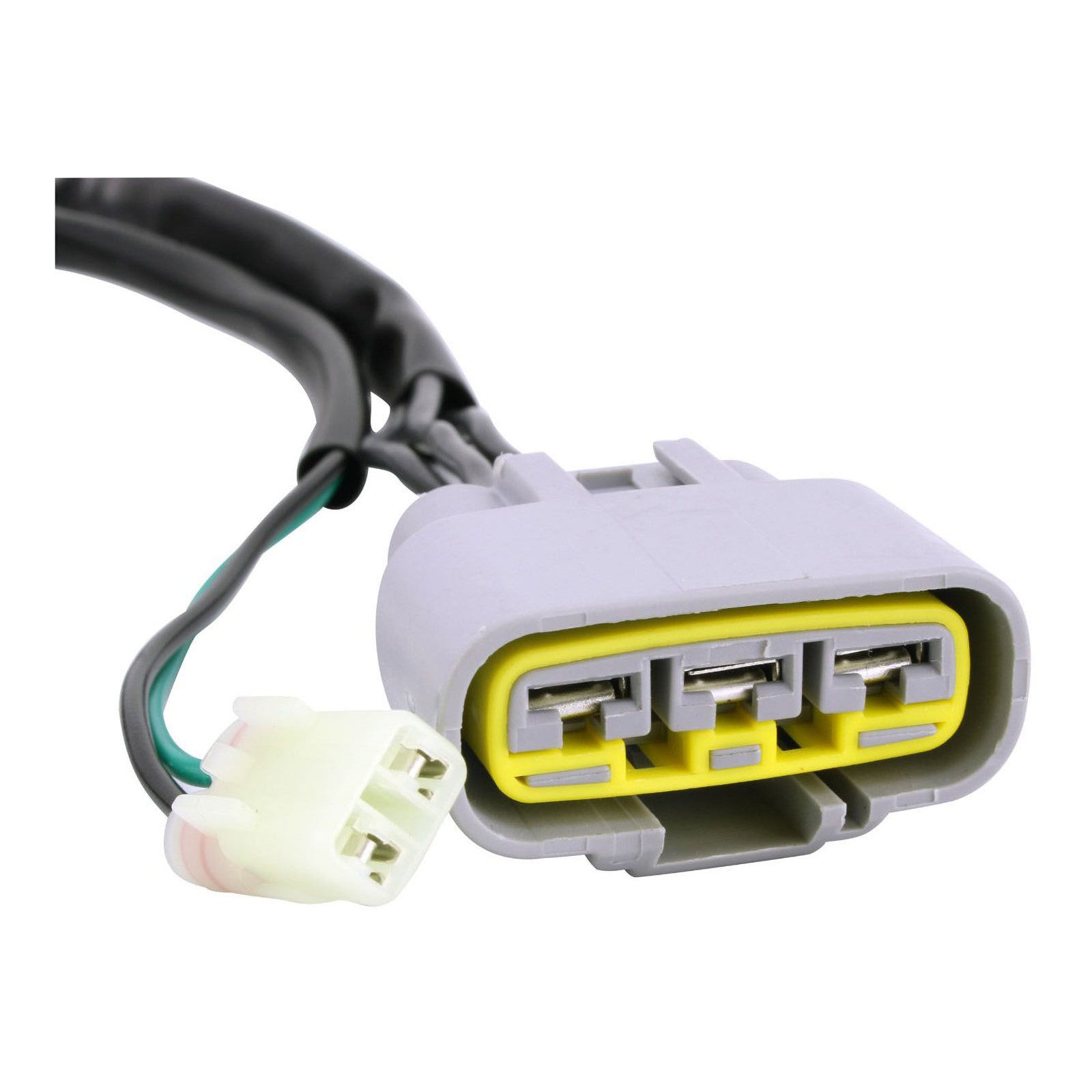

  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 115mm
  • Thickness: 16mm
  • Length of wires stator to grommet: 250mm
  • Length of wires grommet to plug # 1: 195mm
  • Length of wires grommet to plug # 2: 500mm
  • Length of pickup coil's wire to grommet: 280mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Between each Black = 0.6 ohms +-20%
  • Pickup: Green To Grey = 244 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. There are multiple possible stators for the 2007 to 2018 Street Triple. This stator will only fit on:
    • Street Triple Standard This part will only fit Street triple Standard with a VIN HIGHER than 560477 and with an engine number LOWER than 616232 or BETWEEN 624373 and 626866. If your vehicle has a VIN LOWER than 354281, please refer to RM01348. If your vehicle has a VIN BETWEEN 354282 and 560476, please refer to RM01389. If your vehicle has a VIN higher than 560477 and an engine number between 616233 and 624372 or higher than 626867, refer to RMS010-10391.
    • Street Triple R 2008 to 2020 This part will only fit Street Triple R with a VIN HIGHER than 45677 and an engine # LOWER than 616232 or Higher than 624373 . For a vehicle with a VIN LOWER than 560476, refer to RM01389. For a vehicle with a VIN HIGHER than 560477 and an engine # BETWEEN 616233 and 624372, refer to OEM T1303139.
