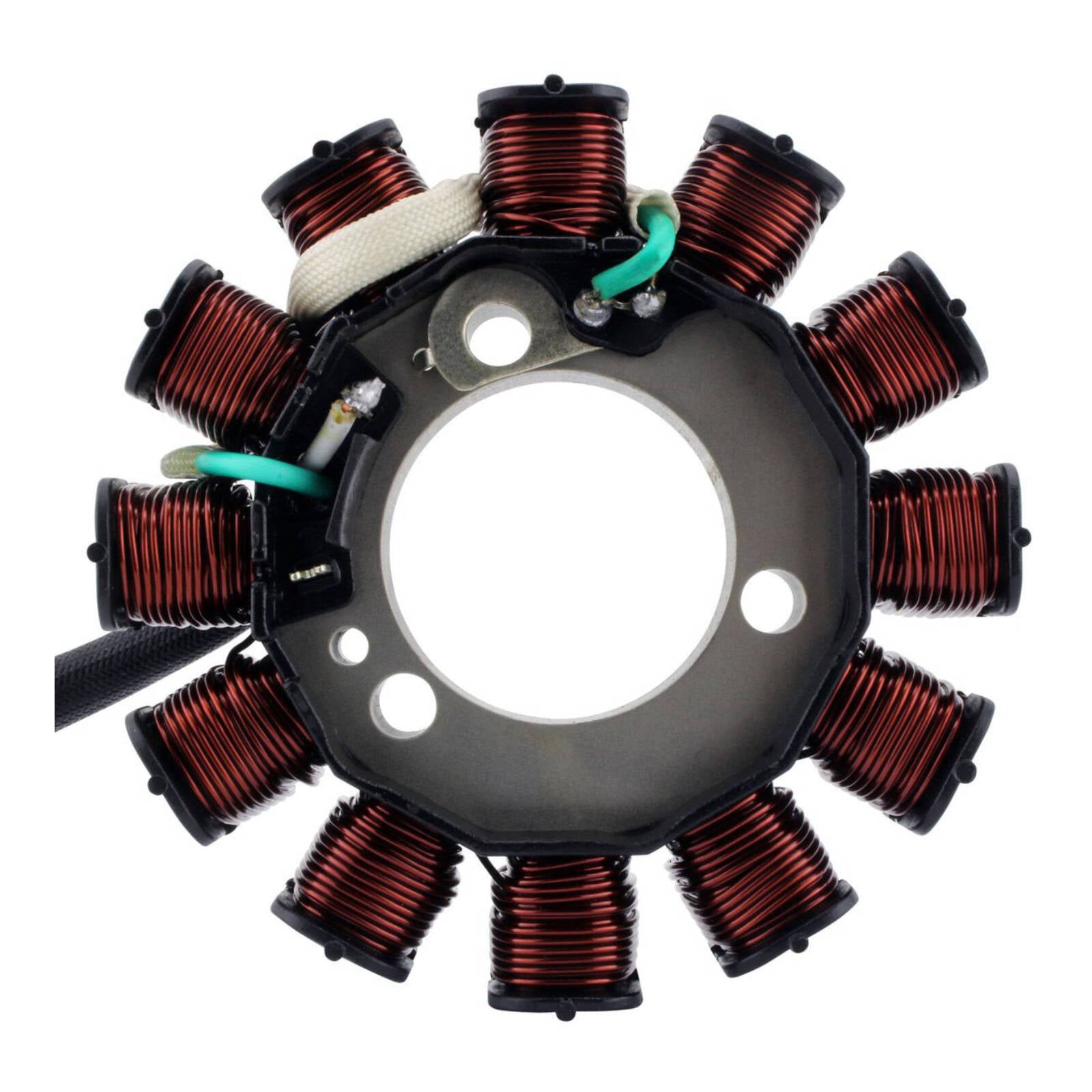

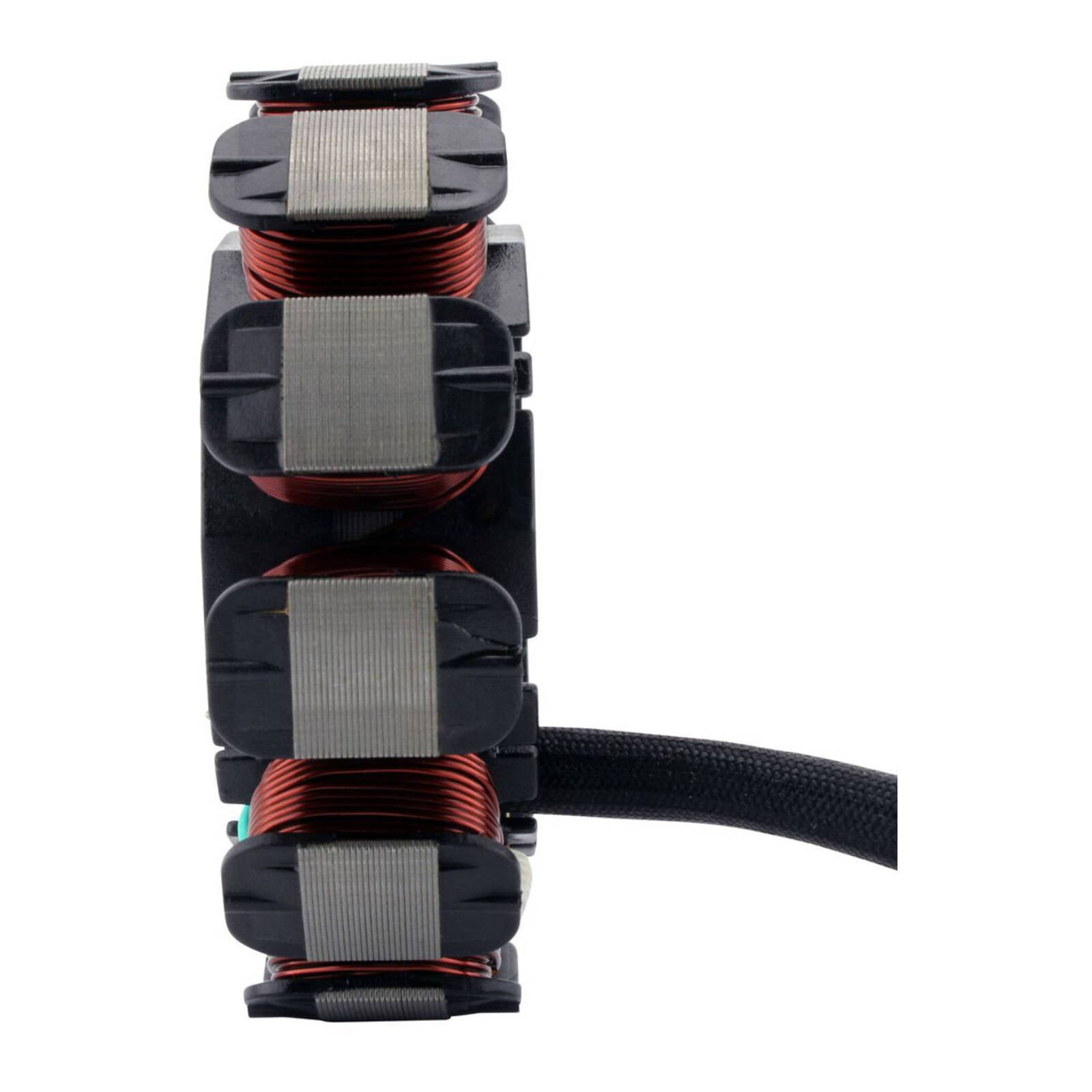

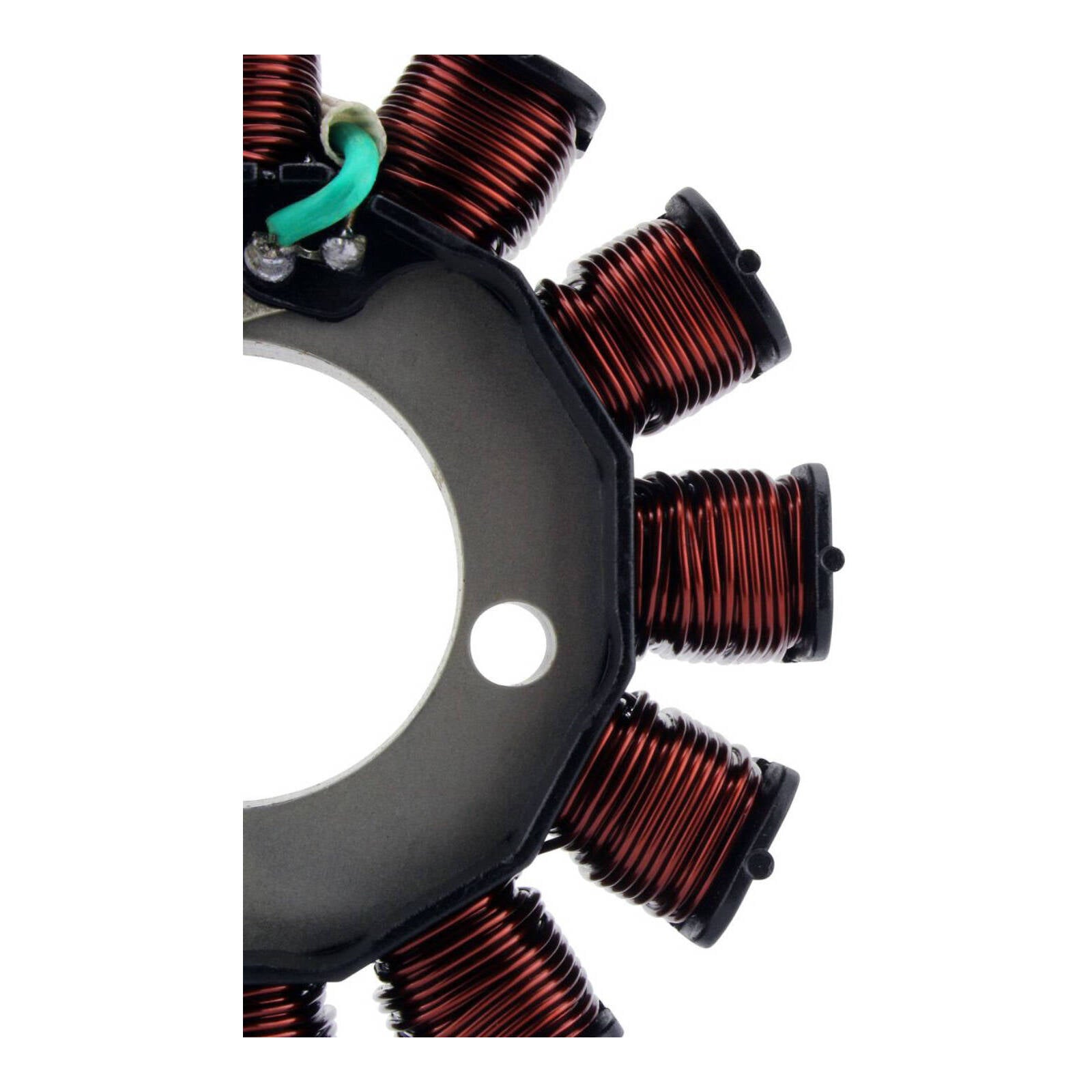

STATOR HON CBF 125 '09-13' CB125

RMSTATORSKU: RMS010106061
No reviews
Price:
$109.99
Stock:
Only 2 units left

Description

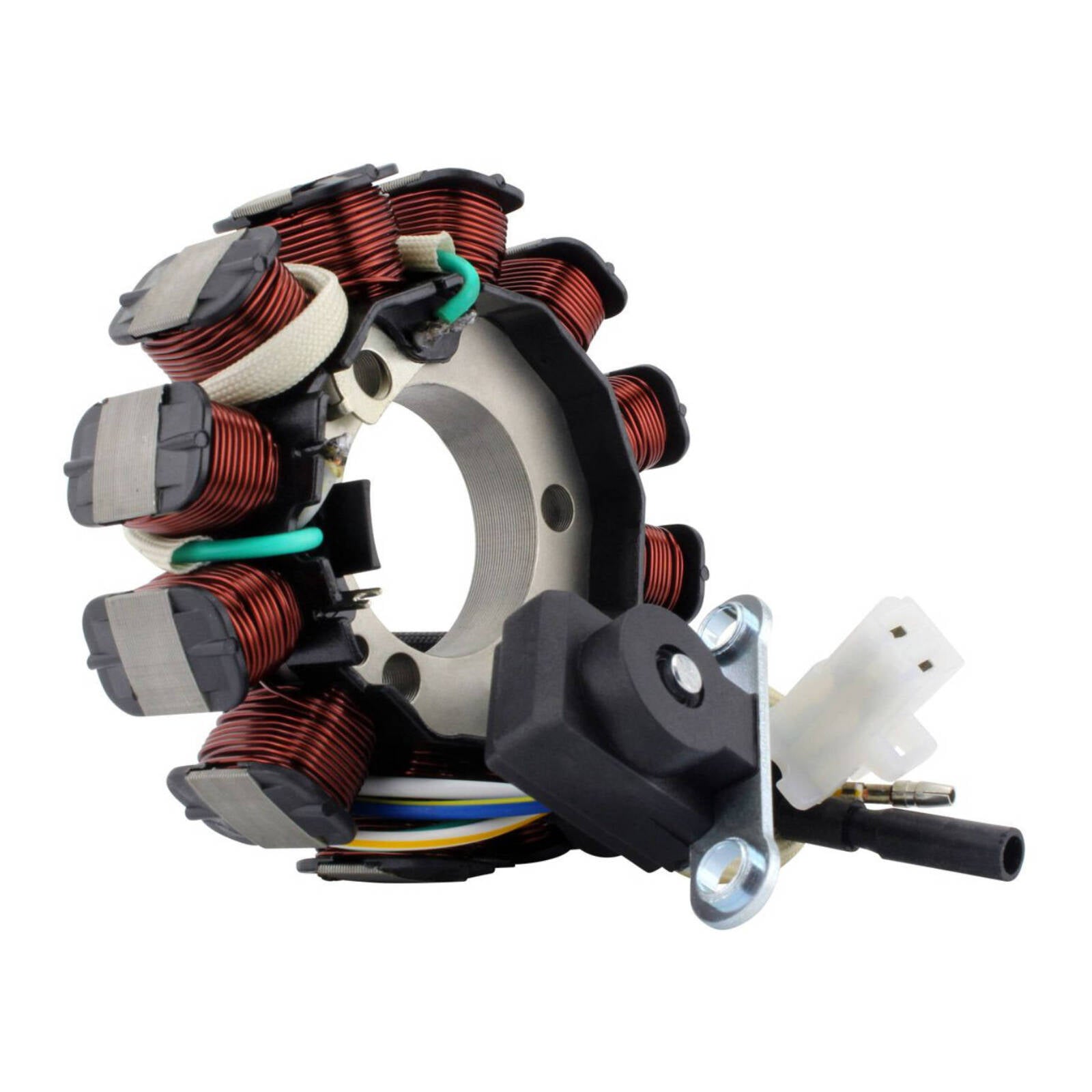

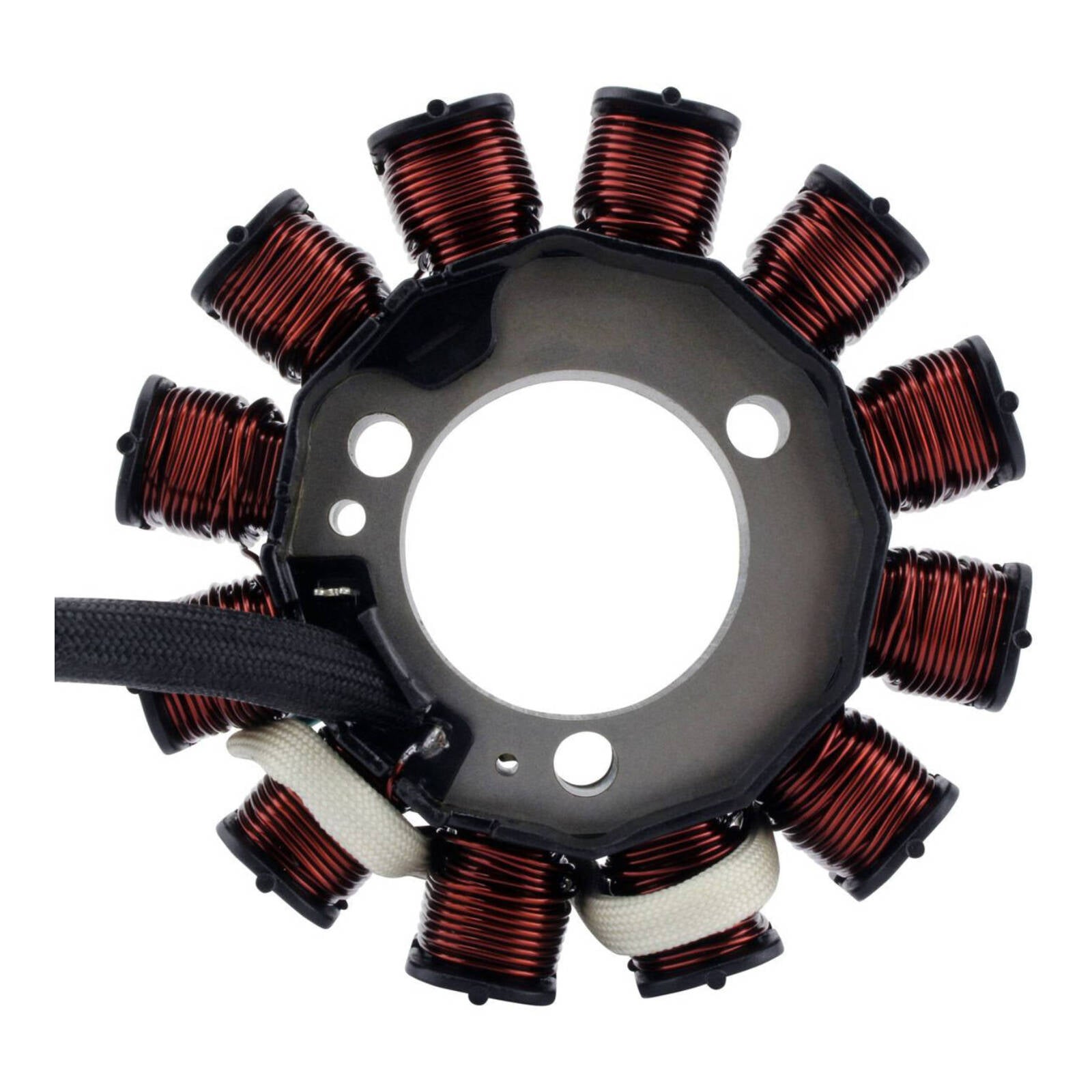

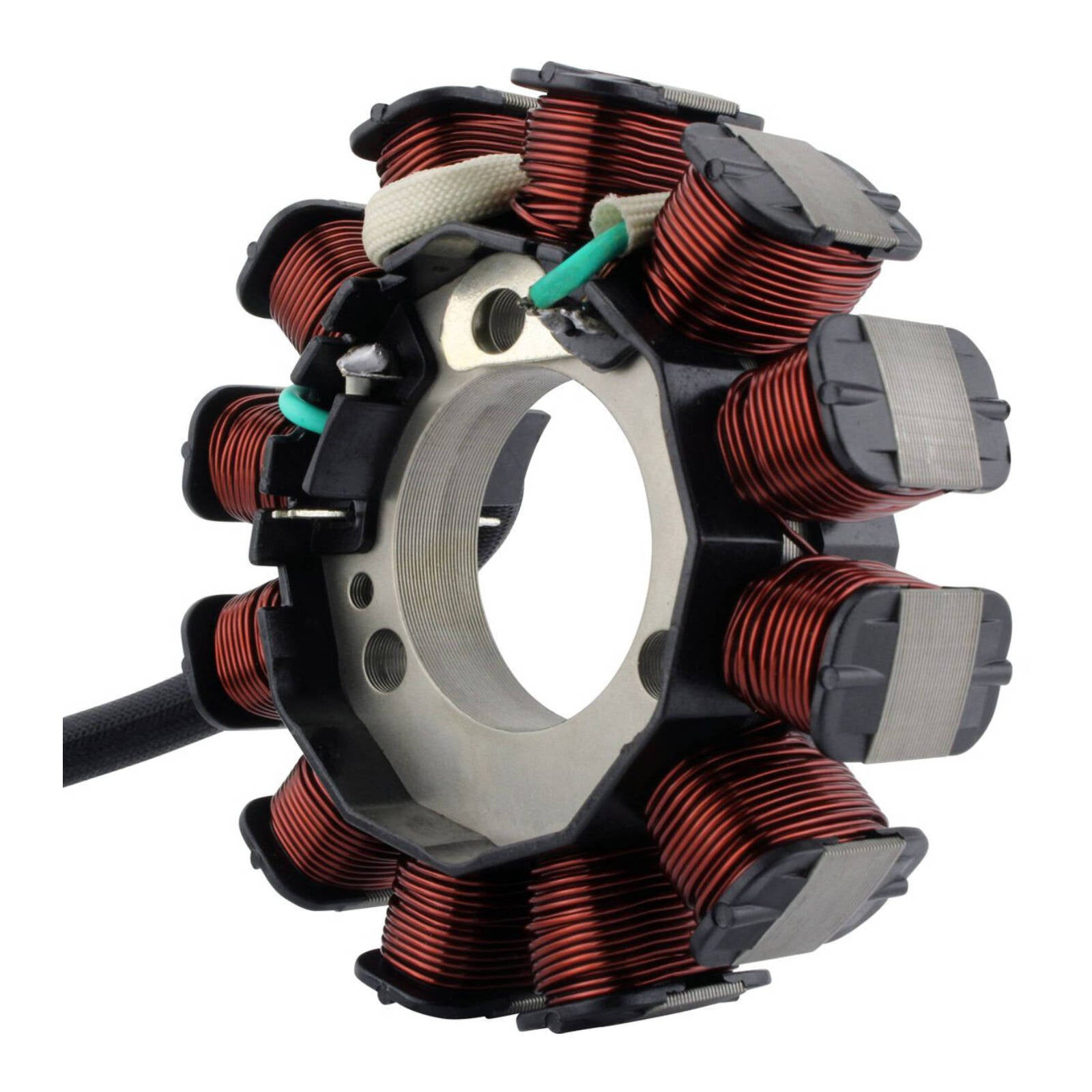

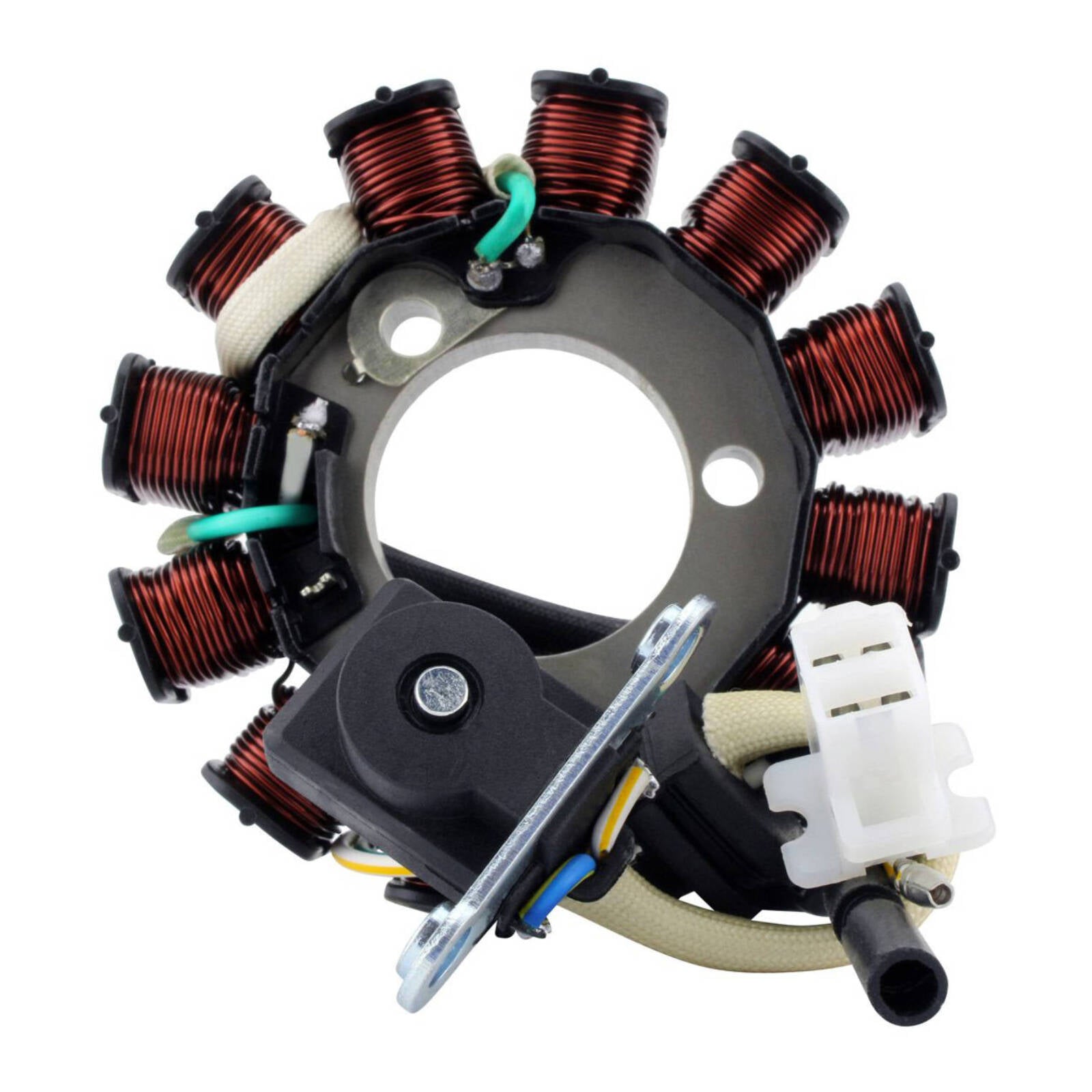

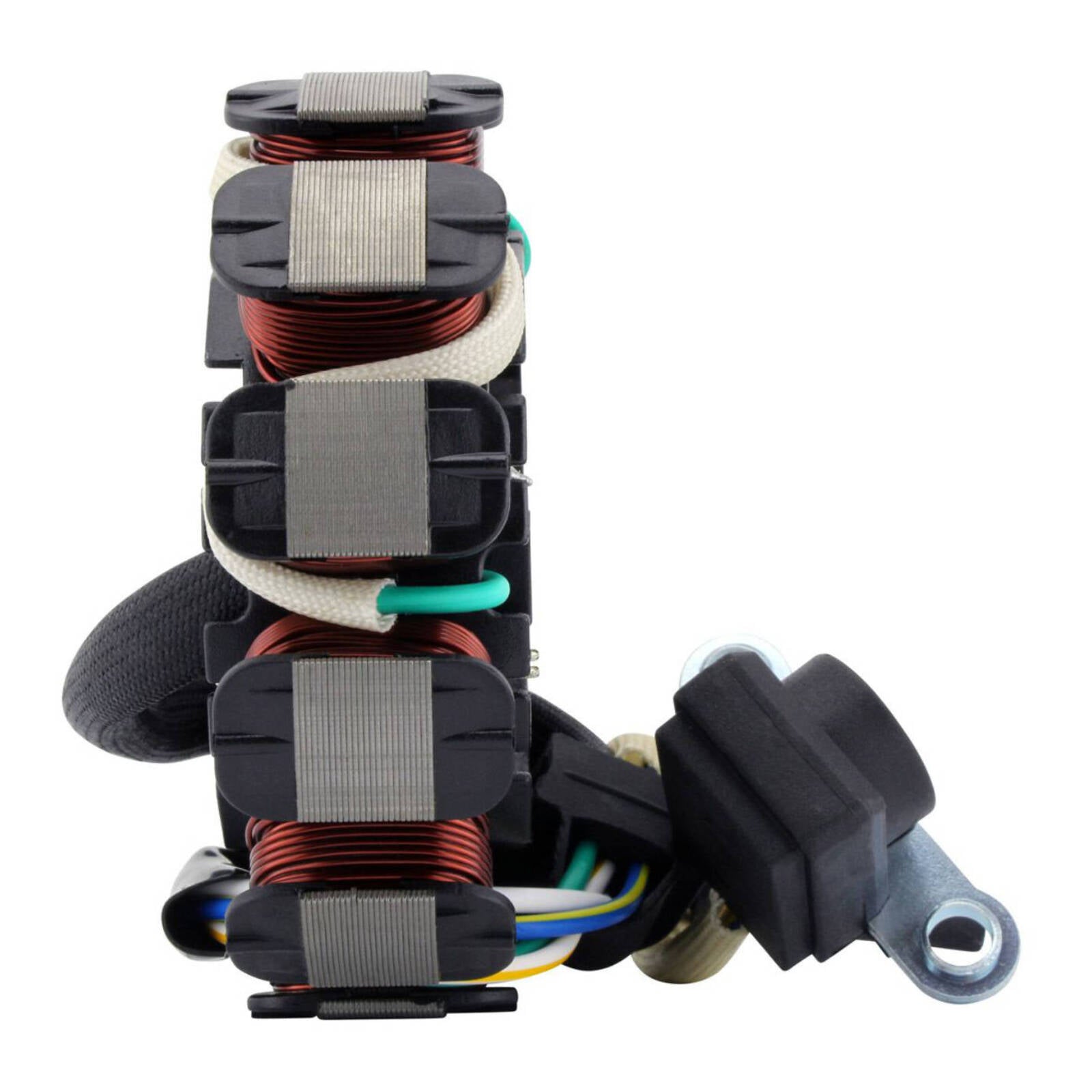

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.

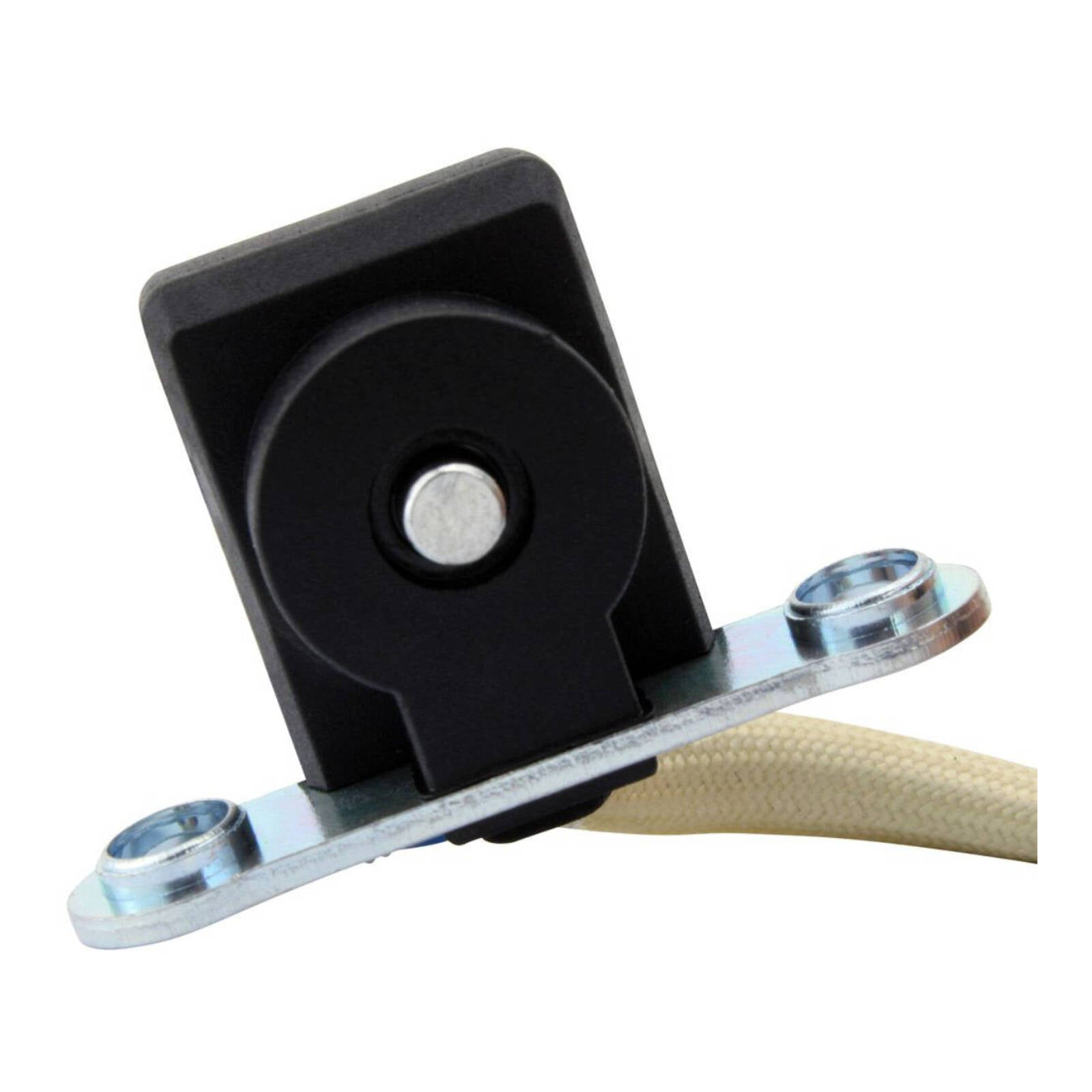

  • Pick up pulsar coil included

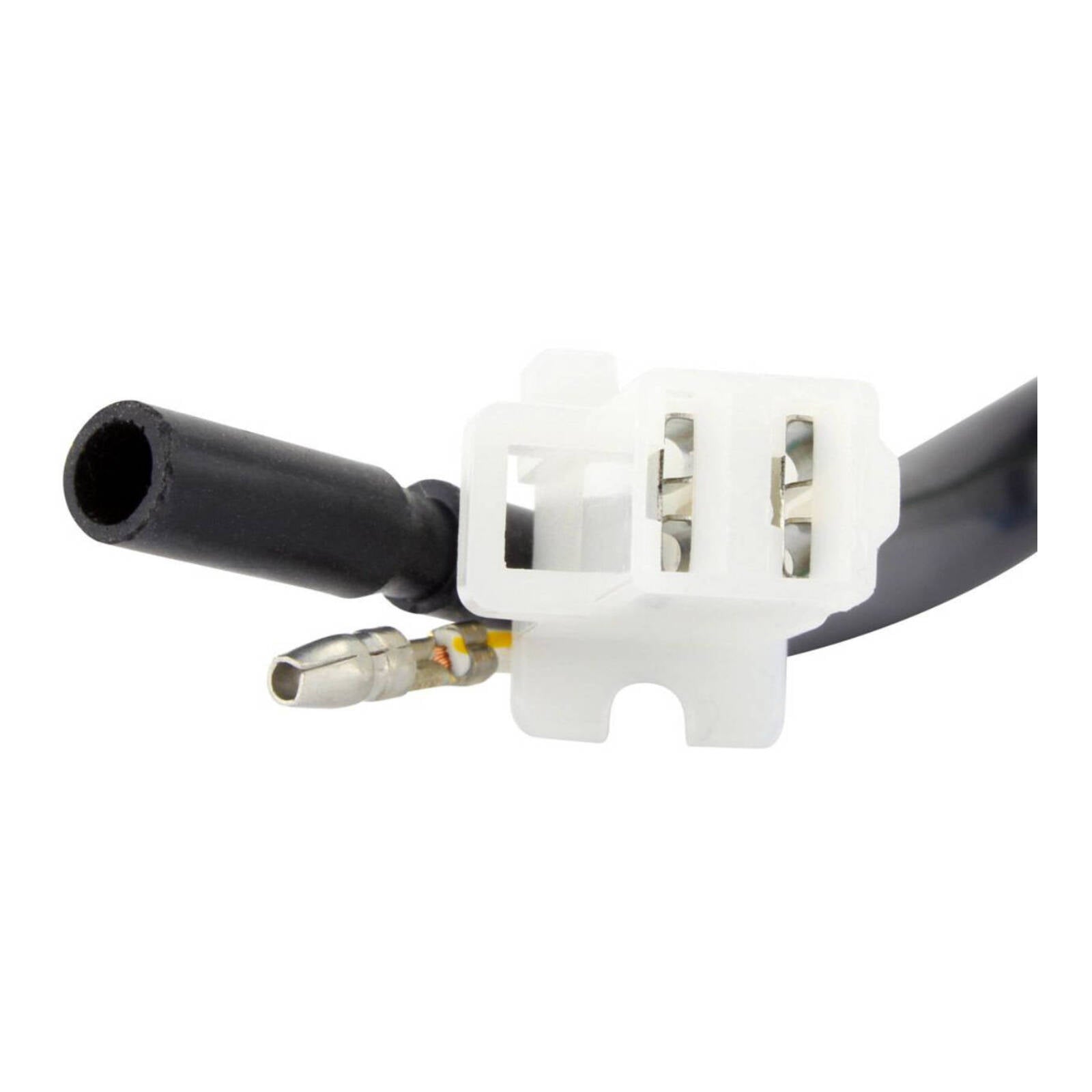

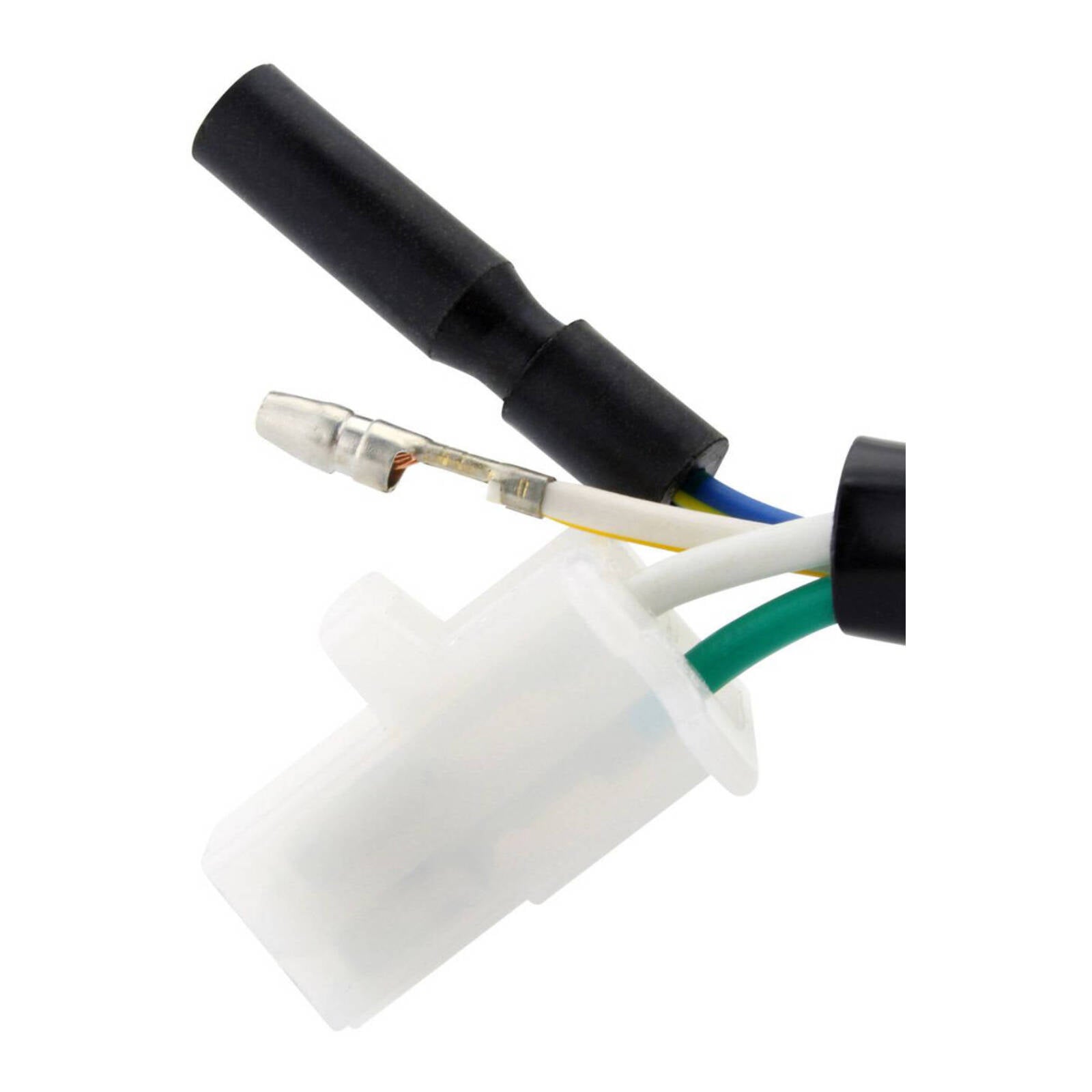

  • Connector included

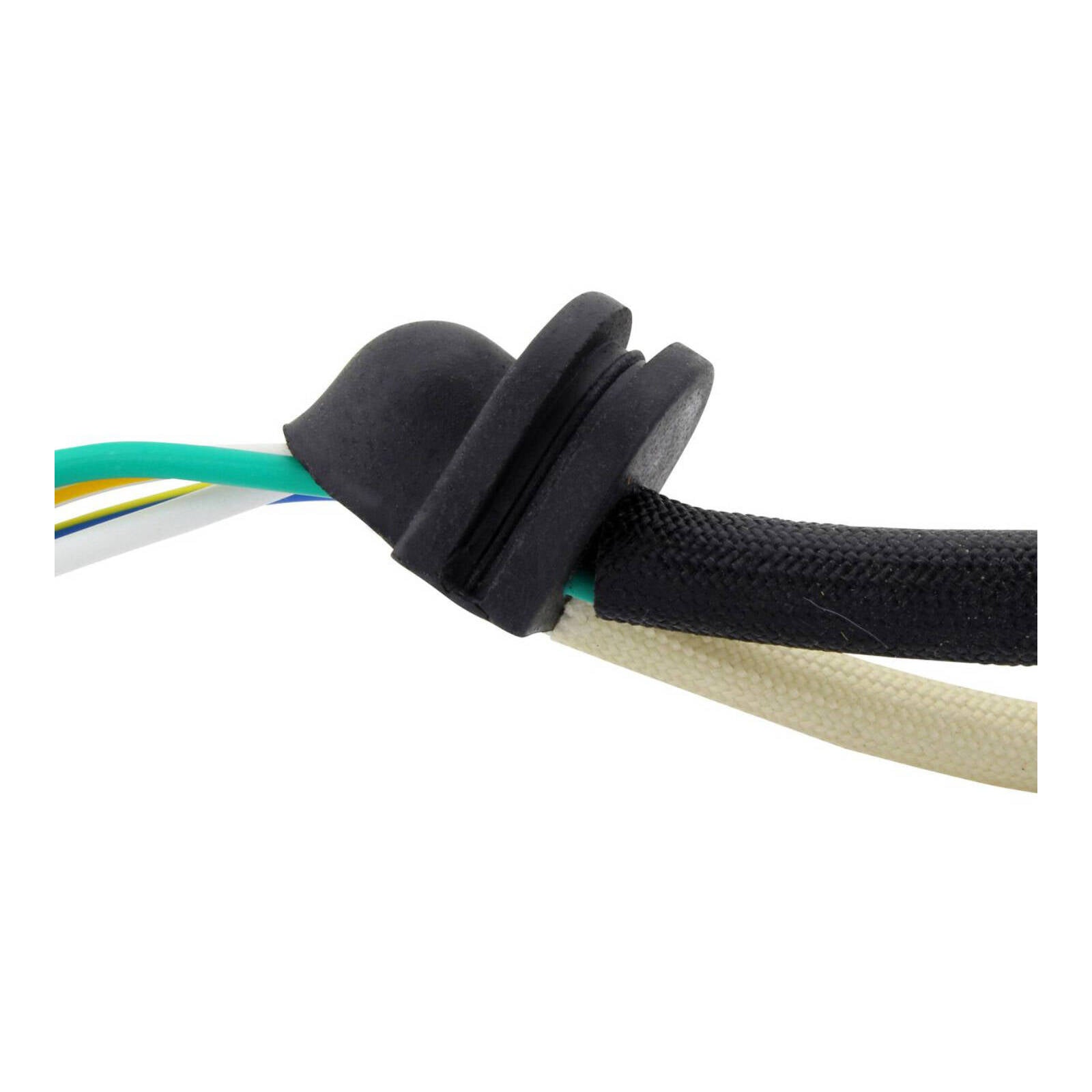

  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 92 mm
  • Thickness: 14 mm
  • Length of wires stator to grommet: 130 mm
  • Length of wires grommet to plug: 120 mm
  • Length of pickup coil's wire to grommet: 90 mm

    • Other specifications:

    • Number of wires: 4
    • Number of plugs: 3
    • Number of pins: 4
    • Number of poles: 12

    Wire-to-wire resistance:

    • Alternator White to Geen: = 0.9 ohms +-20%
    • Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
