Description
This convenient Denali lighting kit combines several high-quality Denali components including a wiring harness, light mount, and lights. It's designed to give you everything you need to equip your machine with an improved lighting setup and illuminate your riding experience.

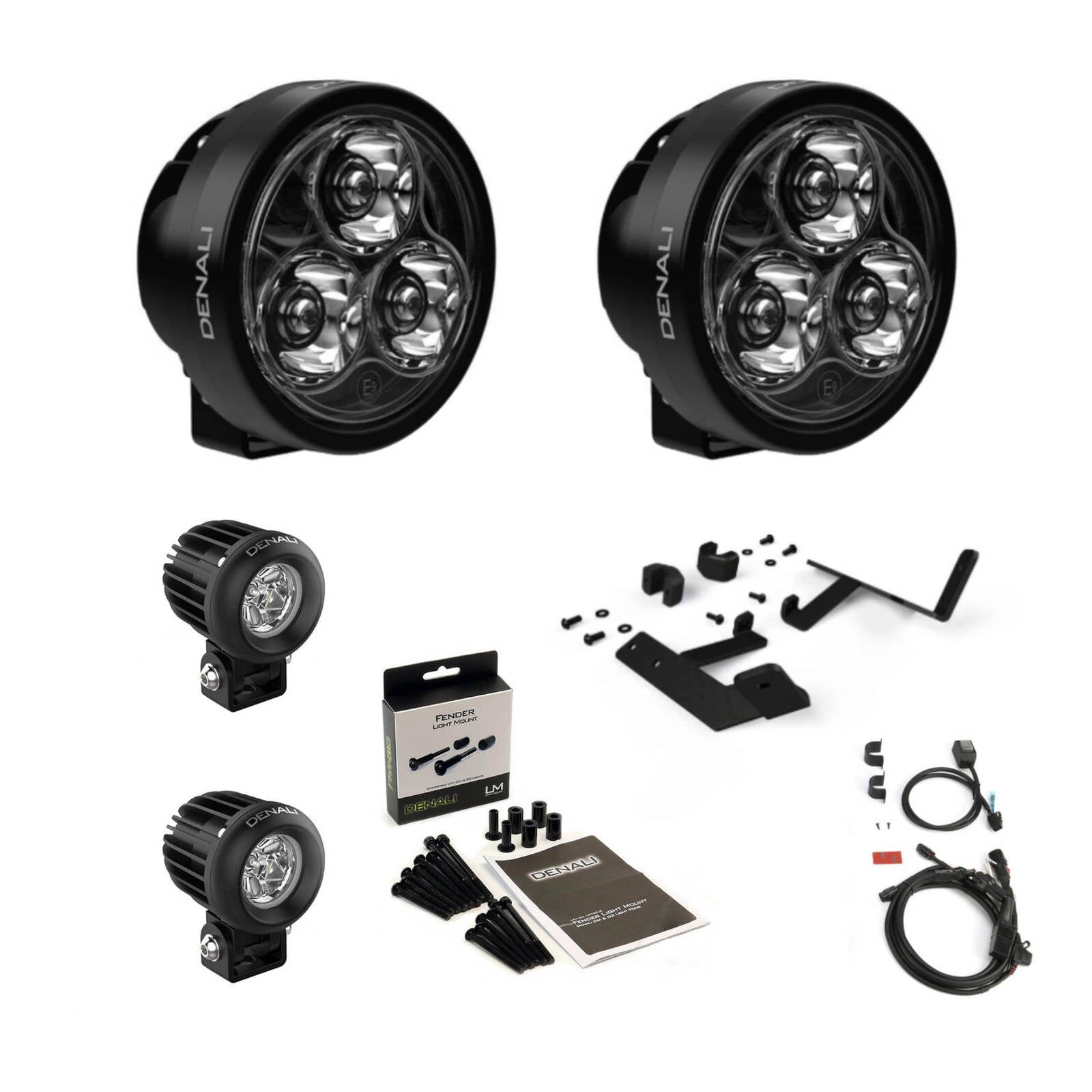

Kit contains:
1x DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) (SKU: DEDNLWHS10900)
1x DENALI DRIVING LIGHT MOUNT BRKTS KTM 790 ADV / ADV R '19-'20 (SKU: DELAH0410200)
1x DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] (SKU: DELAH0010700B)
2x DENALI D2 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (DEDNLD2050)
2x DENALI D3 LED DRIVING LIGHT - DATADIM™ TECHNOLOGY - SINGLE (SKU: DEDNLD3050)
DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) details:
This DENALI Premium Wiring Harness features high-quality waterproof components and is designed to power two DENALI LED Light Pods. It features low-profile, water-tight connectors and premium moulded wire to ensure moisture is kept out of the system. The harness includes a completely sealed, waterproof switch that was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It’s clever design can be either flush or bar mounted.
What’s In The Box?
- (x1) Premium Wiring Harness
- (x1) Single-Intensity Relay
- (x1) DrySeal™ ON-OFF Waterproof Illuminated Switch
- (x1) 7/8 inch Handlebar Switch Mount
- (x1) 1 inch Handlebar Switch Mount
- (x2) Self Tapping Screw
- (x1) Adhesive Pad
- (x4) Zip Ties
DENALI DRIVING LIGHT MOUNT BRKTS KTM 790 ADV / ADV R '19-'20 details:
This vehicle-specific driving light mount allows you to mount any DENALI driving light in the optimum location on your motorcycle. This kit includes sturdy anodised aluminium clamps and beefy powder-coated steel brackets with an M8 mounting hole and all necessary mounting hardware.
Vehicle Fitment
- KTM 790 Adventure 2019-2020
- KTM 790 Adventure R 2019-2020
- KTM 790 Aventure R Rally 2020-2020
DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] details:
This single point mount positions our smaller lights on the front fender to create the most low profile mounting option. This mount is compatible with our DM and D2 light pods.
DENALI 2.0 D2 LED LIGHT POD WITH DATADIM™ TECHNOLOGY details:
The D2 light was designed to create an impressive beam of light that is the perfect balance between night time distance and daytime conspicuity.
Features:
- High-Intensi ty Series Cree LEDs outputting 1095 lumens per pod
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
- Additional E-Mark Approved flood lens included
- Amber lenses available (sold separately) DNL.D 2.10100
Specifications:
- LED: (x1) 10 Watt Cree XPL HI
- Power Draw: 0.8 Amps
- Raw Lumens: 1095
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 2.2” Round x 2.4” Deep
- Pod Weight: 0.6 lbs
- IP67 Waterproof & Submersible
- E Mark Approved Flood Lens
What's in the box?
- (1x) LED Light Pod
- (1x) Spot Lenses (Installed)
- (1x) E-Mark Approved Elliptical Flood Lenses (Included)
- (1x) Hinge Mount with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
DENALI D3 LED DRIVING LIGHT - DATADIM™ TECHNOLOGY - SINGLE details:
Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod.The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.
Features
- TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
- High-Intensity Series Cree LEDs outputting 2100 lumens per pod
- DataDim™ 3-wire smart- dimming technology (compatible with all DENALI dimming controllers)
- DrySeal™ Submersible Waterproof light can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
- Low profile mounting bracket with stainless steel hardware included
Specs
- Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
- LED: (3x) 11 Watt Cree XP-P LEDs
- Power Draw: 36 Watts (3 Amps)
- Lumens: 2100
- DataDim™ Compatible: Yes
- Operating Voltage: 9-32V DC
- IP67 Waterproof and Submersible
