Description
The unique oversized reflector in the DR1 creates an industry-leading 1000- foot beam distance from the single pair of 10-watt LEDs. No other 10-watt LED even comes close. The DR1 is ideal for night riding conditions where maximum beam distance is desired. The included pair of True-Hybrid™ lenses carry an official E-Mark certification and create a more balanced combination of distance and width.
Denali's TriOptic™ Lens System means that each light pod has a factory-installed clear spot lens but also includes an optional flood lens to enable three different beam options when used as a pair (Spot, Flood, or Hybrid).
Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!
More Flexibility, Maximum Control
For 2022, Denali has expanded on its standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle and budget!
- Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single-intensity install.
- Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting.
- Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit.
- DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
- DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting, and even doubles as a battery voltage monitor!
DR1 Light Pod Features
- High-Intensity Series Cree LEDs outputting 2190 lumens per pair.
- TriOptic™ Multi-Beam Lens System includes Spot, Flood, and Hybrid beam options in one pair of pods.
- DataDim™ equipped light pods enable plug-and-play connection, and integrated dimming, with DENALI dimming and lighting controllers.
- DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments.
- Impact PC™ Polycarbonate bezels won't crack, fade, or corrode like traditional aluminium bezels.
- LiveActive™ Thermal Management keeps the LEDs cool, preventing the loss of light output from overheating.
- A low-profile mounting bracket with stainless steel hardware is included.
- Additional pair of E-Mark-approved spot lenses included.
- Interchangeable lenses available in Clear, Amber, and Selective Yellow.
Pair Specs:
- LED’s: (2x)10 Watt Cree XPL HI
- Power Draw: 1.6 Amps
- Beam Distance (Spot): 1000 Feet
- Beam Width (Spot): 75 Feet
- Raw Lumens: 2190
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 3.7” Round x 3.8” Deep (each)
- Pod Weight: 1.45 lbs (each)
- IP67 Waterproof & Submersible
- E Mark Approved Hybrid Lenses

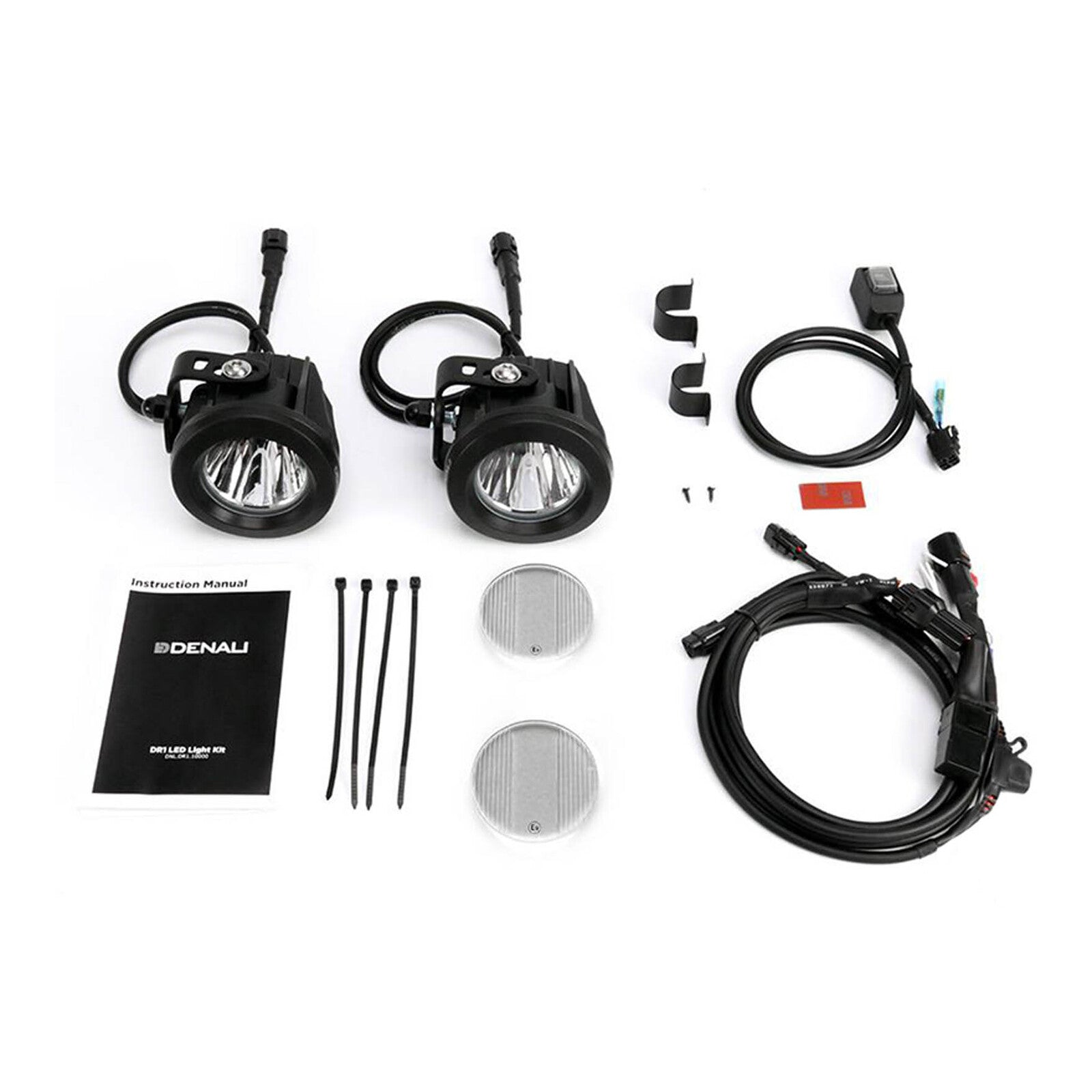

Includes:
- x2 DEDNLDR1050 - Denali DR1 LED Light Pod - DataDim™ Technology- Single
- x1 DEDNLWHS10900 - Denali 2.0 Premium Wiring Harness Kit (REV08)
